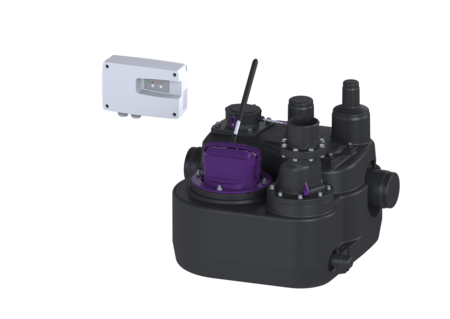

Lifting station Aqualift L
Mono, SPF 2900, 400 V
KESSEL Lifting station Aqualift L Mono, wastewater for wastewater with and without sewage, control unit Connect control unit function With alarm message, Single unit, with a submersible SPF 2900 pump
- Variable connection options for inlets
- Integrated backflow preventer
- Powerful pump with multi-vane vortex impeller for maximum reliability
| Item no. | 28898 |
|---|---|
| GTIN | 4026092095782 |
| Price group | 20 |
Lifting station Aqualift L Mono, SPF 2900, 400 V
The lifting station for faecal and faecal-free wastewater is equipped with one or two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has a closed pump tank with a screwed-on access cover. The station is controlled by a user-friendly control unit. Variant Type of system: Single unit Installation: Dry installation Pump control: Control unit Backflow preventer: integrated General characteristics Colour: black Standard: EN 12050-1 Type of wastewater: for wastewater with and without sewage Installation situation: free-standing installation Delivery state: installation-ready System type: Mono ATEX: no Dimensions Net weight: 27 kg Gross weight: 27 kg Length: 565 mm Width: 624 mm Height: 483 mm Packaging dimension: length: 610 mm Packaging dimension: width: 610 mm Packaging dimension: height: 490 mm Tank/drain body Pressure pipe connection (DN): 80 Pressure pipe connection (OD): 90 mm Connection for manual diaphragm pump (DN): 32 Venting connection (DN): 70 Inlet nominal size (DN): 100 mm Number of inlets: 3 Pumping volume: 20 l Tank volume: 50 l Socket version: including spigot and socket Pumping device Pump: SPF 2900 Number of pumps: 1 Weight, pump: 10,5 kg Operating voltage: 400 V Rated current: 5 A Protection class: I Insulation class: F Protection class (pump): IP 68 (3m/48h) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 44 m³/h Max. pumping height: 14 m Speed: 2700 U/min Power P1: 3,1 kW Power P2: 2,4 kW Operating mode: S3 - 50 % Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN8-F 6G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 40 mm Length of mains cable for pump: 5 m Control Control unit: Connect Control unit function: With alarm message Motor protection switch: yes Alarm sensor: Float switch Type of level measurement: mechanical Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 400 V Potential-free contact: optional GSM interface: no USB interface: no Log book function: no Multi-line display: no Battery buffering: yes Self-diagnosis system (SDS): yes Warning equipment version: acoustic and optical signal Type of fuse required (electrical protection): C 16 A
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Flexible coupling DN 32, L: 200 mm | 28660 | Show |
 | Flexible coupling DN 70, L: 200 mm | 28661 | Show |
| Flexible coupling DN 80, L: 200 mm | 28662 | Show |
 | Flexible coupling DN 100, for pressure pipes made of PE | 28663 | Show |
 | Manual diaphragm pump for manual pumping of wastewater | 28680 | Show |
 | Shut-off valve DN 80, Polymer, horizontal | 28682 | Show |
 | Shut-off valve DN 100, Polymer, horizontal | 28683 | Show |
 | Shut-off valve DN 100, Polymer | 28698 | Show |
 | Shut-off valve DN 150, Polymer | 28699 | Show |
 | Flange joint DN 100, for polymer fittings | 28712 | Show |
 | Shut-off valve DN 80, Polymer, vertical | 28715 | Show |
 | Hole saw for DN 100/125/150 | 500100 | Show |
| Hole saw for DN 50/70/100 | 500101 | Show |
 | Potential-free contact Extension set for control units Basic | 80074 | Show |
 | Seal for pipe penetration, DN 50 | 850114 | Show |
 | Seal for pipe penetration, DN 70 | 850116 | Show |
 | Seal for pipe penetration, DN 100 | 850117 | Show |
 | Seal for pipe penetration, DN 125 | 850118 | Show |
 | Seal for pipe penetration, DN 150 | 850119 | Show |
| Title | Item no. | ||
|---|---|---|---|
| Flexible coupling DN 80, L: 200 mm | 28662 | Show |
 | Flange joint DN 80, for polymer fittings | 28713 | Show |
 | Pump flange with seal and screws | 680537 | Show |
 | Cleaning cover with seal | 680538 | Show |
 | Float switch set with seal | 680539 | Show |
 | Seal set 3 x DN 100, 1 x DN 125 | 680540 | Show |
 | Non-return flap with bracket | 680548 | Show |
 | Seal for flange, d: 236 mm | 680549 | Show |
 | Control unit Connect Mono, 400 V | 681093 | Show |
 | Control unit Connect Duo, 400 V | 681094 | Show |
 | Adapter plate for float switch | 681183 | Show |
 | Locking lever for adapter plate, 2 no. | 681184 | Show |
 | Impeller for pump SPF 2900 | 681185 | Show |
 | Replacement cover for pump SPF 2900 | 681187 | Show |
 | Replacement handle for pump | 681188 | Show |
| Capacitor for pump 230V | 681189 | Show | |
 | Flap housing for Mono systems, | 681190 | Show |
 | Flap housing for Duo system | 681191 | Show |
 | Flap support for flap housing Mono and Duo | 681192 | Show |
 | Replacement pump SPF 2900 400 V, S3, 5 m cable | 681247 | Show |
| Manuals | |
|---|---|
| CAD Data | |
| Test Reports and Certificates | |
| Declaration of Performance | |
| Declaration of Conformity |
- CE marking (ce_kennzeichnung):
yes
- Type of wastewater (abwasserart_de):
for wastewater with and without sewage
- TÜV test mark (pruefzeichen):
ID 1111241940
- Installation situation (einbausituation):
free-standing installation
- Pump (pumpe): SPF 2900
- (ausfuehrung):
- Operating voltage (betriebsspannung): 400 V
