The Universal basement drain

The versatile drain with backwater valve.

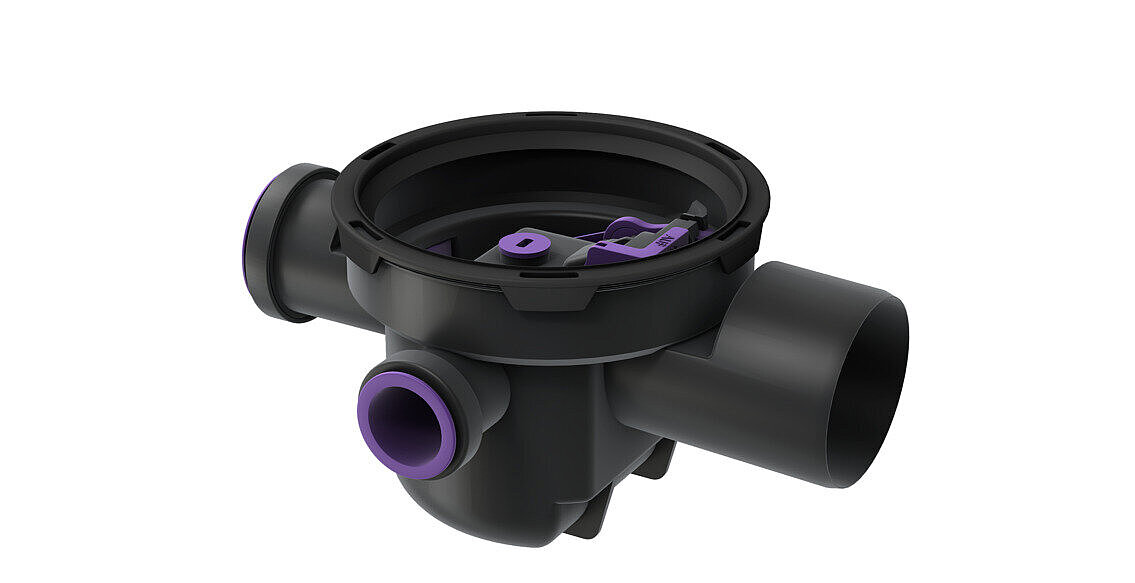

It couldn’t be more flexible. The Universal is a versatile basement drain for faecal-free wastewater. It is equipped with a backwater valve and a manually lockable emergency closure. It has three inlets as a standard feature (two in DN 50 and one in DN 70). The telescopic upper section is also rotatable, tiltable and height-adjustable. This ensures it provides maximum freedom for the design and installation.

The Universal is optionally available with a slotted cover made of polymer or stainless steel.

Possible applications

The Universal is the ideal basement drain for new buildings: It is suitable both for installation in watertight cellars and for alternative waterproofing layers – thanks to an intermediate section and waterproofing membrane. Three horizontal inlets for drainage points such as showers, washbasins or washing machines provide more freedom for the planning.


How it works

The basement drain with an integrated backwater valve reliably protects against wastewater flowing back from the sewer. Drainage points connected to the drain, such as showers, washbasins and washing machines, are also protected. The backwater valve can be locked manually during heavy rain or in the event of an extended absence.

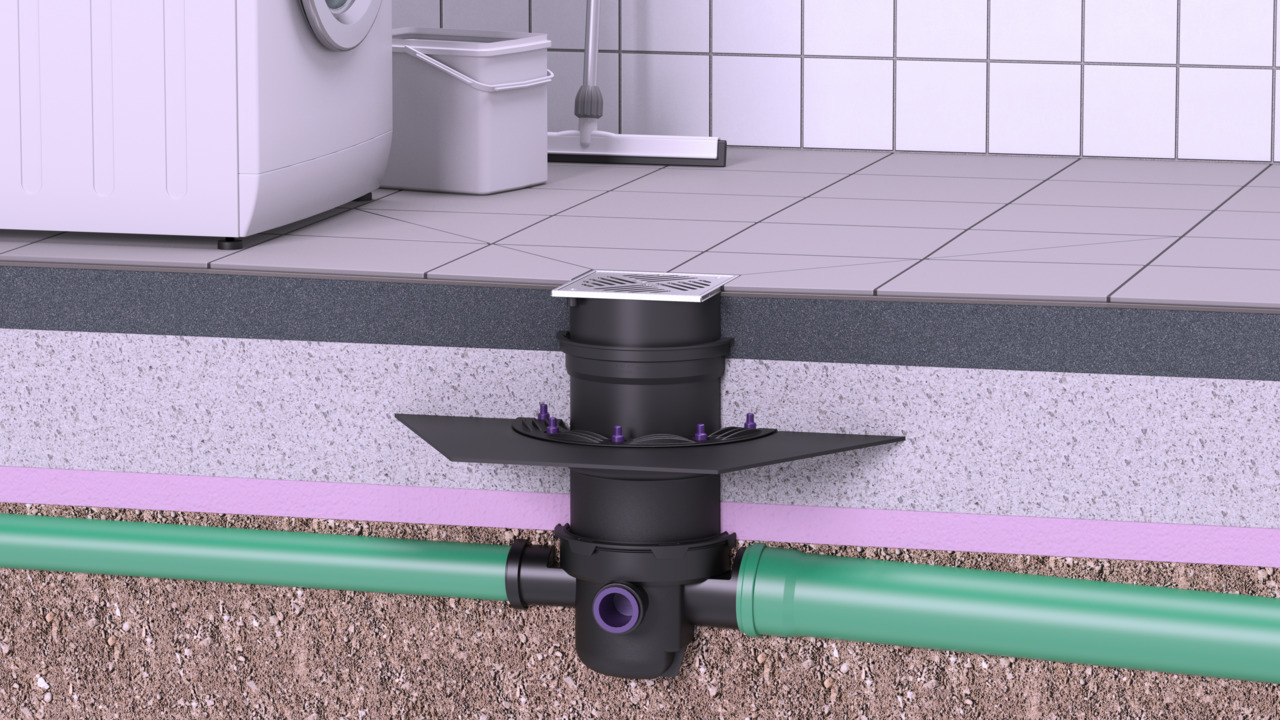

Installation in waterproof concrete

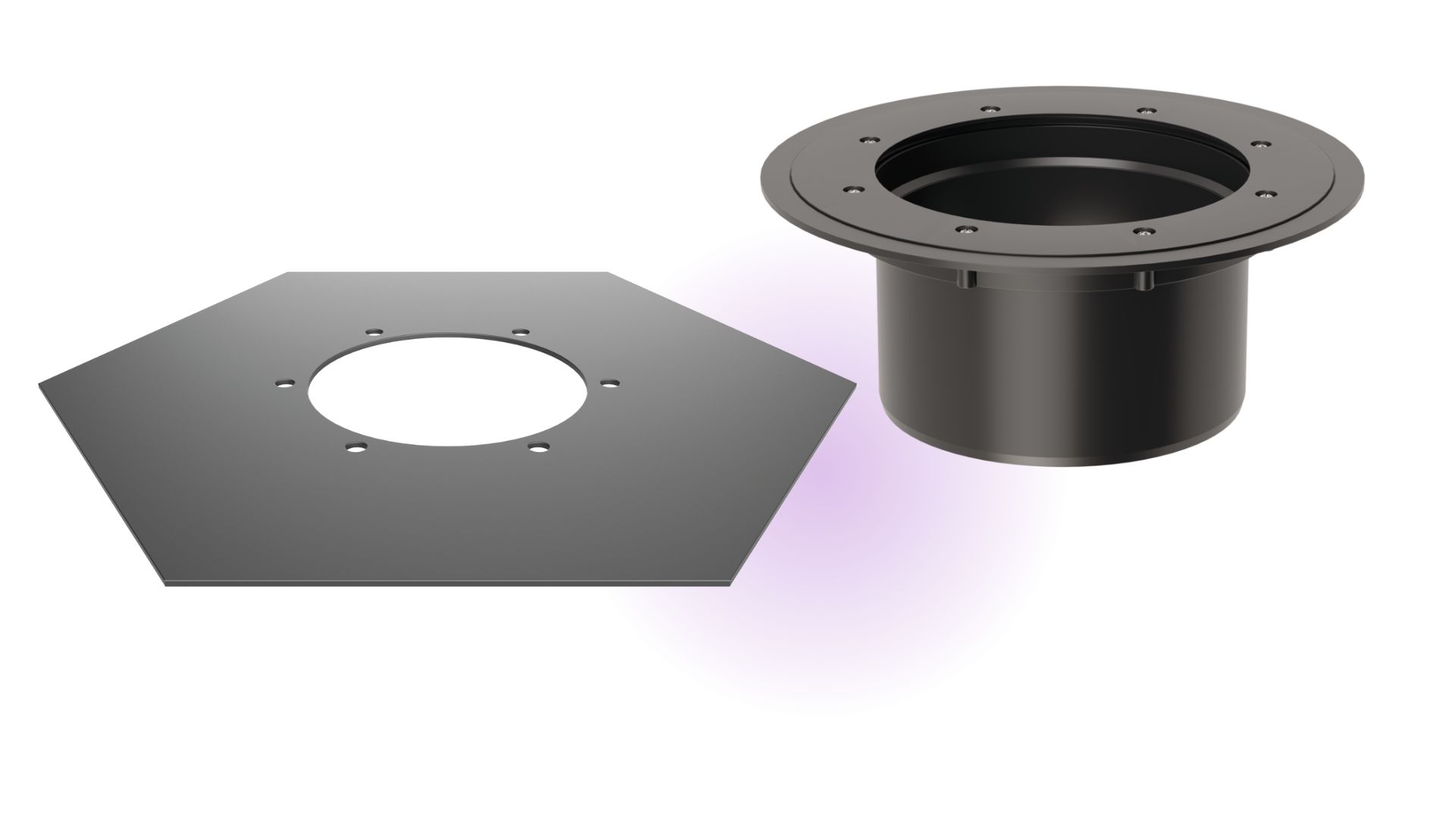

The basement drain can also be installed in watertight basements with an optional intermediate section with a pressure sealing flange and barrier membrane. It is also suitable for joint sealing.

The Universal basement drain

With backwater valve

  Load classNominal size (DN)Odour trapBackwater protectionCover material Item no.
2760027600 100 included Type 5 27600
Show
2761127611 K 3 (EN 1253-1) 100 included Type 5 Polymer 27611
Show
2762127621 K 3 (EN 1253-1) 100 included Type 5 Stainless steel 14301 27621
Show

Not found the right product?

In addition to our standard drains and channels, we also develop customised solutions at the customer's request for special demands in terms of form, function and dimensioning.

Customised solutions
