EasyStore Collection Tank

Hygienic and virtually odourless storage of food waste.

All our EasyStore collection tanks store shredded food waste in a hygienic and virtually odourless manner. The connection to a dedicated ventilation pipe and the rigidity of the PE material prevent the tank from ‘collapsing’. After disposal, the waste is then processed in biogas plants in an environmentally sound manner.

The freestanding EasyStore collection tank adapts to your needs: it is available in square or round versions. The tank dimensions can be chosen freely, as can the volume, which can range from 1 to over 50 cubic metres. Depending on the spatial conditions, the EasyStore collection tank can be prefabricated at the factory or welded together on site.

Furthermore, the EasyStore collection tank can also be subject to a full underground installation – it is groundwater resistant even at great installation depths. The ground remains accessible to lorries. And the pump? It is installed dry within the same tank. You can rely on our leading technical expertise in this regard.

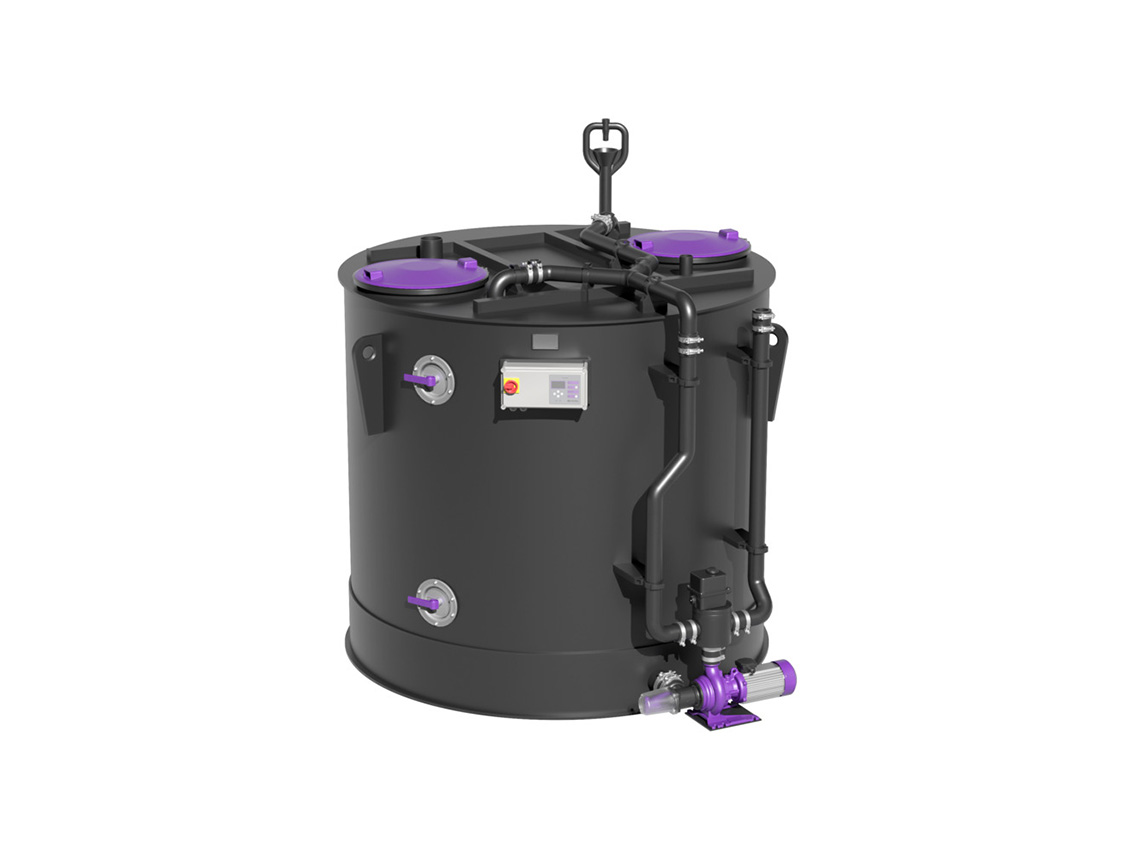

EasyStore free freestanding wet waste tank in a round design, 2,000 to 5,000 litres

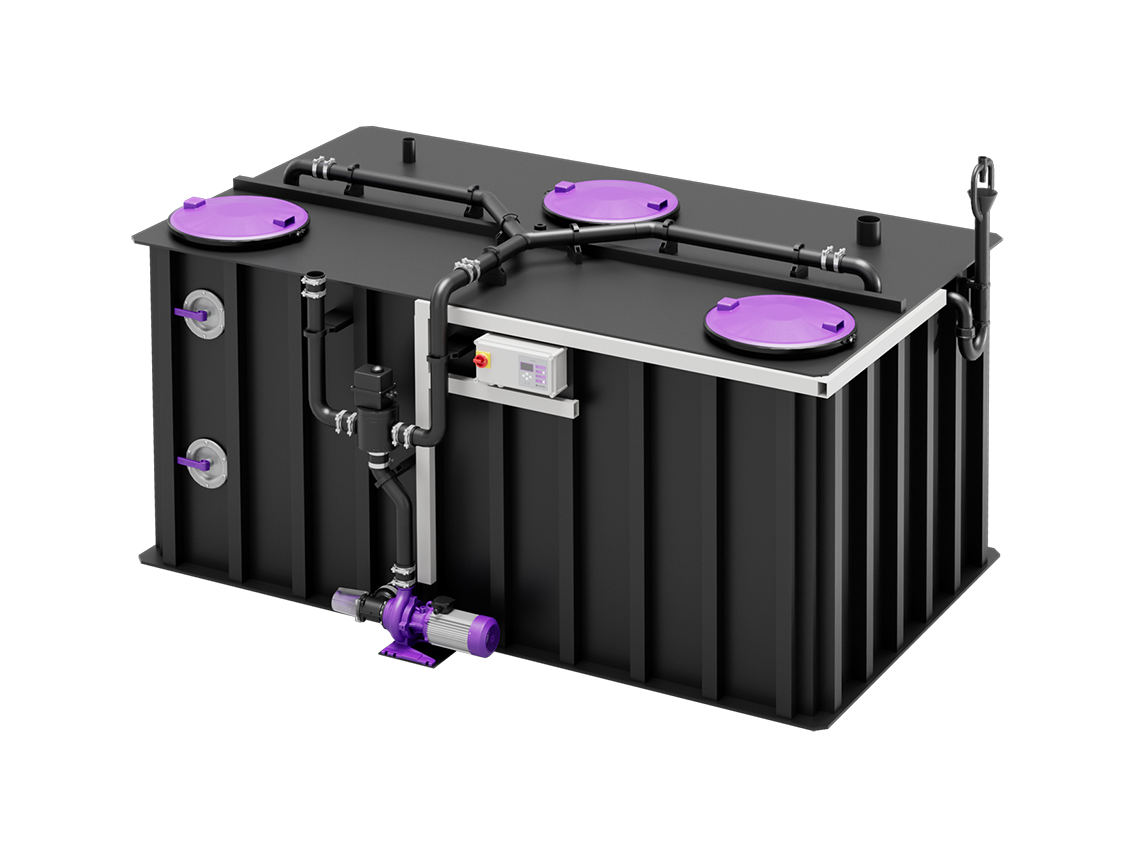

EasyStore free freestanding rectangular wet waste tank, 2,000 to 17,500 litres

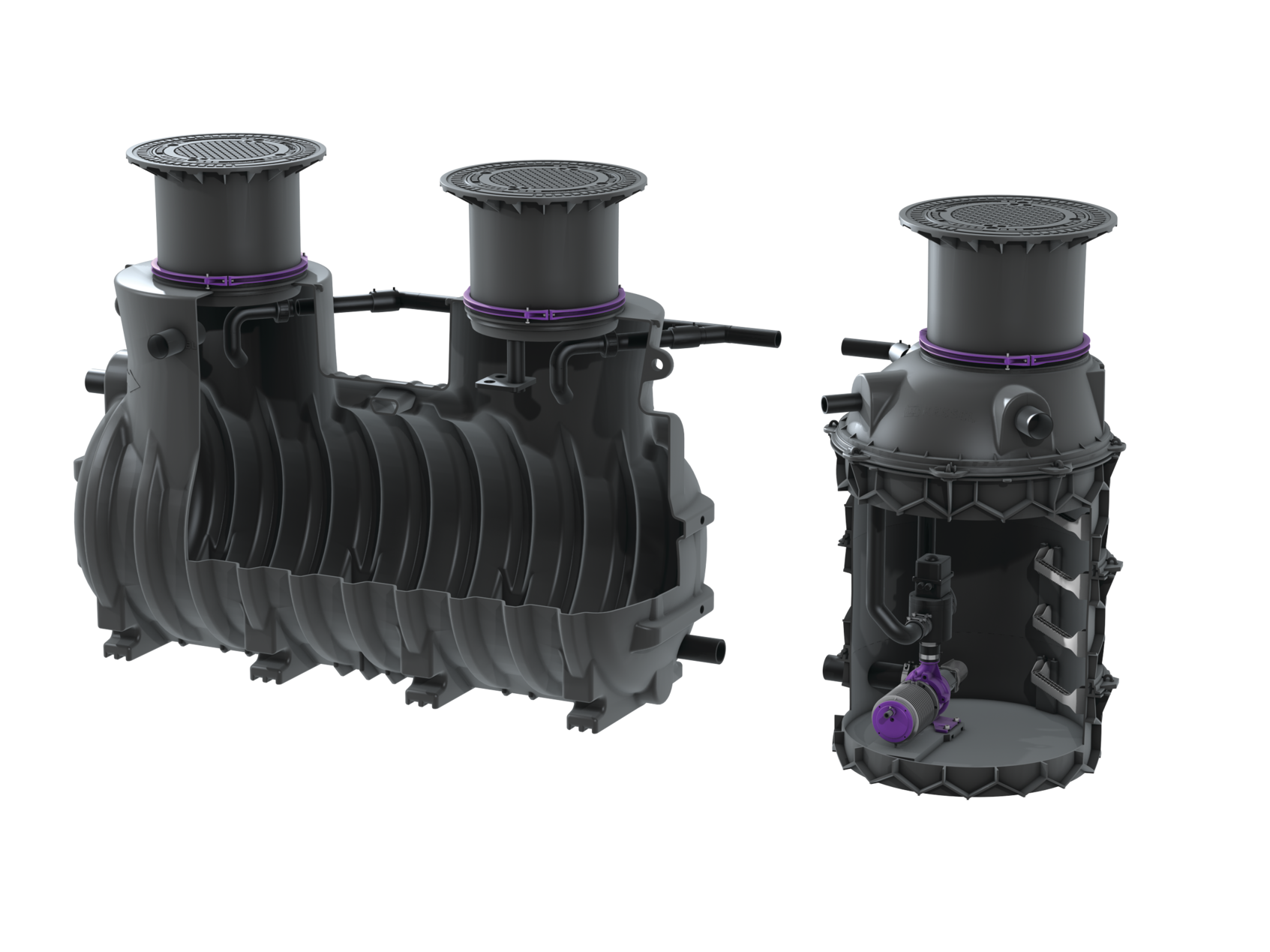

EasyStore ground-mounted wet waste tank, 2,500 to 9,000 litres

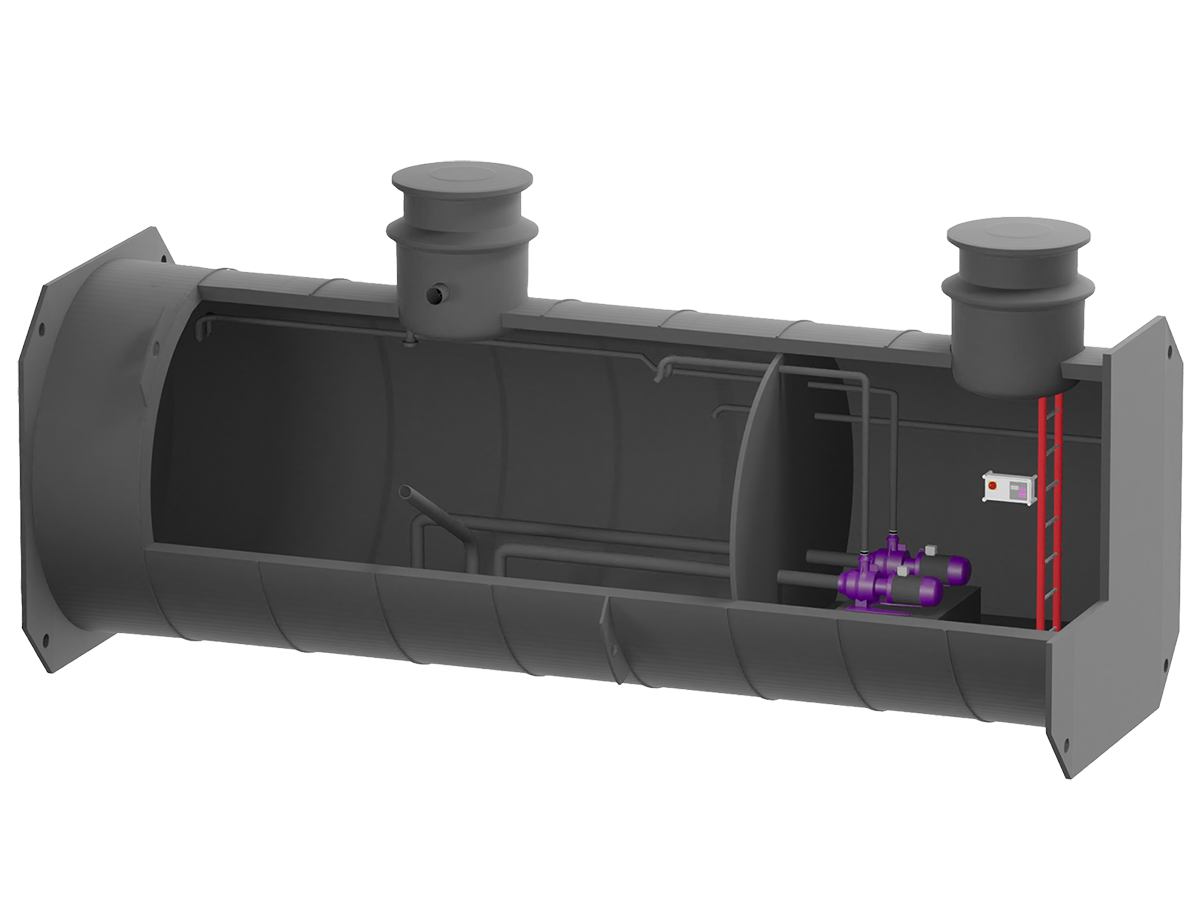

EasyStore ground-mounted wet waste tank, 5,000 to 20,000 litres

Application possibilities
Product advantages
Video
Article overview

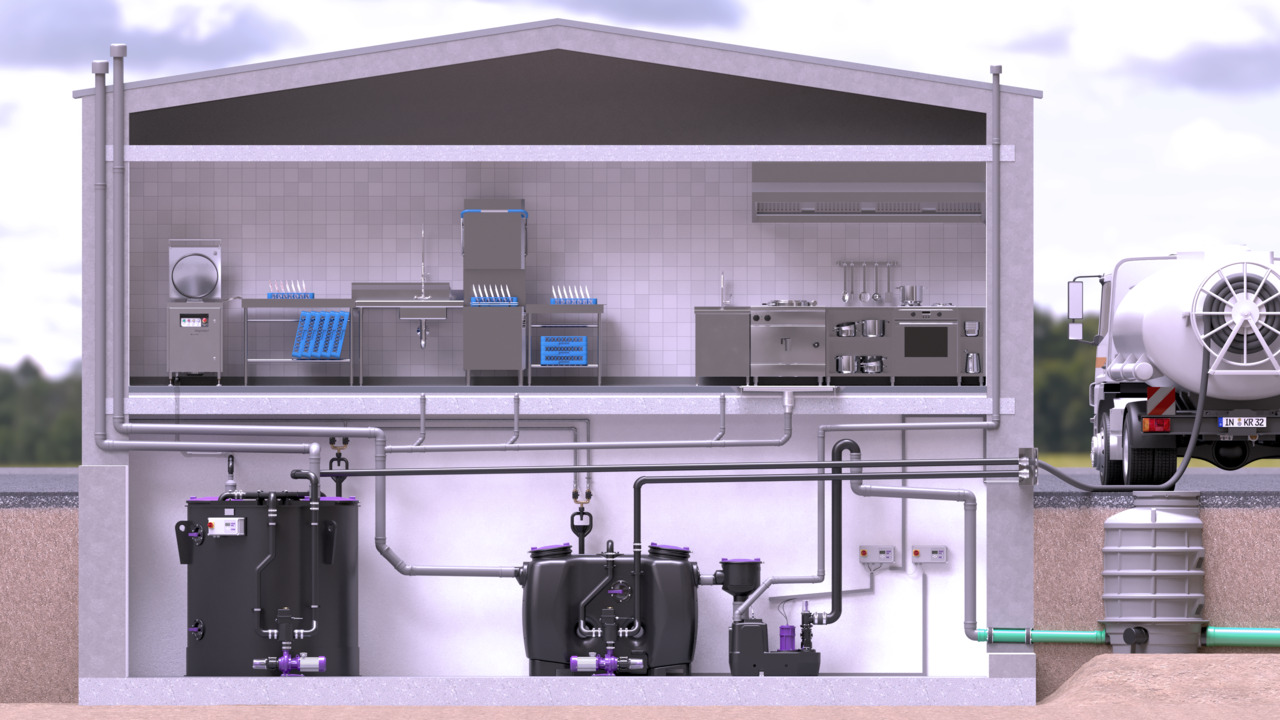

Food waste collection systems with a freestanding collection tank inside the building

Possible applications

Shredded food waste is stored in collection tanks until its disposal takes place. It remains there for up to six weeks, which is why regular circulation (homogenisation) is all the more important. The tanks can be installed as freestanding units inside the building or buried in the ground.

Disposal systems for EasyStore collection tanks

100% corrosion-free – 20-year guarantee

Our tanks are made of polyethylene. This makes them resistant to aggressive fatty acids and therefore particularly durable. You can rely on KESSEL quality: going beyond the legal requirements, we offer a 20-year guarantee covering tightness, fitness for purpose and structural integrity of tanks and upper sections.

Further benefits

Tanks made from durable PE
20-year warranty on the PE material
Level monitoring linked to a feed station
Online monitoring possible
Sloping base for minimal disposal residues
Homogenisation via shredder pump
Pump also suitable for waste disposal support
On-site welding possible
Variants for underground installation available for a wide range of applications
Customised tank construction possible

EasyStore free

Waste disposal option: Auto Mix & Pump

	Impeller type	Set-up area, width	Set-up area, length	Set-up area, height	Item no.
97020F4C	Radial impeller with macerating system	1.750 mm	1.640 mm	2.030 mm	97020F4C	Show
97030F4C	Radial impeller with macerating system	1.750 mm	2.140 mm	2.030 mm	97030F4C	Show
97040F4C	Radial impeller with macerating system	1.750 mm	2.740 mm	2.030 mm	97040F4C	Show
97050F4C	Radial impeller with macerating system	1.750 mm	3.340 mm	2.060 mm	97050F4C	Show
97075F4C	Radial impeller with macerating system	2.250 mm	3.540 mm	2.030 mm	97075F4C	Show
97100F4C	Radial impeller with macerating system	2.250 mm	4.740 mm	2.030 mm	97100F4C	Show
97125F4C	Radial impeller with macerating system	2.250 mm	4.140 mm	2.530 mm	97125F4C	Show
97150F4C	Radial impeller with macerating system	2.250 mm	5.140 mm	2.530 mm	97150F4C	Show
97175F4C	Radial impeller with macerating system	2.550 mm	5.140 mm	2.530 mm	97175F4C	Show

	Impeller type	Set-up area, width	Set-up area, length	Set-up area, height	Item no.
97020F3C	Radial impeller with macerating system	1.940 mm	1.700 mm	1.980 mm	97020F3C	Show
97030F3C	Radial impeller with macerating system	1.940 mm	1.900 mm	2.430 mm	97030F3C	Show
97040F3C	Radial impeller with macerating system	2.240 mm	2.000 mm	2.430 mm	97040F3C	Show
97050F3C	Radial impeller with macerating system	2.240 mm	2.200 mm	2.430 mm	97050F3C	Show

	Impeller type	Set-up area, width	Set-up area, length	Set-up area, height	Item no.
97020F1C	Radial impeller with macerating system	1.960 mm	1.700 mm	2.050 mm	97020F1C	Show
97030F1C	Radial impeller with macerating system	2.160 mm	1.900 mm	2.050 mm	97030F1C	Show
97040F1C	Radial impeller with macerating system	2.260 mm	2.000 mm	2.350 mm	97040F1C	Show
97050F1C	Radial impeller with macerating system	2.460 mm	2.000 mm	2.390 mm	97050F1C	Show

	Impeller type	Set-up area, width	Set-up area, length	Set-up area, height	Item no.
97010F2C	Radial impeller with macerating system	860 mm	1.880 mm	1.767 mm	97010F2C	Show
97020F2C	Radial impeller with macerating system	1.130 mm	1.910 mm	1.932 mm	97020F2C	Show
97025F2C	Radial impeller with macerating system	1.108 mm	2.590 mm	1.932 mm	97025F2C	Show
97050F2C	Radial impeller with macerating system	1.680 mm	3.230 mm	1.950 mm	97050F2C	Show

Waste disposal option: Auto Mix

	Impeller type	Set-up area, width	Set-up area, length	Set-up area, height	Item no.
97020F4B	Radial impeller with macerating system	1.750 mm	1.640 mm	2.030 mm	97020F4B	Show
97030F4B	Radial impeller with macerating system	1.750 mm	2.140 mm	2.030 mm	97030F4B	Show
97040F4B	Radial impeller with macerating system	1.750 mm	2.740 mm	2.030 mm	97040F4B	Show
97050F4B	Radial impeller with macerating system	1.750 mm	3.340 mm	2.030 mm	97050F4B	Show
97075F4B	Radial impeller with macerating system	2.250 mm	3.540 mm	2.030 mm	97075F4B	Show
97100F4B	Radial impeller with macerating system	2.250 mm	4.740 mm	2.030 mm	97100F4B	Show
97125F4B	Radial impeller with macerating system	2.250 mm	4.140 mm	2.530 mm	97125F4B	Show
97150F4B	Radial impeller with macerating system	2.250 mm	5.140 mm	2.530 mm	97150F4B	Show
97175F4B	Radial impeller with macerating system	2.250 mm	5.140 mm	2.530 mm	97175F4B	Show

	Impeller type	Set-up area, width	Set-up area, length	Set-up area, height	Item no.
97020F3B	Radial impeller with macerating system	1.940 mm	1.700 mm	1.980 mm	97020F3B	Show
97030F3B	Radial impeller with macerating system	1.940 mm	1.900 mm	12.430 mm	97030F3B	Show
97040F3B	Radial impeller with macerating system	2.240 mm	2.000 mm	2.430 mm	97040F3B	Show
97050F3B	Radial impeller with macerating system	2.240 mm	2.200 mm	2.430 mm	97050F3B	Show

	Impeller type	Set-up area, width	Set-up area, length	Set-up area, height	Item no.
97020F1B	Radial impeller with macerating system	1.960 mm	1.700 mm	2.050 mm	97020F1B	Show
97030F1B	Radial impeller with macerating system	2.160 mm	1.900 mm	2.050 mm	97030F1B	Show
97040F1B	Radial impeller with macerating system	2.260 mm	2.000 mm	2.350 mm	97040F1B	Show
97050F1B	Radial impeller with macerating system	2.460 mm	2.200 mm	2.390 mm	97050F1B	Show

	Impeller type	Set-up area, width	Set-up area, length	Set-up area, height	Item no.
97010F2B	Radial impeller with macerating system	860 mm	1.880 mm	1.767 mm	97010F2B	Show
97020F2B	Radial impeller with macerating system	1.130 mm	1.910 mm	1.932 mm	97020F2B	Show
97025F2B	Radial impeller with macerating system	1.130 mm	2.590 mm	1.932 mm	97025F2B	Show
97050F2B	Radial impeller with macerating system	1.680 mm	3.230 mm	1.950 mm	97050F2B	Show

Direct disposal option

	Set-up area, width	Set-up area, length	Set-up area, height	Item no.
97020F4A	1.500 mm	1.650 mm	1.690 mm	97020F4A	Show
97030F4A	1.500 mm	2.140 mm	1.690 mm	97030F4A	Show
97040F4A	1.500 mm	2.740 mm	1.690 mm	97040F4A	Show
97050F4A	1.500 mm	3.340 mm	1.690 mm	97050F4A	Show
97075F4A	2.000 mm	3.540 mm	1.690 mm	97075F4A	Show
97100F4A	2.000 mm	4.740 mm	1.690 mm	97100F4A	Show
97125F4A	2.000 mm	4.140 mm	2.190 mm	97125F4A	Show
97150F4A	2.000 mm	5.140 mm	2.190 mm	97150F4A	Show
97175F4A				97175F4A	Show

	Set-up area, width	Set-up area, length	Set-up area, height	Item no.
97020F3A	1.700 mm	mm	1.620 mm	97020F3A	Show
97030F3A	1.900 mm		2.070 mm	97030F3A	Show
97040F3A	2.000 mm		2.070 mm	97040F3A	Show
97050F3A	2.200 mm		2.070 mm	97050F3A	Show

	Set-up area, width	Set-up area, height	Item no.
97020F1A	1.700 mm	1.690 mm	97020F1A	Show
97030F1A	1.900 mm	1.690 mm	97030F1A	Show
97040F1A	2.000 mm	1.990 mm	97040F1A	Show
97050F1A	2.200 mm	2.040 mm	97050F1A	Show

	Set-up area, width	Set-up area, length	Set-up area, height	Item no.
97010F2A	702 mm	1.880 mm	1.435 mm	97010F2A	Show
97020F2A	970 mm	1.910 mm	1.655 mm	97020F2A	Show
97025F2A	973 mm	2.590 mm	1.653 mm	97025F2A	Show
97050F2A	1.490 mm	3.230 mm	1.710 mm	97050F2A	Show

EasyStore ground

Waste disposal option: Auto Mix & Pump

	Load class	Installation depth	Locking	Note on installation depth	Required access area, width	Required access area, length	Item no.
97050G6C-170B	B 125 (EN 124)	1.260 mm	locked	Ground installation frost-free depth 1700 mm	2.460 mm	4.500 mm	97050G6C-170B	Show
97050G6C-170D	D 400 (EN 124)	1.450 mm	locked	Ground installation frost-free depth 1700 mm	2.460 mm	4.500 mm	97050G6C-170D	Show
97075G6C-170B	B 125 (EN 124)	1.260 mm	locked	Ground installation frost-free depth 1700 mm	2.460 mm	5.500 mm	97075G6C-170B	Show
97075G6C-170D	D 400 (EN 124)	1.450 mm	locked	Ground installation frost-free depth 1700 mm	2.460 mm	5.500 mm	97075G6C-170D	Show
97100G6C-170B	B 125 (EN 124)	1.260 mm	locked	Ground installation frost-free depth 1700 mm	2.460 mm	6.500 mm	97100G6C-170B	Show
97100G6C-170D	D 400 (EN 124)	1.450 mm	locked	Ground installation frost-free depth 1700 mm	2.460 mm	6.500 mm	97100G6C-170D	Show
97125G6C-170B	B 125 (EN 124)	1.260 mm	locked	Ground installation frost-free depth 1700 mm	2.460 mm	7.500 mm	97125G6C-170B	Show
97125G6C-170D	D 400 (EN 124)	1.450 mm	locked	Ground installation frost-free depth 1700 mm	2.460 mm	7.500 mm	97125G6C-170D	Show
97150G6C-170B	B 125 (EN 124)	1.260 mm	locked	Ground installation frost-free depth 1700 mm	2.460 mm	8.500 mm	97150G6C-170B	Show
97150G6C-170D	D 400 (EN 124)	1.450 mm	locked	Ground installation frost-free depth 1700 mm	2.460 mm	8.500 mm	97150G6C-170D	Show
97175G6C-170B	B 125 (EN 124)	1.260 mm	locked	Ground installation frost-free depth 1700 mm	2.460 mm	9.500 mm	97175G6C-170B	Show
97175G6C-170D	D 400 (EN 124)	1.450 mm	locked	Ground installation frost-free depth 1700 mm	2.460 mm	9.500 mm	97175G6C-170D	Show
97200G6C-170B	B 125 (EN 124)	1.260 mm	locked	Ground installation frost-free depth 1700 mm	2.460 mm	10.500 mm	97200G6C-170B	Show
97200G6C-170D	D 400 (EN 124)	1.450 mm	locked	Ground installation frost-free depth 1700 mm	2.460 mm	10.500 mm	97200G6C-170D	Show

	Load class	Installation depth	Locking	Note on installation depth	Required access area, width	Required access area, length	Item no.
97025G5C-120B	B 125 (EN 124)	680 mm	locked	Installation in the ground, frost-free depth 1200 mm	1.235 mm	4.990 mm	97025G5C-120B	Show
97025G5C-120D	D 400 (EN 124)	940 mm	locked	Installation in the ground, frost-free depth 1200 mm	1.235 mm	4.990 mm	97025G5C-120D	Show
97050G5C-120B	B 125 (EN 124)	730 mm	locked	Installation in the ground, frost-free depth 1200 mm	1.760 mm	5.225 mm	97050G5C-120B	Show
97050G5C-120D	D 400 (EN 124)	990 mm	locked	Installation in the ground, frost-free depth 1200 mm	1.760 mm	5.225 mm	97050G5C-120D	Show
97075G5C-120B	B 125 (EN 124)	865 mm	locked	Installation in the ground, frost-free depth 1200 mm	2.010 mm	5.685 mm	97075G5C-120B	Show
97075G5C-120D	D 400 (EN 124)	1.125 mm	locked	Installation in the ground, frost-free depth 1200 mm	2.010 mm	5.685 mm	97075G5C-120D	Show
97090G5C-120B	B 125 (EN 124)	615 mm	locked	Installation in the ground, frost-free depth 1200 mm	2.010 mm	5.685 mm	97090G5C-120B	Show
97090G5C-120D	D 400 (EN 124)	615 mm	locked	Installation in the ground, frost-free depth 1200 mm	2.010 mm	5.685 mm	97090G5C-120D	Show

Waste disposal option: Auto Mix

	Load class	Installation depth	Locking	Note on installation depth	Required access area, width	Required access area, length	Item no.
97050G6B-170B	B 125 (EN 124)	1.260 mm	locked	Ground installation frost-free depth 1700 mm	2.460 mm	4.500 mm	97050G6B-170B	Show
97050G6B-170D	D 400 (EN 124)	1.450 mm	locked	Ground installation frost-free depth 1700 mm	2.460 mm	4.500 mm	97050G6B-170D	Show
97075G6B-170B	B 125 (EN 124)	1.260 mm	locked	Ground installation frost-free depth 1700 mm	2.460 mm	5.500 mm	97075G6B-170B	Show
97075G6B-170D	D 400 (EN 124)	1.450 mm	locked	Ground installation frost-free depth 1700 mm	2.460 mm	5.500 mm	97075G6B-170D	Show
97100G6B-170B	B 125 (EN 124)	1.260 mm	locked	Ground installation frost-free depth 1700 mm	2.460 mm	6.500 mm	97100G6B-170B	Show
97100G6B-170D	D 400 (EN 124)	1.450 mm	locked	Ground installation frost-free depth 1700 mm	2.460 mm	6.500 mm	97100G6B-170D	Show
97125G6B-170B	B 125 (EN 124)	1.260 mm	locked	Ground installation frost-free depth 1700 mm	2.460 mm	7.500 mm	97125G6B-170B	Show
97125G6B-170D	D 400 (EN 124)	1.450 mm	locked	Ground installation frost-free depth 1700 mm	2.460 mm	7.500 mm	97125G6B-170D	Show
97150G6B-170B	B 125 (EN 124)	1.260 mm	locked	Ground installation frost-free depth 1700 mm	2.460 mm	8.500 mm	97150G6B-170B	Show
97150G6B-170D	D 400 (EN 124)	1.450 mm	locked	Ground installation frost-free depth 1700 mm	2.460 mm	8.500 mm	97150G6B-170D	Show
97175G6B-170B	B 125 (EN 124)	1.260 mm	locked	Ground installation frost-free depth 1700 mm	2.460 mm	9.500 mm	97175G6B-170B	Show
97175G6B-170D	D 400 (EN 124)	1.450 mm	locked	Ground installation frost-free depth 1700 mm	2.460 mm	9.500 mm	97175G6B-170D	Show
97200G6B-170B	B 125 (EN 124)	1.260 mm	locked	Ground installation frost-free depth 1700 mm	2.460 mm	10.500 mm	97200G6B-170B	Show
97200G6B-170D	D 400 (EN 124)	1.450 mm	locked	Ground installation frost-free depth 1700 mm	2.460 mm	10.500 mm	97200G6B-170D	Show

	Load class	Installation depth	Locking	Note on installation depth	Required access area, width	Required access area, length	Item no.
97025G5B-120B	B 125 (EN 124)	680 mm	locked	Installation in the ground, frost-free depth 1200 mm	1.235 mm	4.990 mm	97025G5B-120B	Show
97025G5B-120D	D 400 (EN 124)	940 mm	locked	Installation in the ground, frost-free depth 1200 mm	1.235 mm	4.990 mm	97025G5B-120D	Show
97050G5B-120B	B 125 (EN 124)	730 mm	locked	Installation in the ground, frost-free depth 1200 mm	1.760 mm	5.225 mm	97050G5B-120B	Show
97050G5B-120D	D 400 (EN 124)	990 mm	locked	Installation in the ground, frost-free depth 1200 mm	1.760 mm	5.225 mm	97050G5B-120D	Show
97075G5B-120B	B 125 (EN 124)	865 mm	locked	Installation in the ground, frost-free depth 1200 mm	2.010 mm	5.685 mm	97075G5B-120B	Show
97075G5B-120D	D 400 (EN 124)	1.125 mm	locked	Installation in the ground, frost-free depth 1200 mm	2.010 mm	5.685 mm	97075G5B-120D	Show
97090G5B-120B	B 125 (EN 124)	615 mm	locked	Installation in the ground, frost-free depth 1200 mm	2.010 mm	6.570 mm	97090G5B-120B	Show
97090G5B-120D	D 400 (EN 124)	615 mm	locked	Installation in the ground, frost-free depth 1200 mm	2.010 mm	6.570 mm	97090G5B-120D	Show

Direct disposal option

	Load class	Installation depth	Locking	Note on installation depth	Required access area, width	Required access area, length	Item no.
97050G6A-170B	B 125 (EN 124)	1.260 mm	locked	Ground installation frost-free depth 1700 mm	2.460 mm	2.300 mm	97050G6A-170B	Show
97050G6A-170D	D 400 (EN 124)	1.450 mm	locked	Ground installation frost-free depth 1700 mm	2.460 mm	2.300 mm	97050G6A-170D	Show
97075G6A-170B	B 125 (EN 124)	1.260 mm	locked	Ground installation frost-free depth 1700 mm	2.460 mm	3.300 mm	97075G6A-170B	Show
97075G6A-170D	D 400 (EN 124)	1.450 mm	locked	Ground installation frost-free depth 1700 mm	2.460 mm	3.300 mm	97075G6A-170D	Show
97100G6A-170B	B 125 (EN 124)	1.260 mm	locked	Ground installation frost-free depth 1700 mm	2.460 mm	4.300 mm	97100G6A-170B	Show
97100G6A-170D	D 400 (EN 124)	1.450 mm	locked	Ground installation frost-free depth 1700 mm	2.460 mm	4.300 mm	97100G6A-170D	Show
97125G6A-170B	B 125 (EN 124)	1.260 mm	locked	Ground installation frost-free depth 1700 mm	2.460 mm	5.300 mm	97125G6A-170B	Show
97125G6A-170D	D 400 (EN 124)	1.450 mm	locked	Ground installation frost-free depth 1700 mm	2.460 mm	5.300 mm	97125G6A-170D	Show
97150G6A-170B	B 125 (EN 124)	1.260 mm	locked	Ground installation frost-free depth 1700 mm	2.460 mm	6.300 mm	97150G6A-170B	Show
97150G6A-170D	D 400 (EN 124)	1.450 mm	locked	Ground installation frost-free depth 1700 mm	2.460 mm	6.300 mm	97150G6A-170D	Show
97175G6A-170B	B 125 (EN 124)	1.260 mm	locked	Ground installation frost-free depth 1700 mm	2.460 mm	7.300 mm	97175G6A-170B	Show
97175G6A-170D	D 400 (EN 124)	1.450 mm	locked	Ground installation frost-free depth 1700 mm	2.460 mm	7.300 mm	97175G6A-170D	Show
97200G6A-170B	B 125 (EN 124)	1.260 mm	locked	Ground installation frost-free depth 1700 mm	2.460 mm	8.300 mm	97200G6A-170B	Show
97200G6A-170D	D 400 (EN 124)	1.450 mm	locked	Ground installation frost-free depth 1700 mm	2.460 mm	8.300 mm	97200G6A-170D	Show

	Load class	Installation depth	Locking	Note on installation depth	Required access area, width	Required access area, length	Item no.
97025G5A-120B	B 125 (EN 124)	680 mm	locked	Installation in the ground, frost-free depth 1200 mm	1.200 mm	2.910 mm	97025G5A-120B	Show
97025G5A-120D	D 400 (EN 124)	940 mm	locked	Installation in the ground, frost-free depth 1200 mm	1.200 mm	2.910 mm	97025G5A-120D	Show
97050G5A-120B	B 125 (EN 124)	730 mm	locked	Installation in the ground, frost-free depth 1200 mm	1.720 mm	2.590 mm	97050G5A-120B	Show
97050G5A-120D	D 400 (EN 124)	990 mm	locked	Installation in the ground, frost-free depth 1200 mm	1.720 mm	2.590 mm	97050G5A-120D	Show
97075G5A-120B	B 125 (EN 124)	865 mm	locked	Installation in the ground, frost-free depth 1200 mm	mm	3.470 mm	97075G5A-120B	Show
97075G5A-120D	D 400 (EN 124)	1.125 mm	locked	Installation in the ground, frost-free depth 1200 mm	mm	3.470 mm	97075G5A-120D	Show
97090G5A-120B	B 125 (EN 124)	615 mm	locked	Installation in the ground, frost-free depth 1200 mm		3.470 mm	97090G5A-120B	Show
97090G5A-120D	D 400 (EN 124)	875 mm	locked	Installation in the ground, frost-free depth 1200 mm	mm	3.470 mm	97090G5A-120D	Show

Please get in touch with us

Are you looking for the right solution for food waste collection systems?

We will work with you to develop a proposal tailored to your needs. From a bespoke solution proposal with design drawings, through a commercial quotation, to production and delivery, we are the right partner for you.

individual@kessel.de

+49 (0) 8456 27-463

Our range of services

For planners, installers and operators

SmartSelect

With our design assistant for grease separators you can configure, design and calculate drainage solutions virtually. This reduces your design work considerably.

Use SmartSelect

Technical advice

Would you like to commission a professional assessment of your project, or do you require individual support for your drainage with KESSEL? Our qualified specialists will be happy to advise you.

Your contact options

EasyStore Collection Tank

Hygienic and virtually odourless storage of food waste.

Possible applications

Disposal systems for EasyStore collection tanks

100% corrosion-free – 20-year guarantee

Further benefits

EasyStore free

Waste disposal option: Auto Mix & Pump

Waste disposal option: Auto Mix

Direct disposal option

EasyStore ground

Waste disposal option: Auto Mix & Pump

Waste disposal option: Auto Mix

Direct disposal option

Please get in touch with us

Are you looking for the right solution for food waste collection systems?

Our range of services

For planners, installers and operators

SmartSelect

Technical advice

Product Range

More Offers

EasyStore free

Waste disposal option: Auto Mix & Pump

Square

Modular

Round

Rotated

Waste disposal option: Auto Mix

Square

Modular

Round

Rotated

Direct disposal option

Square

Modular

Round

Rotated

EasyStore ground

Waste disposal option: Auto Mix & Pump

Coiled pipe shaft

Collection tank

Waste disposal option: Auto Mix

Coiled pipe shaft

Collection tank

Direct disposal option

Coiled pipe shaft

Collection tank

Are you looking for the right solution for food waste collection systems?

SmartSelect

Technical advice
