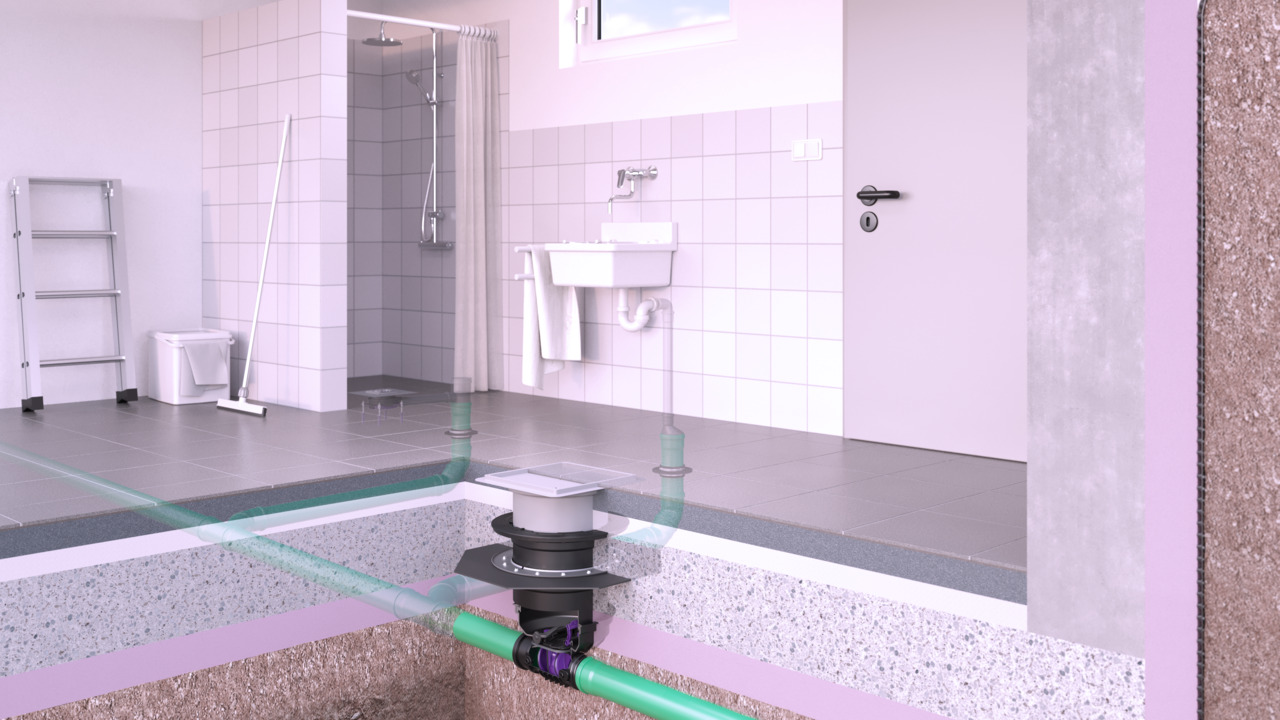

Reliable and durable. This is proven by our Staufix backwater valve. It is the ideal solution to provide protection for individual draining elements such as a shower, washbasin and washing machine which are located below the backwater level.

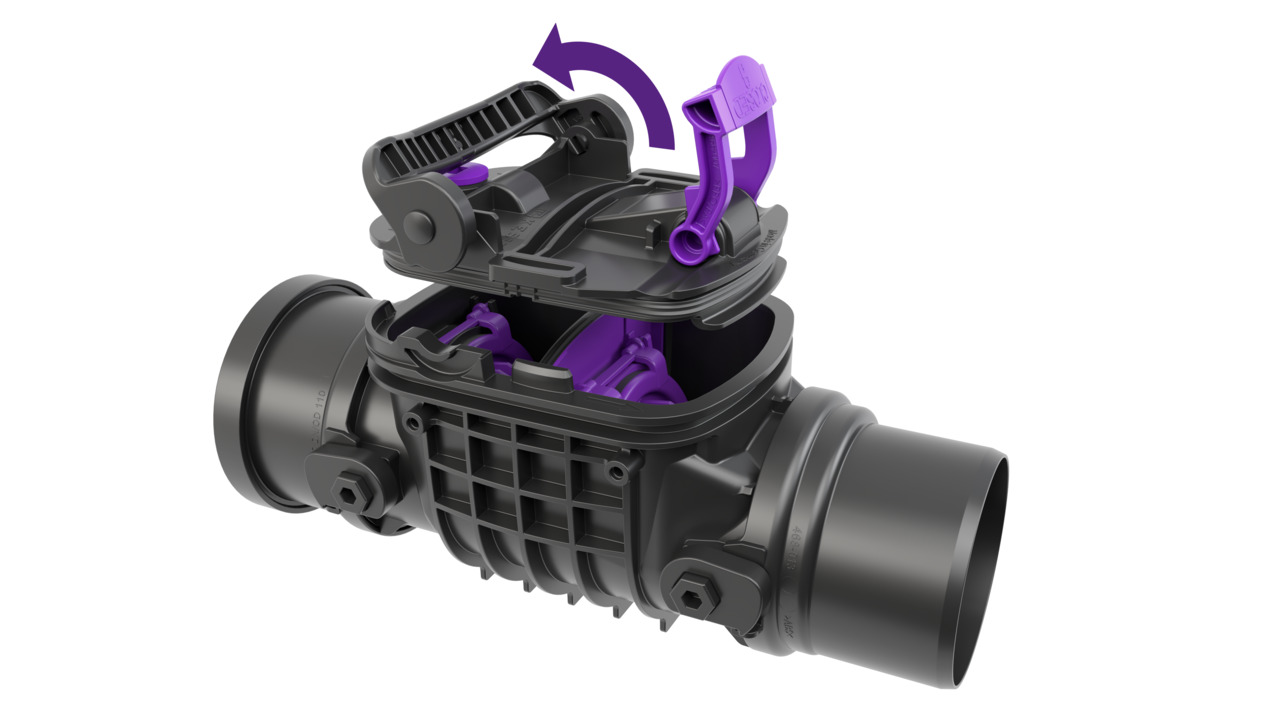

The Staufix is available as a type 1 and 2. Type 2 has two free-hanging backwater flaps that protect against the ingress of water from the sewer in the event of backwater. In addition, one of these flaps can be manually locked via an emergency closure. The backwater valves are available in two different versions – for installation in an exposed drainage pipe and for floor slab installation, where you can choose between a black cover or tileable cover.

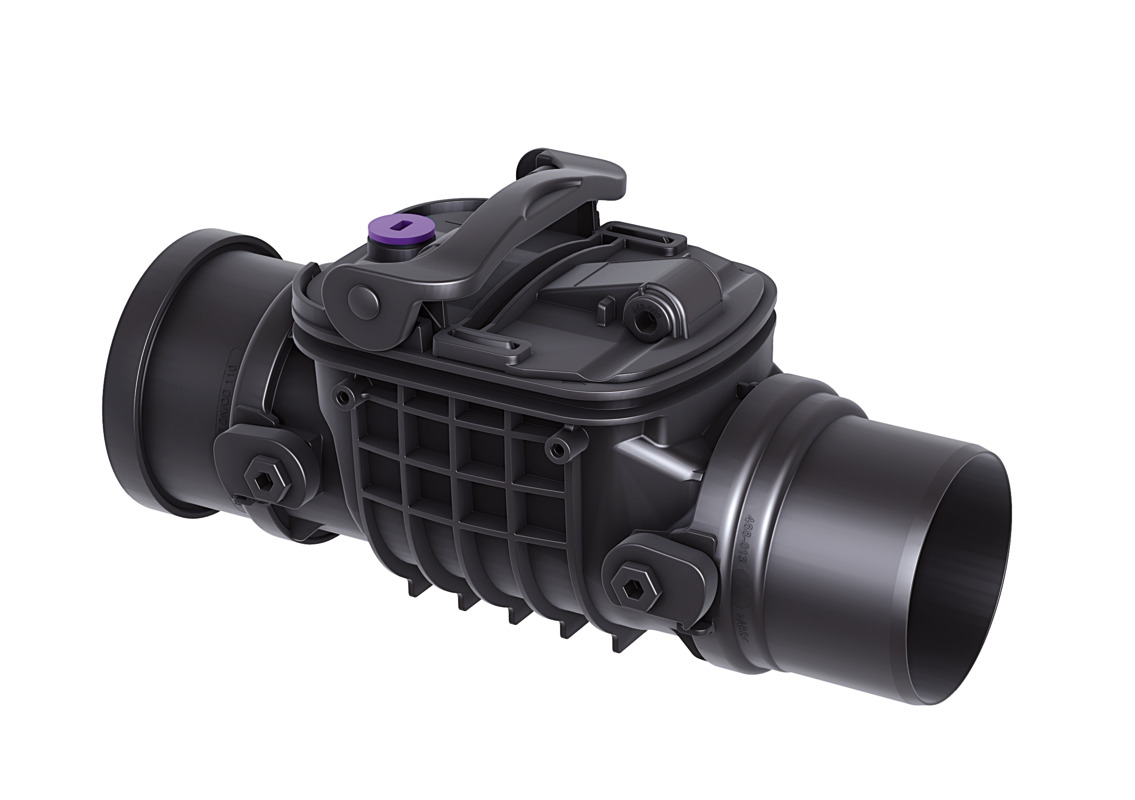

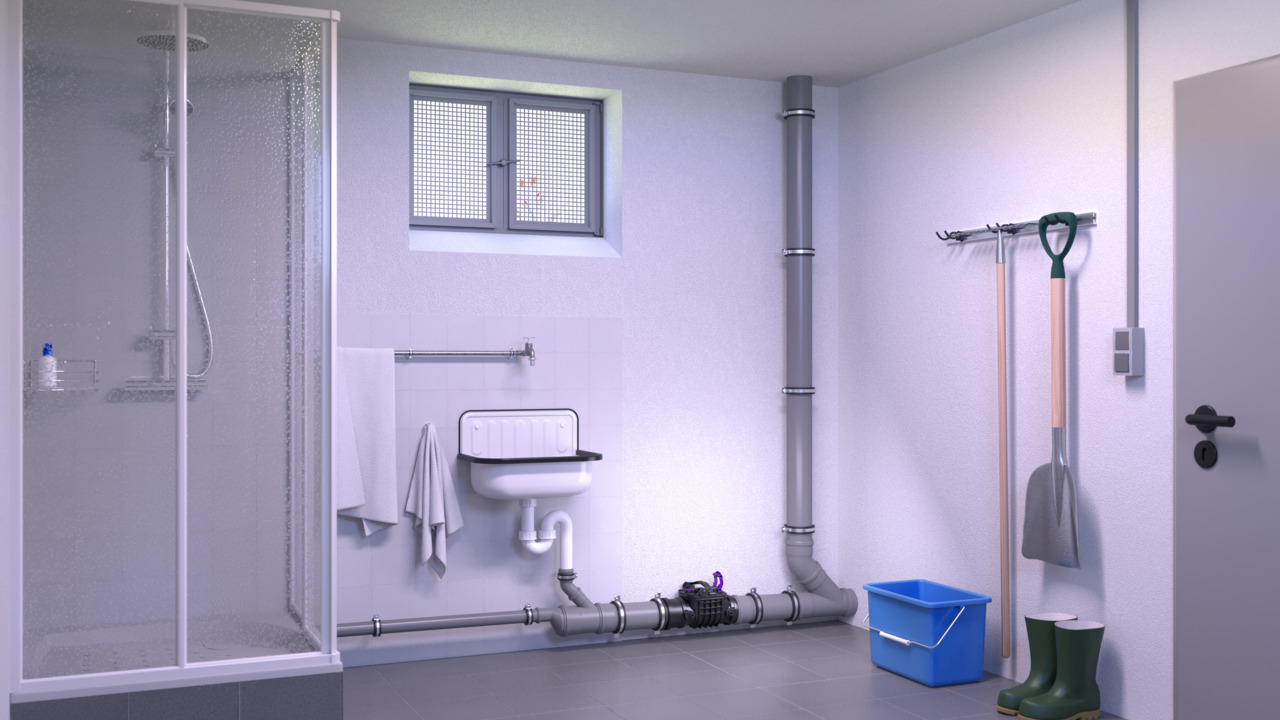

Staufix backwater valve for installation in an exposed pipe.

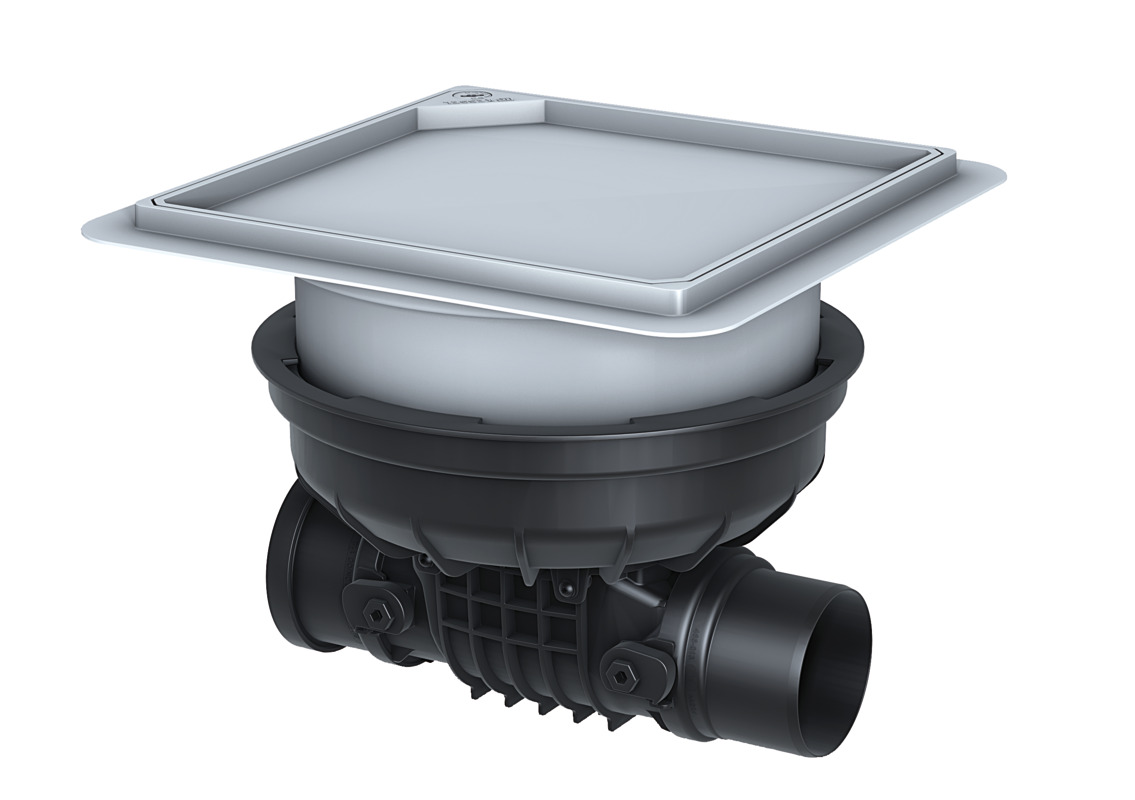

Staufix backwater valve for installation in a concrete floor.
Application possibilities
The Staufix backwater valves can be installed either in an exposed drainage pipe or in the floor slab – convenient and tidy thanks to the installation kit with a vertically adjustable upper section. Even installation in waterproof concrete is possible by means of an extension piece with flange and an elastomer waterproofing membrane.

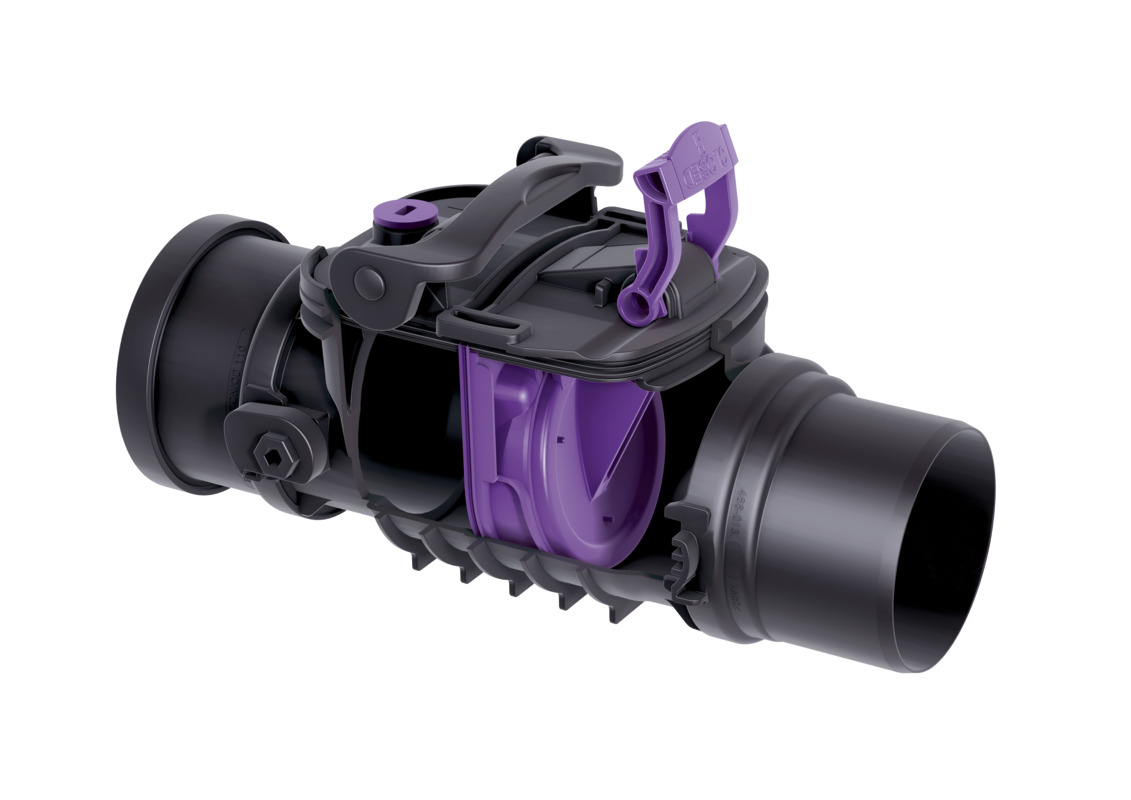

Staufix backwater valve Type 1
Floor slab installation
| Type of cover | Nominal size (DN) | Length | Width | Backwater protection | Item no. | ||
|---|---|---|---|---|---|---|---|
720090.10S | Cover plate | 90 | 444 mm | 444 mm | Type 1 | 720090.10S | Show |
720100.10S | Cover plate | 100 | 444 mm | 444 mm | Type 1 | 720100.10S | Show |
720125.10S | Cover plate | 125 | 511 mm | 444 mm | Type 1 | 720125.10S | Show |
720150.10S | Cover plate | 150 | 523 mm | 444 mm | Type 1 | 720150.10S | Show |
720200.10S | Cover plate | 200 | 586 mm | 444 mm | Type 1 | 720200.10S | Show |
| Type of cover | Nominal size (DN) | Length | Width | Backwater protection | Item no. | ||
|---|---|---|---|---|---|---|---|
720090.10X | tileable cover plate | 90 | 444 mm | 444 mm | Type 1 | 720090.10X | Show |
720100.10X | tileable cover plate | 100 | 444 mm | 444 mm | Type 1 | 720100.10X | Show |
720125.10X | tileable cover plate | 125 | 511 mm | 444 mm | Type 1 | 720125.10X | Show |
720150.10X | tileable cover plate | 150 | 526 mm | 444 mm | Type 1 | 720150.10X | Show |
720200.10X | tileable cover plate | 200 | 586 mm | 444 mm | Type 1 | 720200.10X | Show |
Installation in an exposed drainage pipe

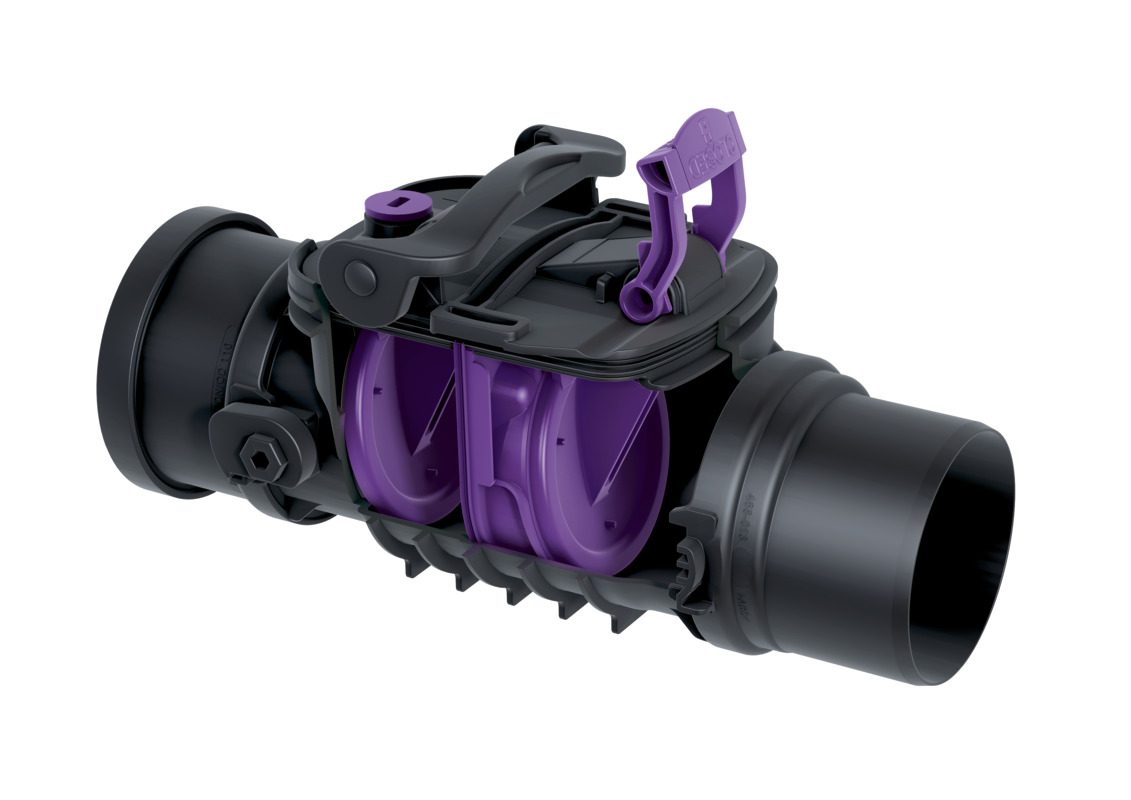

Staufix backwater valve Type 2

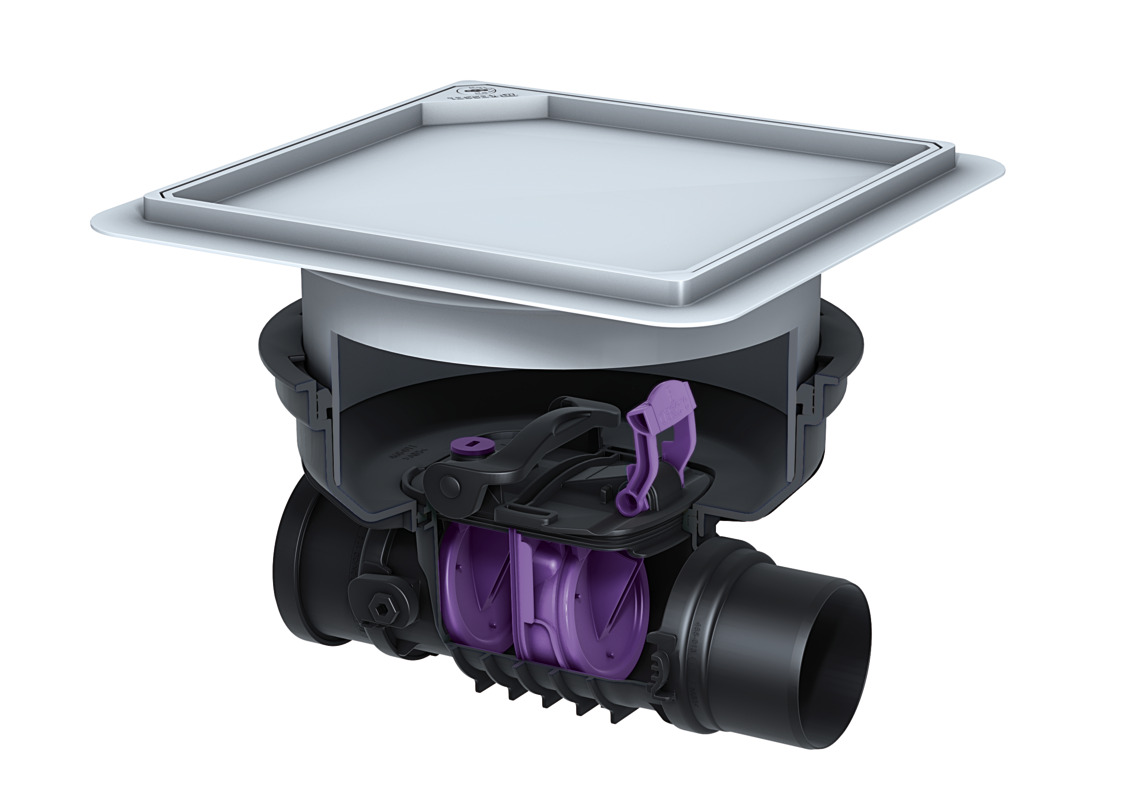

Floor slab installation
| Nominal size (DN) | Length | Width | Backwater protection | Stainless steel flap as rat protection | Item no. | ||
|---|---|---|---|---|---|---|---|
730000.15S | 125-200 | 444 mm | 444 mm | Type 2 | no | 730000.15S | Show |
730090.10S | 90 | 444 mm | 444 mm | Type 2 | no | 730090.10S | Show |
730090.10SR | 90 | 444 mm | 444 mm | Type 2 | yes | 730090.10SR | Show |
730100.10S | 100 | 444 mm | 444 mm | Type 2 | no | 730100.10S | Show |
730100.10SR | 100 | 444 mm | 444 mm | Type 2 | yes | 730100.10SR | Show |
730125.10S | 125 | 511 mm | 444 mm | Type 2 | no | 730125.10S | Show |
730125.10SR | 125 | 511 mm | 444 mm | Type 2 | yes | 730125.10SR | Show |
730150.10S | 150 | 523 mm | 444 mm | Type 2 | no | 730150.10S | Show |
730150.10SR | 150 | 523 mm | 444 mm | Type 2 | yes | 730150.10SR | Show |
730200.10S | 200 | 586 mm | 444 mm | Type 2 | no | 730200.10S | Show |
730200.10SR | 200 | 586 mm | 444 mm | Type 2 | yes | 730200.10SR | Show |
| Nominal size (DN) | Length | Width | Backwater protection | Stainless steel flap as rat protection | Item no. | ||
|---|---|---|---|---|---|---|---|
730090.10X | 90 | 444 mm | 444 mm | Type 2 | no | 730090.10X | Show |
730090.10XR | 90 | 444 mm | 444 mm | Type 2 | yes | 730090.10XR | Show |
730100.10X | 100 | 444 mm | 444 mm | Type 2 | no | 730100.10X | Show |
730100.10XR | 100 | 444 mm | 444 mm | Type 2 | yes | 730100.10XR | Show |
730125.10X | 125 | 511 mm | 444 mm | Type 2 | no | 730125.10X | Show |
730125.10XR | 125 | 511 mm | 444 mm | Type 2 | yes | 730125.10XR | Show |
730150.10X | 150 | 523 mm | 444 mm | Type 2 | no | 730150.10X | Show |
730150.10XR | 150 | 523 mm | 444 mm | Type 2 | yes | 730150.10XR | Show |
730200.10X | 200 | 586 mm | 444 mm | Type 2 | no | 730200.10X | Show |
730200.10XR | 200 | 586 mm | 444 mm | Type 2 | yes | 730200.10XR | Show |
Installation in an exposed drainage pipe
| Nominal size (DN) | Length | Width | Backwater protection | Stainless steel flap as rat protection | Item no. | ||
|---|---|---|---|---|---|---|---|
730090 | 90 | 385 mm | 167 mm | Type 2 | no | 730090 | Show |
730090R | 90 | 385 mm | 167 mm | Type 2 | yes | 730090R | Show |
730100 | 100 | 389 mm | 167 mm | Type 2 | no | 730100 | Show |
730100R | 100 | 389 mm | 167 mm | Type 2 | yes | 730100R | Show |
730125 | 125 | 511 mm | 216 mm | Type 2 | no | 730125 | Show |
730125R | 125 | 515 mm | 214 mm | Type 2 | yes | 730125R | Show |
730150 | 150 | 526 mm | 214 mm | Type 2 | no | 730150 | Show |
730150R | 150 | 523 mm | 216 mm | Type 2 | yes | 730150R | Show |
730200 | 200 | 586 mm | 233 mm | Type 2 | no | 730200 | Show |
730200R | 200 | 586 mm | 233 mm | Type 2 | yes | 730200R | Show |
Not found the right product?
In addition to our standardbackwater valves, we develop individual solutions for special requirements – in terms of form, function and dimensioning – at the customer's request..
