EasyOil ground oil/fuel separator

Class II

EasyOil ground oil/fuel separator, NS 3-20, System B

Effective against light liquids: EasyOil is used to protect water bodies and sewer systems against contamination from mineral oil – i.e. anywhere that light liquids are used, such as in petrol stations, car washes, vehicle repair garages and industry.

The EasyOil ground is available as a Class II oil/fuel separator, in nominal sizes NS 1.5 to NS 20 for underground installation.

Advantages  Article overview

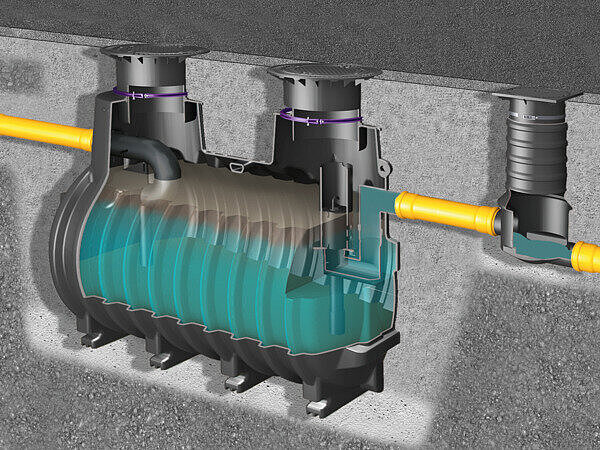

Installation diagram of EasyOil ground oil/fuel separator, System B

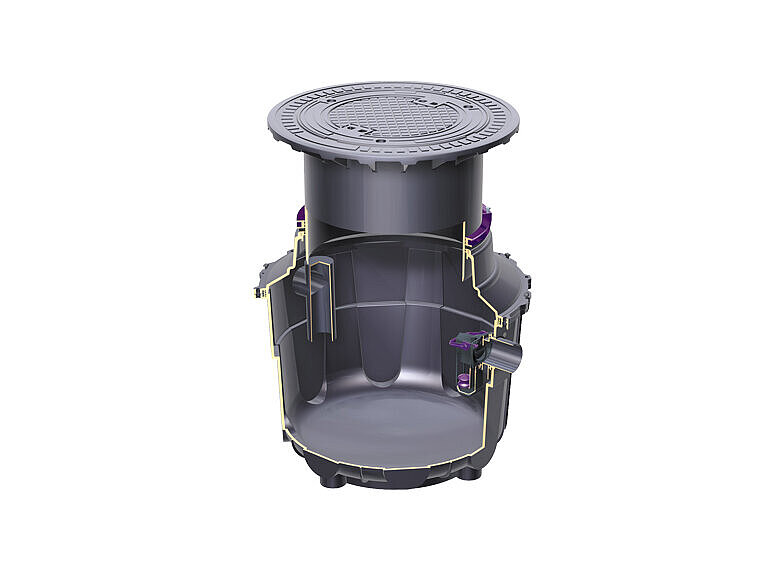

EasyOil ground oil/fuel separator, NS 1.5, System B

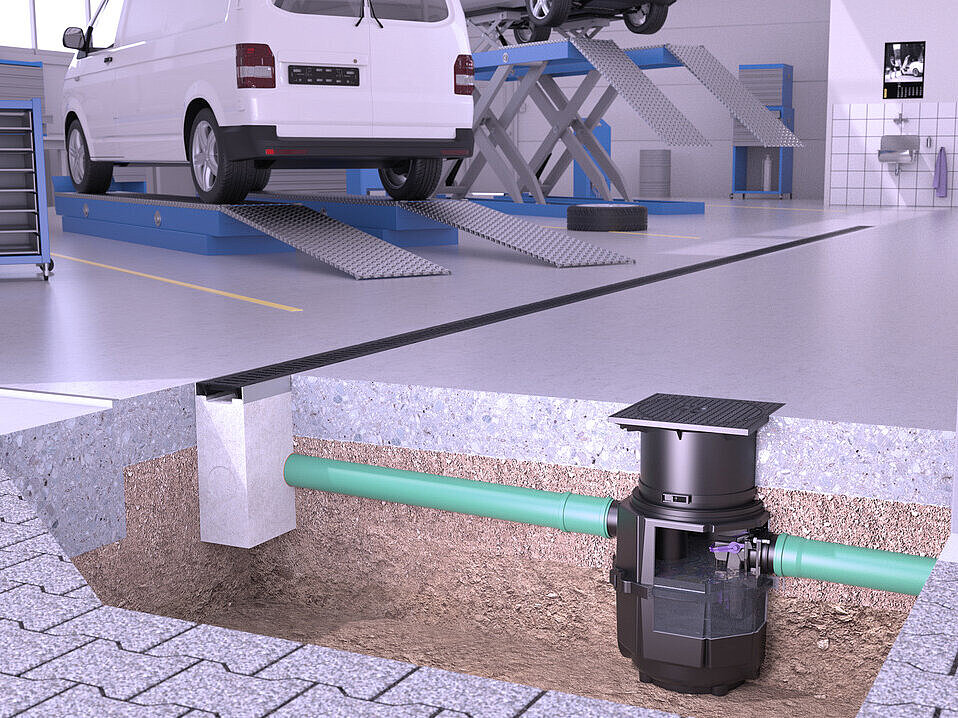

Oil separator in a vehicle repair shop

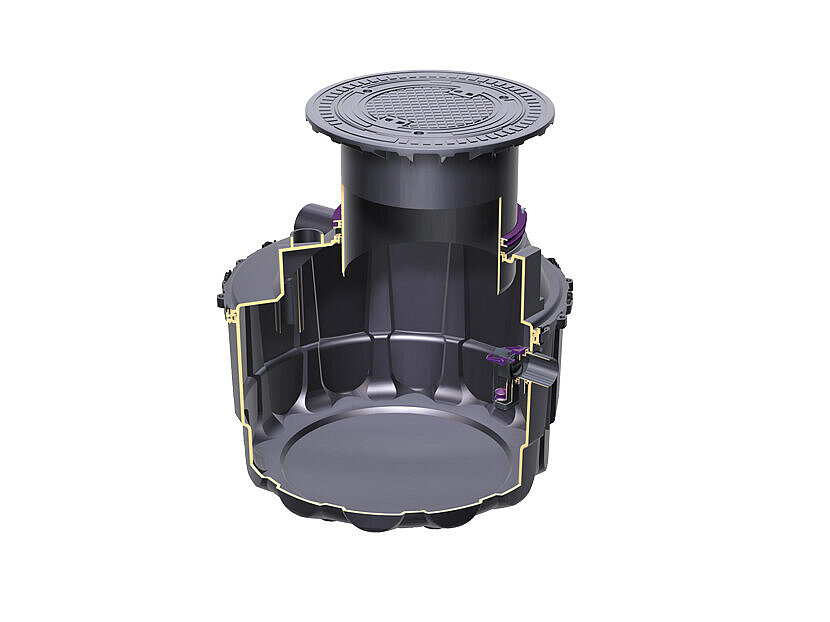

EasyOil ground oil/fuel separator, NS 1.5, System B

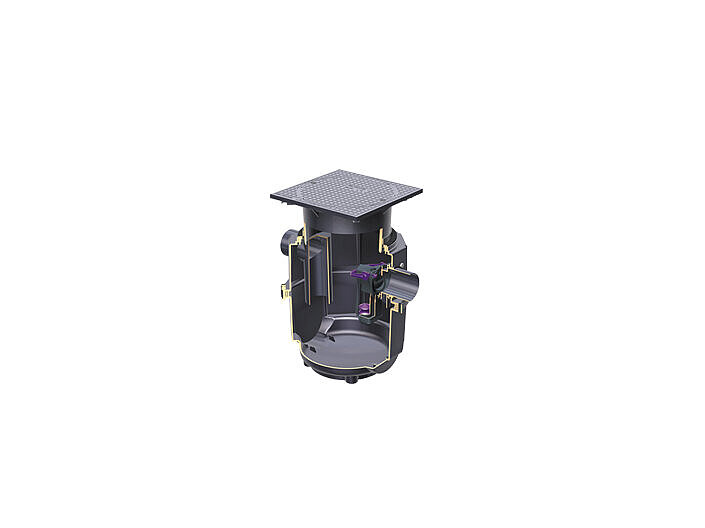

EasyOil ground oil/fuel separator, NS 1.5, System B

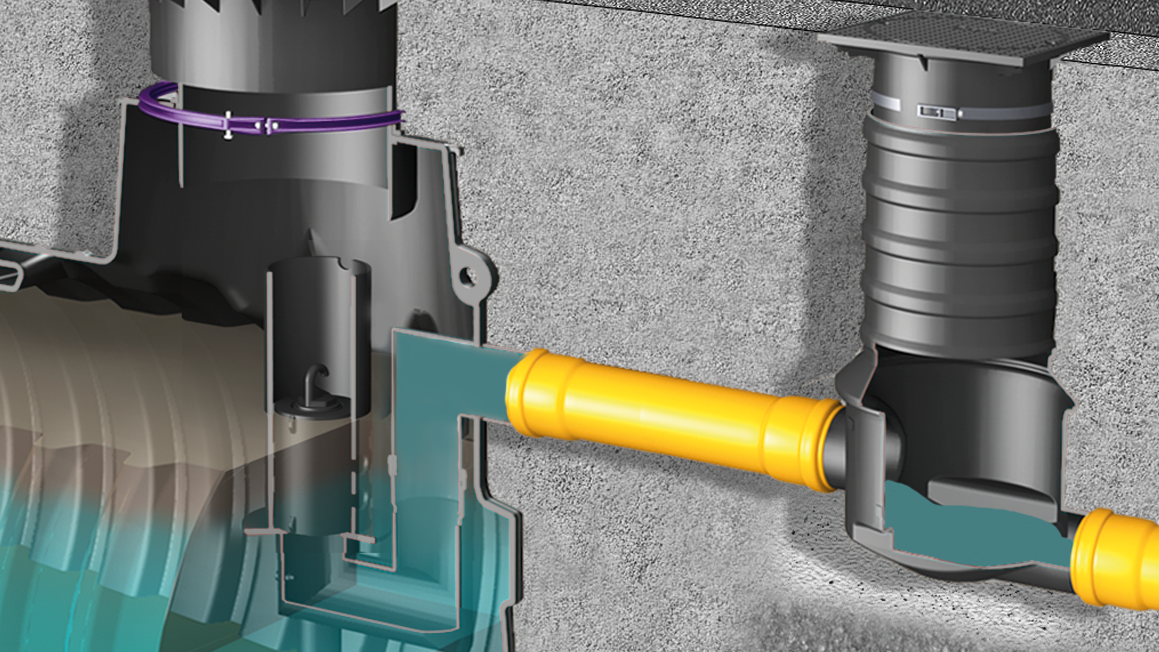

EasyOil oil/fuel separator, emergency brake as leak protection

Emergency brake

The EasyOil  is equipped with a standard self-actuated closure lock / leak barrier. This emergency brake prevents the leakage of light liquids into the sewer pipe.

Adjustable upper section

Vertically adjustable upper section

The vertically adjustable upper section of the EasyOil is continuously height-adjustable and tiltable by 5° – for optimum adaptation to the ground level and to compensate for settling of the flooring.

20-year guarantee on polyethylene tank

Material

EasyOil is the first series of polymer coalescence and oil/fuel separator systems with national technical approval on the German market. The polyethylene material used is also resistant to bioethanol (E10) and biodiesel – and therefore particularly durable. In addition to the statutory provision, we provide a 20-year warranty with regard to the leak tightness, fitness for purpose and structural safety of tanks and upper sections.

SonicControl automatic measuring device for light liquid separators

SonicControl

The SonicControl automatic layer thickness measuring device with ultrasonic sensor undertakes the precise monitoring and reporting of the oil and sludge layer thickness in coalescence and oil/fuel separators. Owners/operating companies can verify their actual volumes of light liquids to the relevant authorities and optimise the necessary disposal cycles outside the standard requirements if necessary.

EasyOil System B

Load class B 125 (EN 124)

  Load classInstallation depthNominal size (NS)Total volume Item no.
99403.10BEX99403.10BEX B 125 (EN 124) 840  mm 3 1.800  l 99403.10BEX
Show
99606.30BEX99606.30BEX B 125 (EN 124) 850  mm 6 4.300  l 99606.30BEX
Show
99606.80BEX99606.80BEX B 125 (EN 124) 870  mm 6 5.800  l 99606.80BEX
Show
99610.15BEX99610.15BEX B 125 (EN 124) 840  mm 10 2.600  l 99610.15BEX
Show
99610.30BEX99610.30BEX B 125 (EN 124) 850  mm 10 4.300  l 99610.30BEX
Show
99610.80BEX99610.80BEX B 125 (EN 124) 870  mm 10 5.800  l 99610.80BEX
Show
99615.80BEX99615.80BEX B 125 (EN 124) 870  mm 15 5.800  l 99615.80BEX
Show
99620.80B99620.80B B 125 (EN 124) 870  mm 20 5.800  l 99620.80B
Show
99620.80BEX99620.80BEX B 125 (EN 124) 870  mm 20 5.800  l 99620.80BEX
Show

Load class D 400 (EN 124)

  Load classInstallation depthNominal size (NS)Total volume Item no.
99606.30DEX99606.30DEX D 400 (EN 124) 850  mm 6 4.300  l 99606.30DEX
Show
99606.80DEX99606.80DEX D 400 (EN 124) 870  mm 6 5.800  l 99606.80DEX
Show
99610.15DEX99610.15DEX D 400 (EN 124) 840  mm 10 2.600  l 99610.15DEX
Show
99610.30DEX99610.30DEX D 400 (EN 124) 850  mm 10 4.300  l 99610.30DEX
Show
99610.80DEX99610.80DEX D 400 (EN 124) 870  mm 10 5.800  l 99610.80DEX
Show
99615.80DEX99615.80DEX D 400 (EN 124) 870  mm 15 5.800  l 99615.80DEX
Show
99620.80DEX99620.80DEX D 400 (EN 124) 870  mm 20 5.800  l 99620.80DEX
Show

EasyOil Class II

Load class B 125 (EN 124)

  Load classInstallation depthNominal size (NS) Item no.
99601.002B99601.002B B 125 (EN 124) 231  mm 1,5 99601.002B
Show
99601.016B99601.016B B 125 (EN 124) 518  mm 1,5 99601.016B
Show

Load class D 400 (EN 124)

  Load classInstallation depthNominal size (NS) Item no.
99601.016D99601.016D D 400 (EN 124) 518  mm 1,5 99601.016D
Show
99601.041D99601.041D D 400 (EN 124) 570  mm 1,5 99601.041D
Show

Not found the right product?

In addition to our standard grease separators we also develop individual solutions on request for special requirements in terms of form, function and dimensioning.

Customised solutions
