Linearis Infinity shower channel

The infinitely versatile solution made of AISI 316L stainless steel

Linearis Infinity shower channel

Finally infinite: The Linearis Infinity shower channel offers an entirely new host of possibilities when it comes to the individual design of dream bathrooms. It impresses not only with its unusual, timelessly elegant insert made of AISI 316L, on which the water drains towards the centre, but also with its unique connecting pieces, with which the shower channel can be infinitely extended and even angled.

To ensure the ultimate tailoring of Linearis Infinity shower channel to suit the individual requirements, it is available in various colours. There is also a choice of models ranging from 800 to 1,600 mm in length.

Advantages  Article overview  Configurator

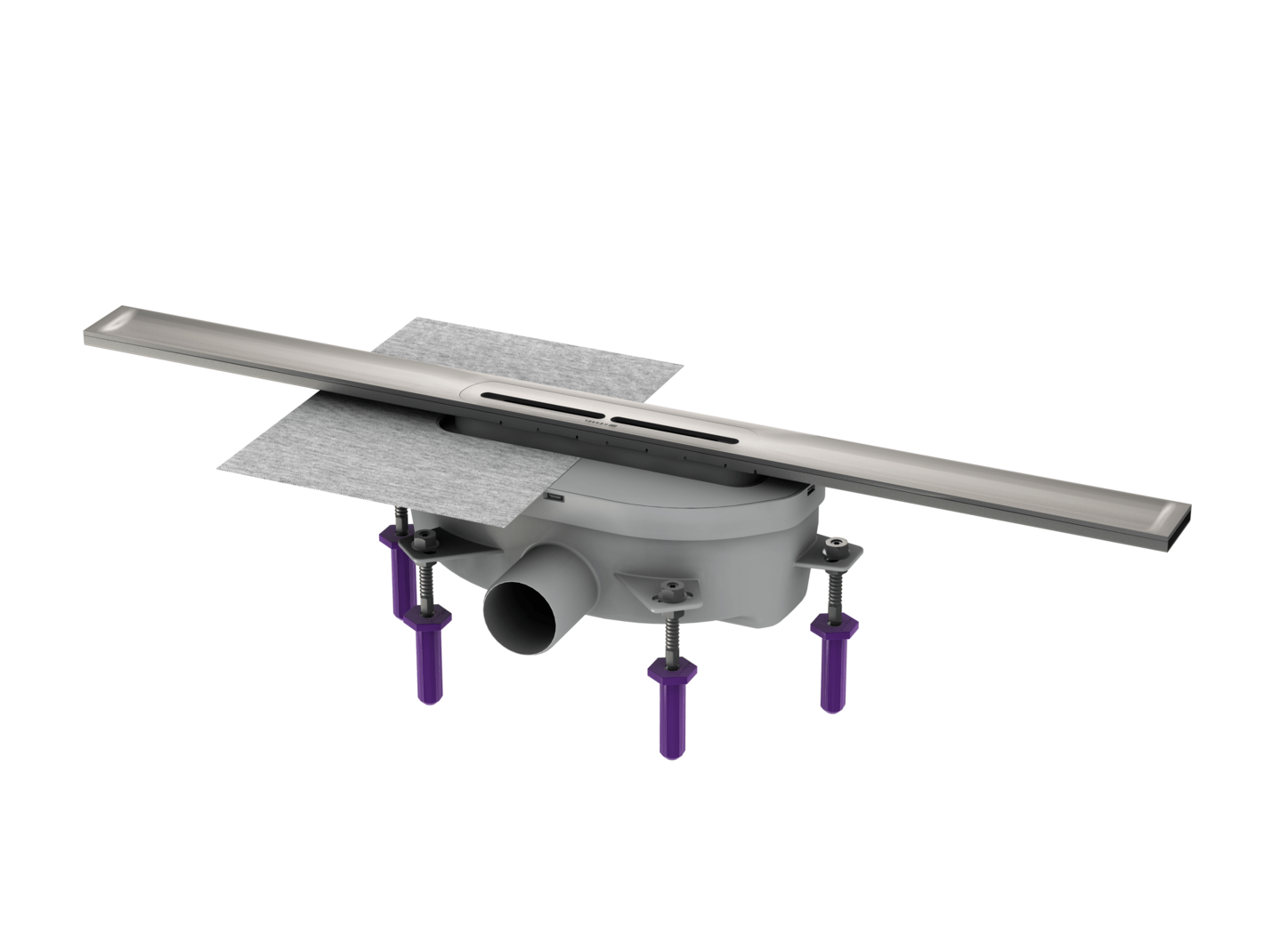

Linearis Infinity 90 shower channel with a stainless steel channel

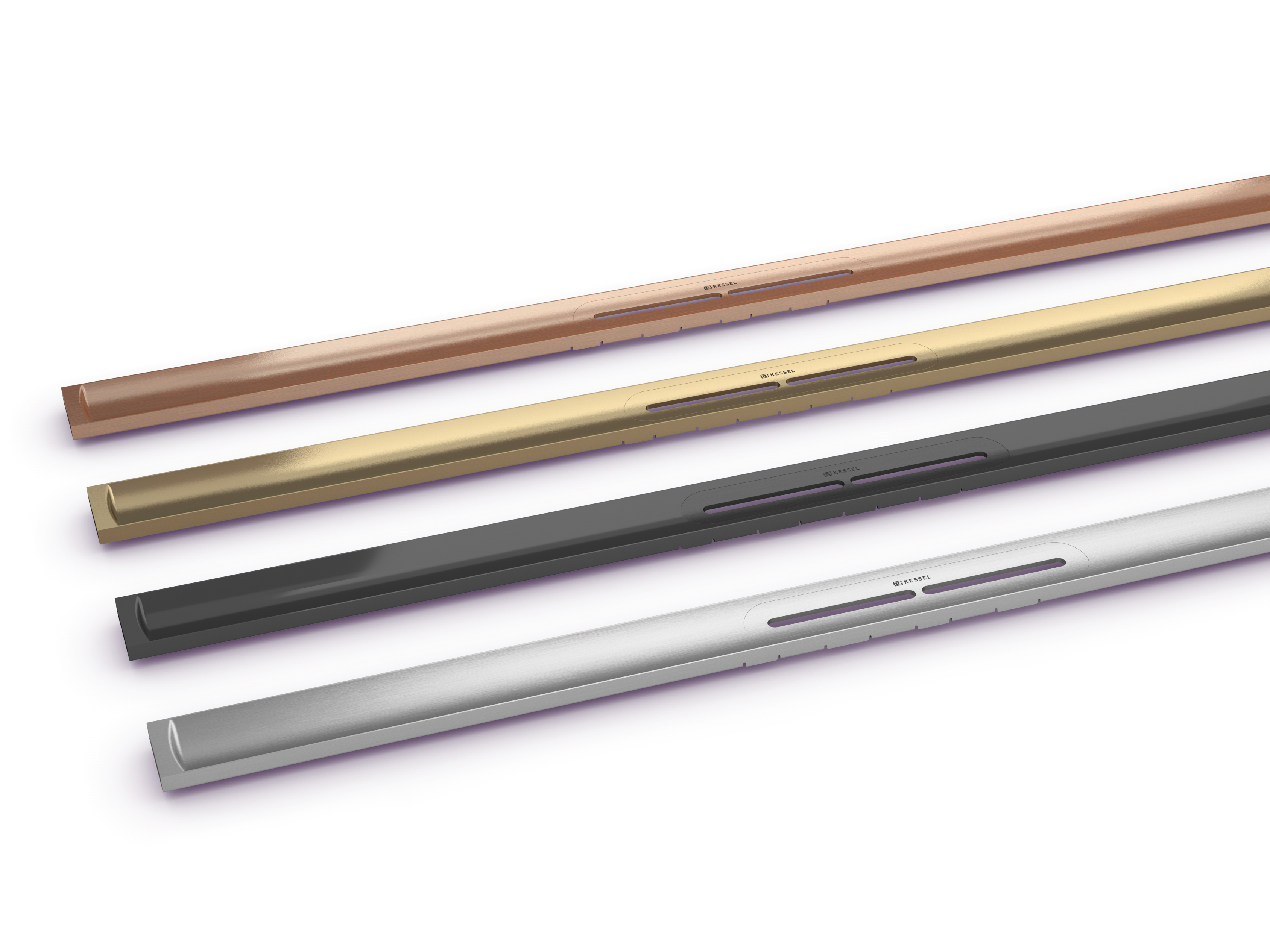

Stainless steel in elegant colours: brushed copper, brushed bronze, brushed black, brushed stainless steel

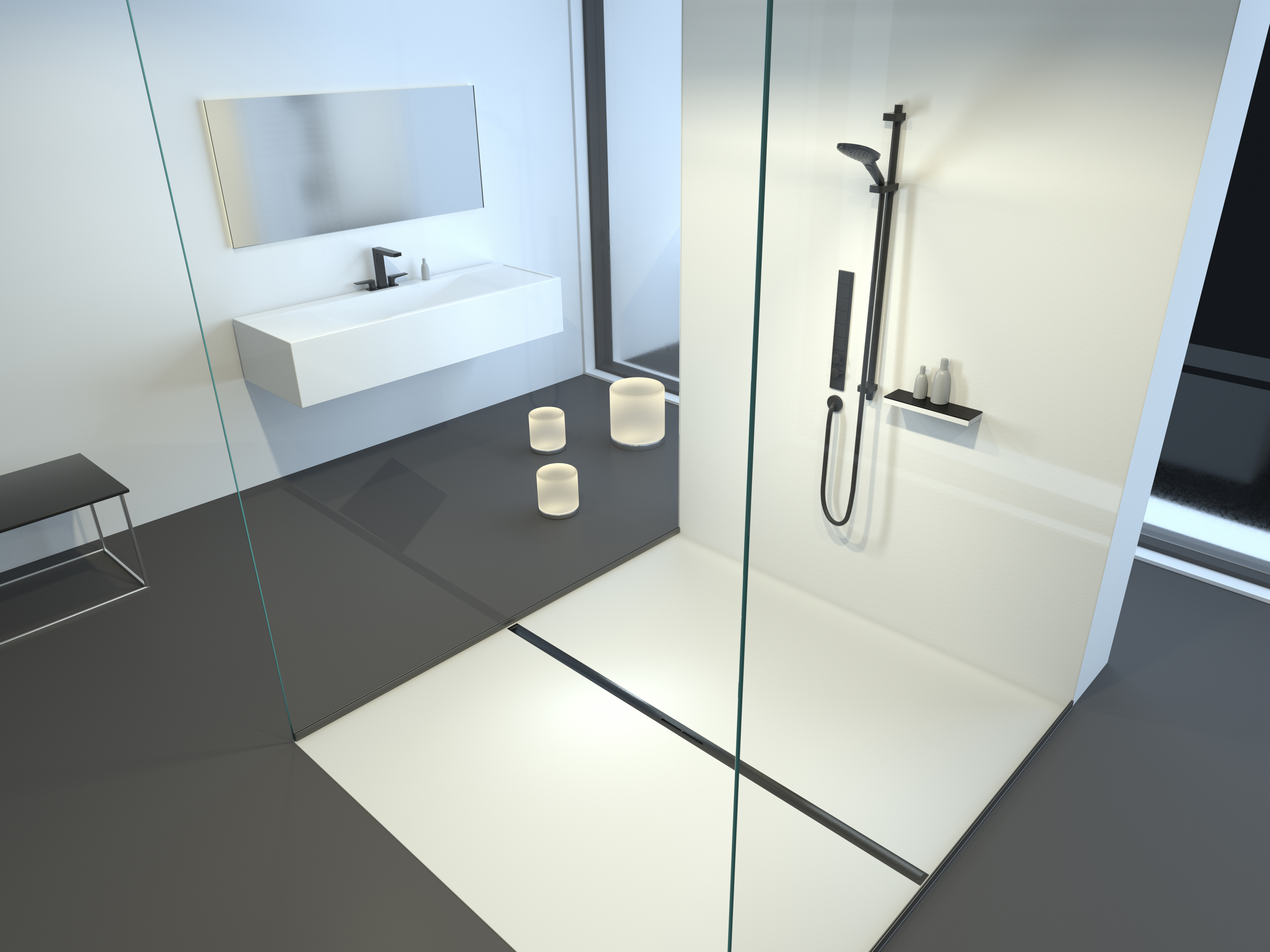

Installation diagram for the Linearis Infinity, brushed black surface, in a bathroom

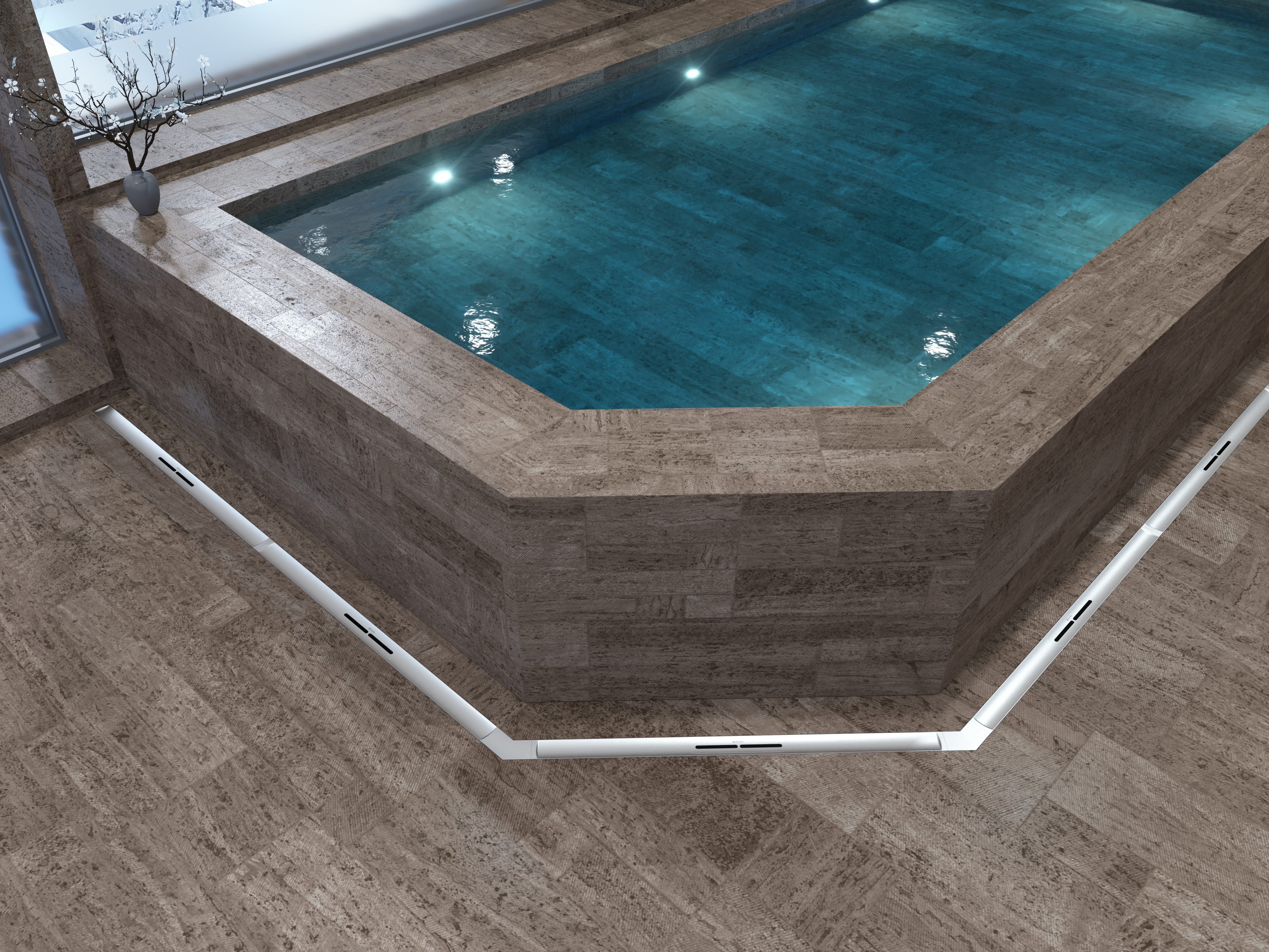

Installation diagram for the Linearis Infinity shower channel, stainless steel surface, in a wellness area

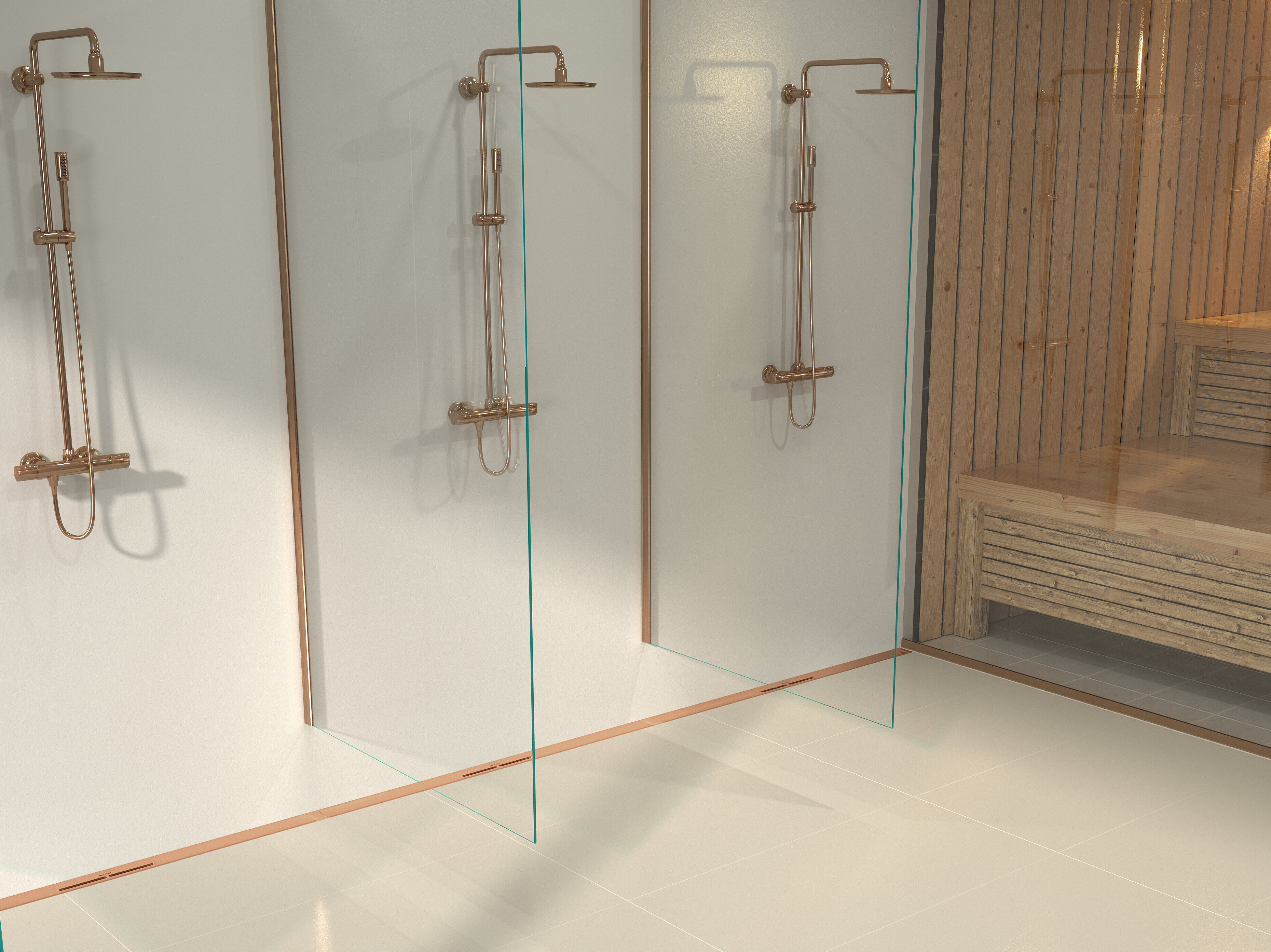

Installation diagram for the Linearis Infinity shower channel, brushed bronze surface, in a wellness area

Finally infinite

Our new shower channel made of AISI 316L stainless steel is not only infinitely elegant, but is also endlessly versatile. It is available in many colours and lengths, can be extended as required and even built around corners. The possibilities for individual bathroom design are finally infinite with the Linearis Infinity.

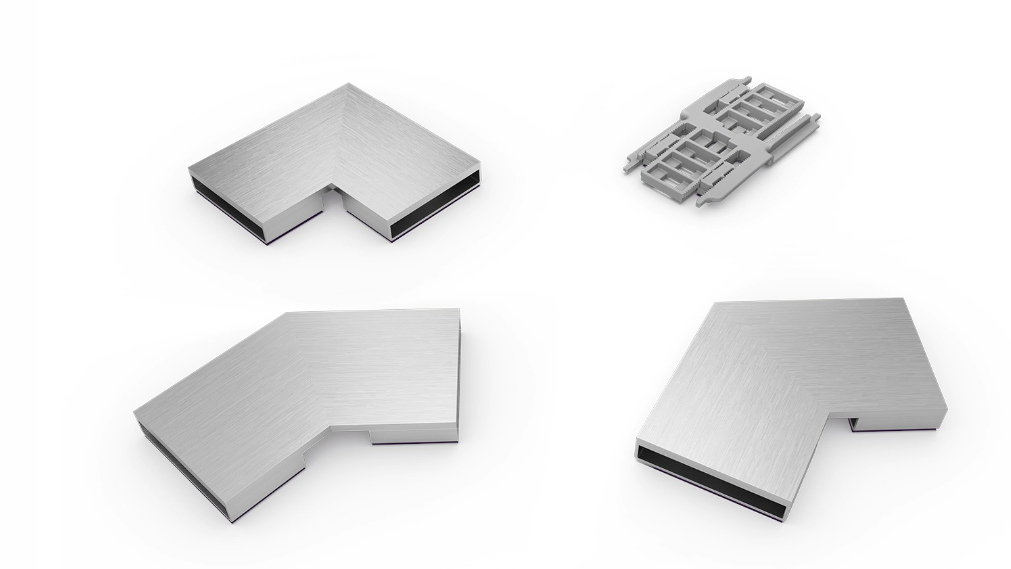

Connecting pieces with a 30, 45, and 90 degree angle

Versatile design options

Probably the most versatile shower channel in the world: With the help of the connecting pieces (optionally available) with a 30, 45 and 90 degree angle, any number of Linearis Infinity can be laid end-to-end and even around corners, as required. This, together with the the lowest installation height of all shower channels with a side outlet (60 mm) (alternatively, a 90 mm high version with a drainage capacity of 0.8 instead of 0.5 l is available), the upper section that can be adapted horizontally to the tile profile and the wide range of colours available, make it possible to realise even the most original bathroom ideas.

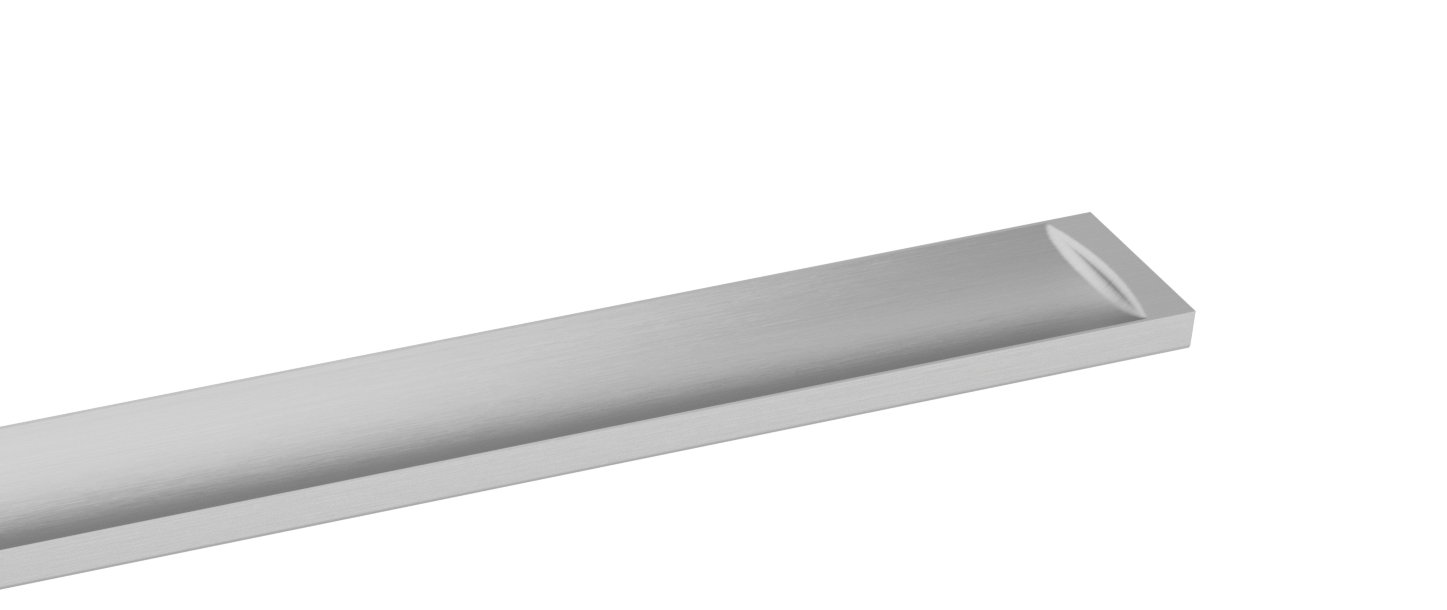

The insert of the Linearis is made of brushed or polished V4A stainless steel

AISI 316L stainless steel

The insert of the Linearis Infinity is made of brushed AISI 316L stainless steel. This material meets the highest requirements in terms of durability and anti-corrosion.

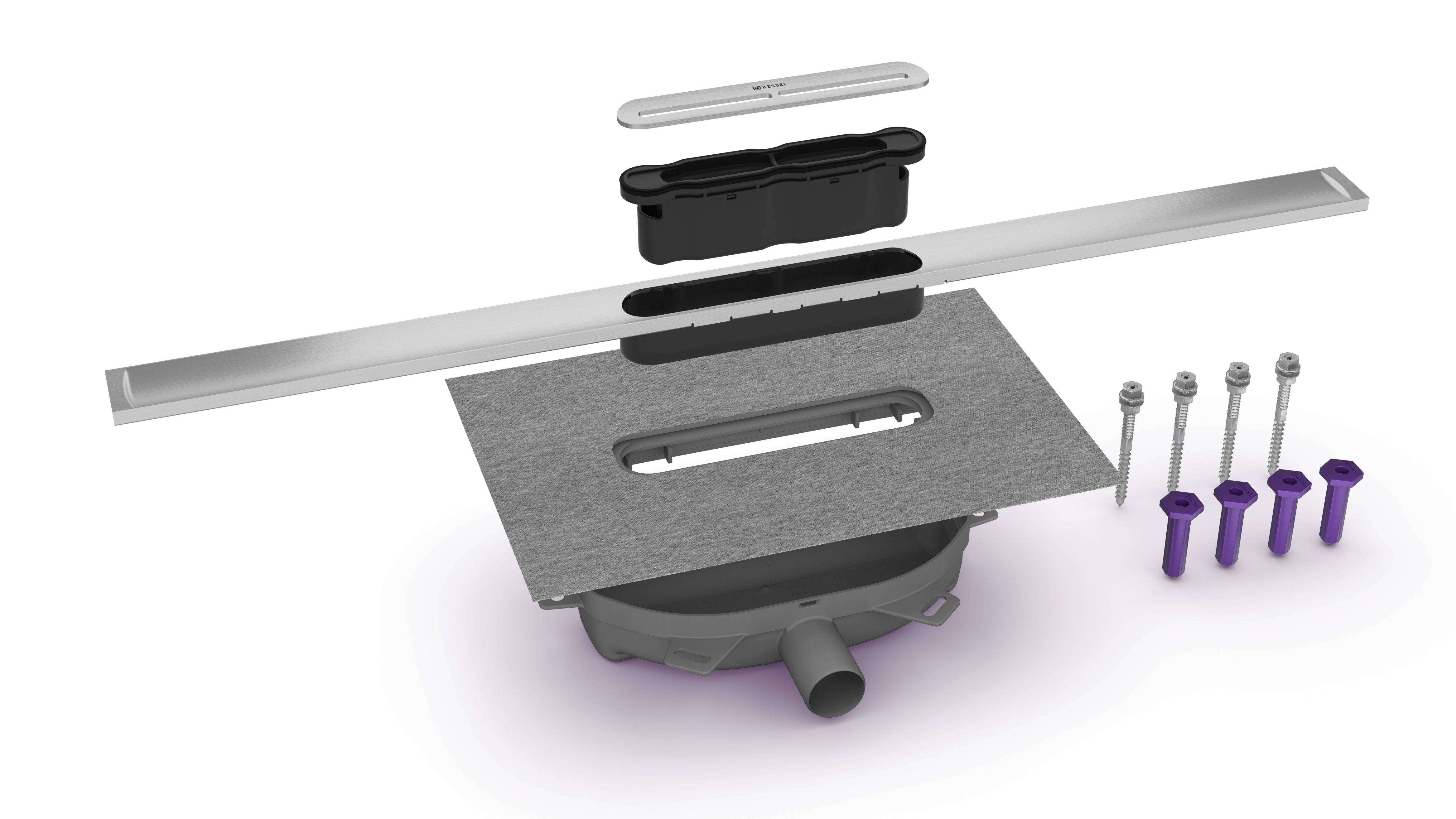

Ready-to-install complete set for the Linearis Infinity shower channel

Ready-to-install complete set

The Linearis Infinity comes with all the components needed for the installation. In addition to the shower channel itself and a factory-fitted waterproofing membrane, the all-in-one box also includes sound and settlement absorbers to minimise operating noise.

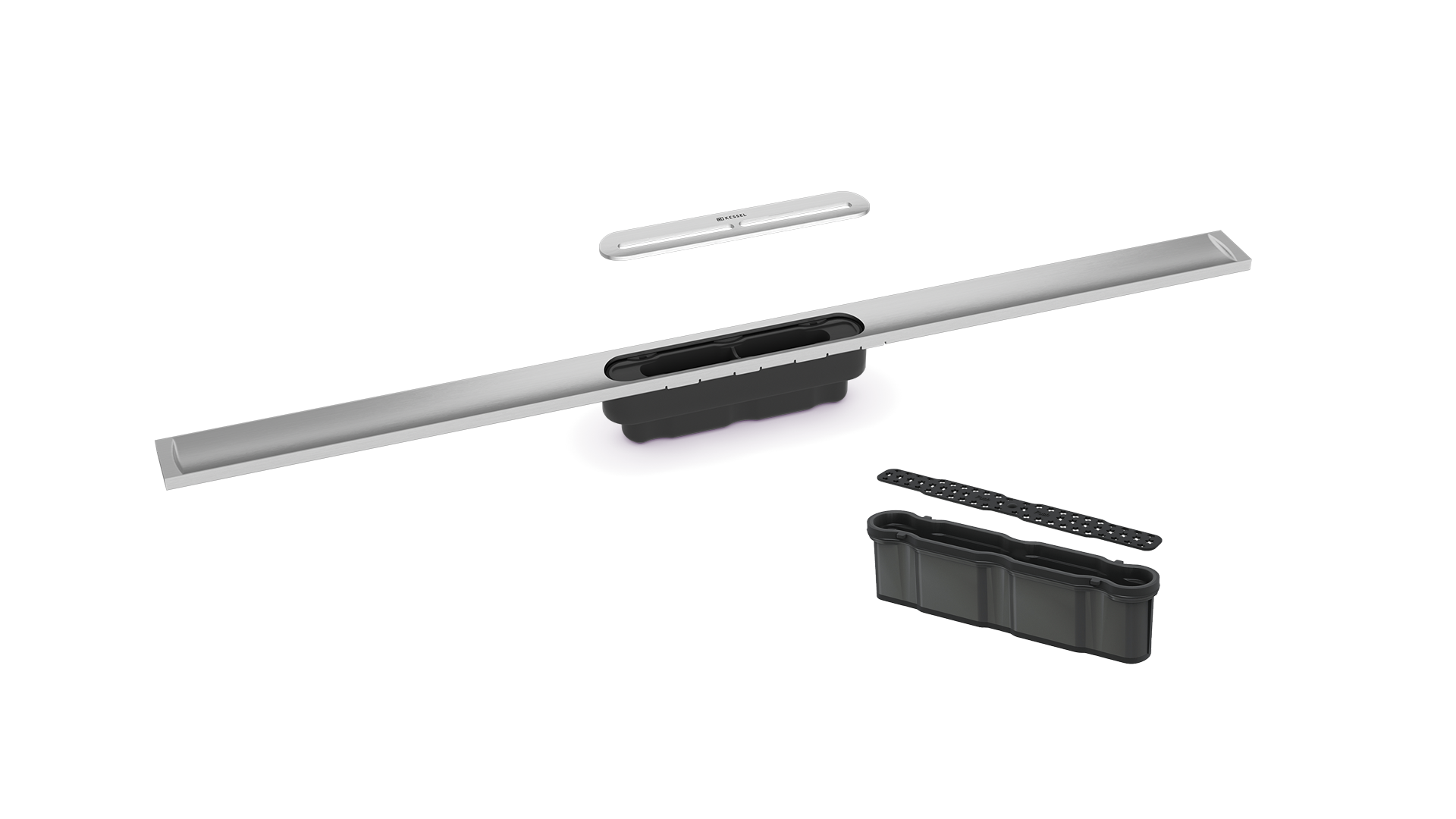

Shower channel Linearis Infinity with hair filter and Megastop

Hygienic & easy to maintain

Thanks to the easy-to-remove insert and hair filter, the drain is both easy to clean and maintain. The mechanical odour trap with the Megastop water seal protects against unpleasant odours, even if the shower is rarely used.

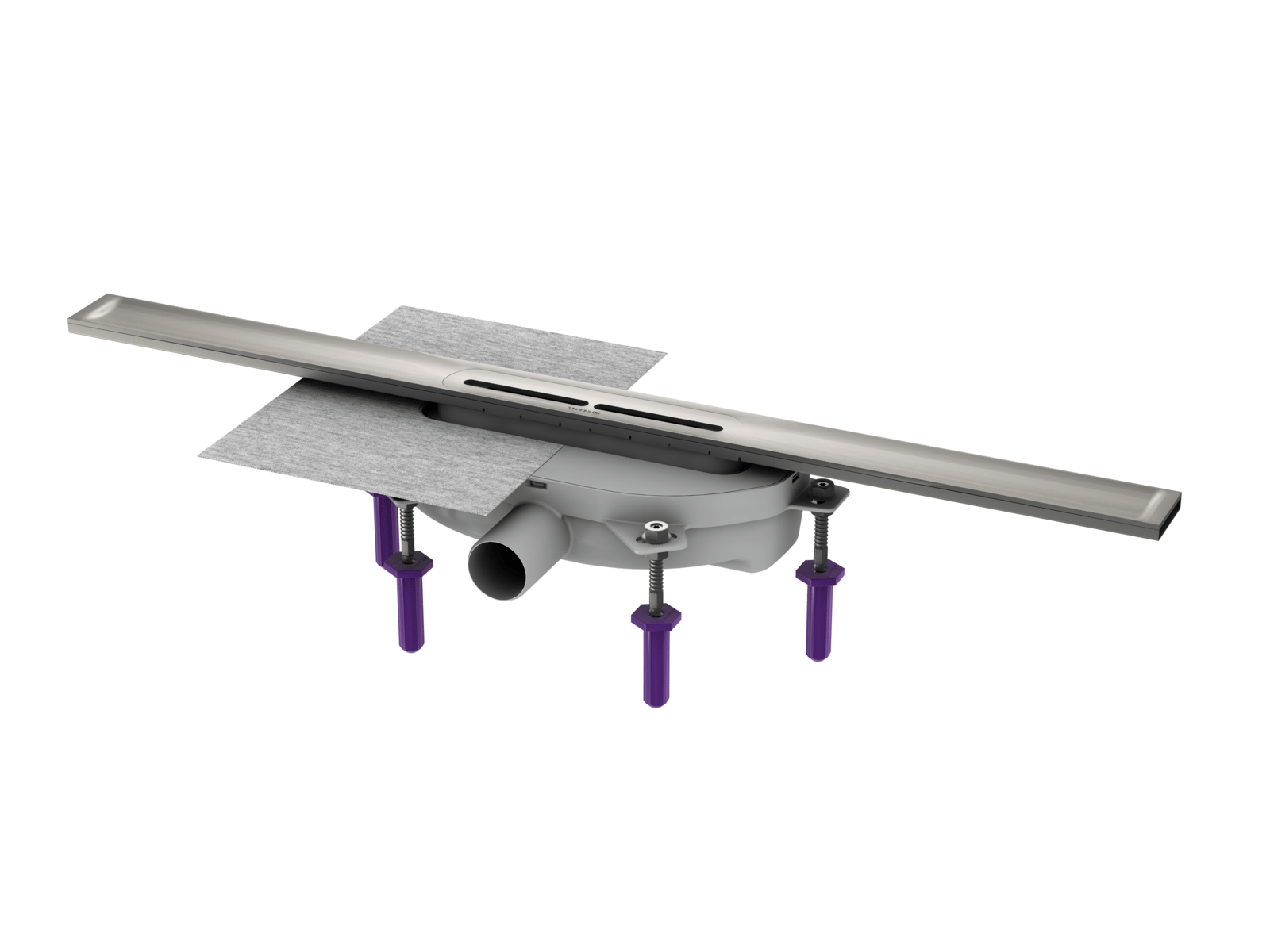

Linearis Infinity 60 shower channel

Stainless steel, brushed

  Load classOdour trapOutlet nominal size (DN)Length of cover Item no.
45300.0845300.08 K 3 (EN 1253-1) Megastop 40  mm 800  mm 45300.08
Show
45300.0945300.09 K 3 (EN 1253-1) Megastop 40  mm 900  mm 45300.09
Show
45300.1045300.10 K 3 (EN 1253-1) Megastop 40  mm 1.000  mm 45300.10
Show
45300.1145300.11 K 3 (EN 1253-1) Megastop 40  mm 1.100  mm 45300.11
Show
45300.1245300.12 K 3 (EN 1253-1) Megastop 40  mm 1.200  mm 45300.12
Show
45300.1445300.14 K 3 (EN 1253-1) Megastop 40  mm 1.400  mm 45300.14
Show
45300.1645300.16 K 3 (EN 1253-1) Megastop 40  mm 1.600  mm 45300.16
Show

Black, brushed

  Load classOdour trapOutlet nominal size (DN)Length of cover Item no.
45302.0845302.08 K 3 (EN 1253-1) Megastop 40  mm 800  mm 45302.08
Show
45302.0945302.09 K 3 (EN 1253-1) Megastop 40  mm 900  mm 45302.09
Show
45302.1045302.10 K 3 (EN 1253-1) Megastop 40  mm 1.000  mm 45302.10
Show
45302.1145302.11 K 3 (EN 1253-1) Megastop 40  mm 1.100  mm 45302.11
Show
45302.1245302.12 K 3 (EN 1253-1) Megastop 40  mm 1.200  mm 45302.12
Show

Copper, brushed

  Load classOdour trapOutlet nominal size (DN)Length of cover Item no.
45303.0845303.08 K 3 (EN 1253-1) Megastop 40  mm 800  mm 45303.08
Show
45303.0945303.09 K 3 (EN 1253-1) Megastop 40  mm 900  mm 45303.09
Show
45303.1045303.10 K 3 (EN 1253-1) Megastop 40  mm 1.000  mm 45303.10
Show
45303.1145303.11 K 3 (EN 1253-1) Megastop 40  mm 1.100  mm 45303.11
Show
45303.1245303.12 K 3 (EN 1253-1) Megastop 40  mm 1.200  mm 45303.12
Show

Bronze, brushed

  Load classOdour trapOutlet nominal size (DN)Length of cover Item no.
45304.0845304.08 K 3 (EN 1253-1) Megastop 40  mm 800  mm 45304.08
Show
45304.0945304.09 K 3 (EN 1253-1) Megastop 40  mm 900  mm 45304.09
Show
45304.1045304.10 K 3 (EN 1253-1) Megastop 40  mm 1.000  mm 45304.10
Show
45304.1145304.11 K 3 (EN 1253-1) Megastop 40  mm 1.100  mm 45304.11
Show
45304.1245304.12 K 3 (EN 1253-1) Megastop 40  mm 1.200  mm 45304.12
Show

Linearis Infinity 90 shower channel

Stainless steel, brushed

  Load classOdour trapOutlet nominal size (DN)Length of cover Item no.
45200.0845200.08 K 3 (EN 1253-1) with 50 mm water seal 50  mm 800  mm 45200.08
Show
45200.0945200.09 K 3 (EN 1253-1) with 50 mm water seal 50  mm 900  mm 45200.09
Show
45200.1045200.10 K 3 (EN 1253-1) with 50 mm water seal 50  mm 1.000  mm 45200.10
Show
45200.1145200.11 K 3 (EN 1253-1) with 50 mm water seal 50  mm 1.100  mm 45200.11
Show
45200.1245200.12 K 3 (EN 1253-1) with 50 mm water seal 50  mm 1.200  mm 45200.12
Show
45200.1445200.14 K 3 (EN 1253-1) with 50 mm water seal 50  mm 1.400  mm 45200.14
Show
45200.1645200.16 K 3 (EN 1253-1) with 50 mm water seal 50  mm 1.600  mm 45200.16
Show

Black, brushed

  Load classOdour trapOutlet nominal size (DN)Length of cover Item no.
45202.0845202.08 K 3 (EN 1253-1) with 50 mm water seal 50  mm 800  mm 45202.08
Show
45202.0945202.09 K 3 (EN 1253-1) with 50 mm water seal 50  mm 900  mm 45202.09
Show
45202.1045202.10 K 3 (EN 1253-1) with 50 mm water seal 50  mm 1.000  mm 45202.10
Show
45202.1145202.11 K 3 (EN 1253-1) with 50 mm water seal 50  mm 1.100  mm 45202.11
Show
45202.1245202.12 K 3 (EN 1253-1) with 50 mm water seal 50  mm 1.200  mm 45202.12
Show

Copper, brushed

  Load classOdour trapOutlet nominal size (DN)Length of cover Item no.
45203.0845203.08 K 3 (EN 1253-1) with 50 mm water seal 50  mm 800  mm 45203.08
Show
45203.0945203.09 K 3 (EN 1253-1) with 50 mm water seal 50  mm 900  mm 45203.09
Show
45203.1045203.10 K 3 (EN 1253-1) with 50 mm water seal 50  mm 1.000  mm 45203.10
Show
45203.1145203.11 K 3 (EN 1253-1) with 50 mm water seal 50  mm 1.100  mm 45203.11
Show
45203.1245203.12 K 3 (EN 1253-1) with 50 mm water seal 50  mm 1.200  mm 45203.12
Show

Bronze, brushed

  Load classOdour trapOutlet nominal size (DN)Length of cover Item no.
45204.0845204.08 K 3 (EN 1253-1) with 50 mm water seal 50  mm 800  mm 45204.08
Show
45204.0945204.09 K 3 (EN 1253-1) with 50 mm water seal 50  mm 900  mm 45204.09
Show
45204.1045204.10 K 3 (EN 1253-1) with 50 mm water seal 50  mm 1.000  mm 45204.10
Show
45204.1145204.11 K 3 (EN 1253-1) with 50 mm water seal 50  mm 1.100  mm 45204.11
Show
45204.1245204.12 K 3 (EN 1253-1) with 50 mm water seal 50  mm 1.200  mm 45204.12
Show

Not found the right product?

In addition to our standard drains and channels, we also develop customised solutions at the customer's request for special demands in terms of form, function and dimensioning.
