One for all: the Aqualift F Compact takes over the complete basement drainage. The lifting station conveys the wastewater, even black water, safely and completely automatically via the backwater level to the higher level sewage channel – even after a pipe burst or flooding – thanks to the integrated drainage function. The compact dimensions allow for an easy floor slab or exposed installation of the Aqualift F Compact. It is controlled by the Comfort control unit with the self-diagnosis system SDS that is supplied ready for connection.
The Aqualift F Compact is available in two versions, either for exposed or for floor slab installation – you can choose between a black cover or tileable cover for the latter. In addition, each device is available as a Mono or Duo lifting station.

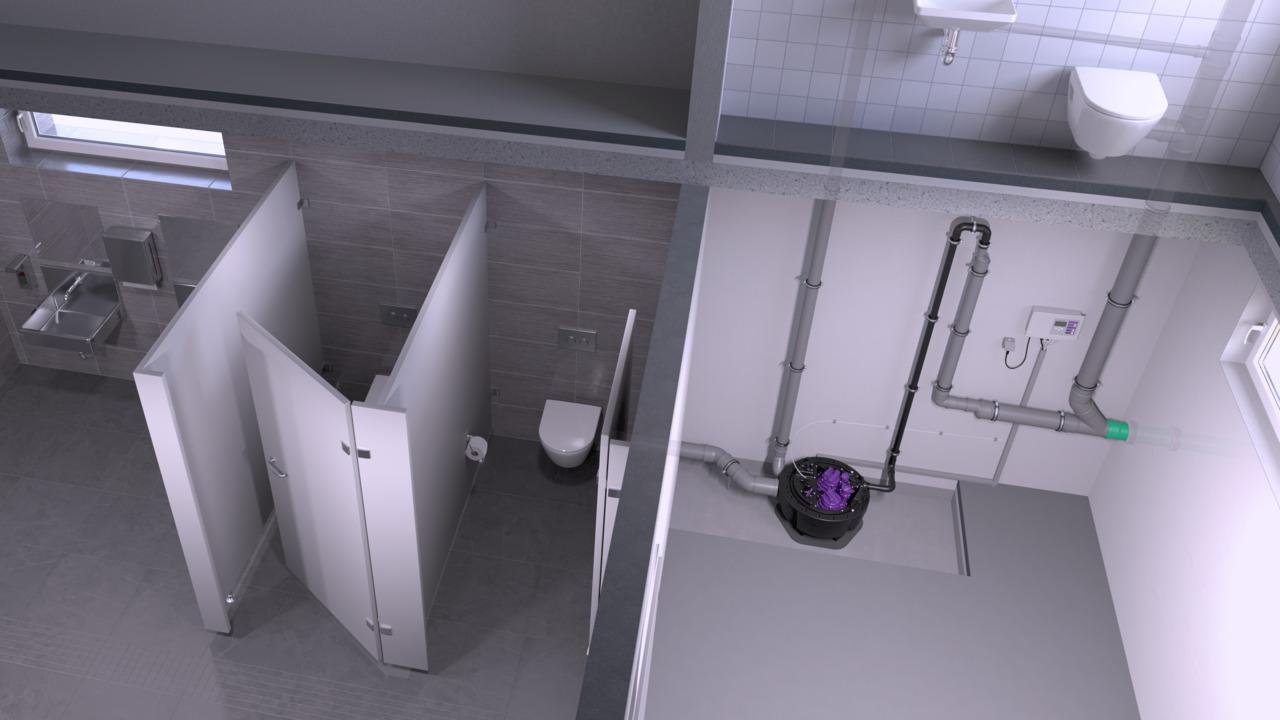

Installation illustration of Aqualift F Compact for free-standing installation.

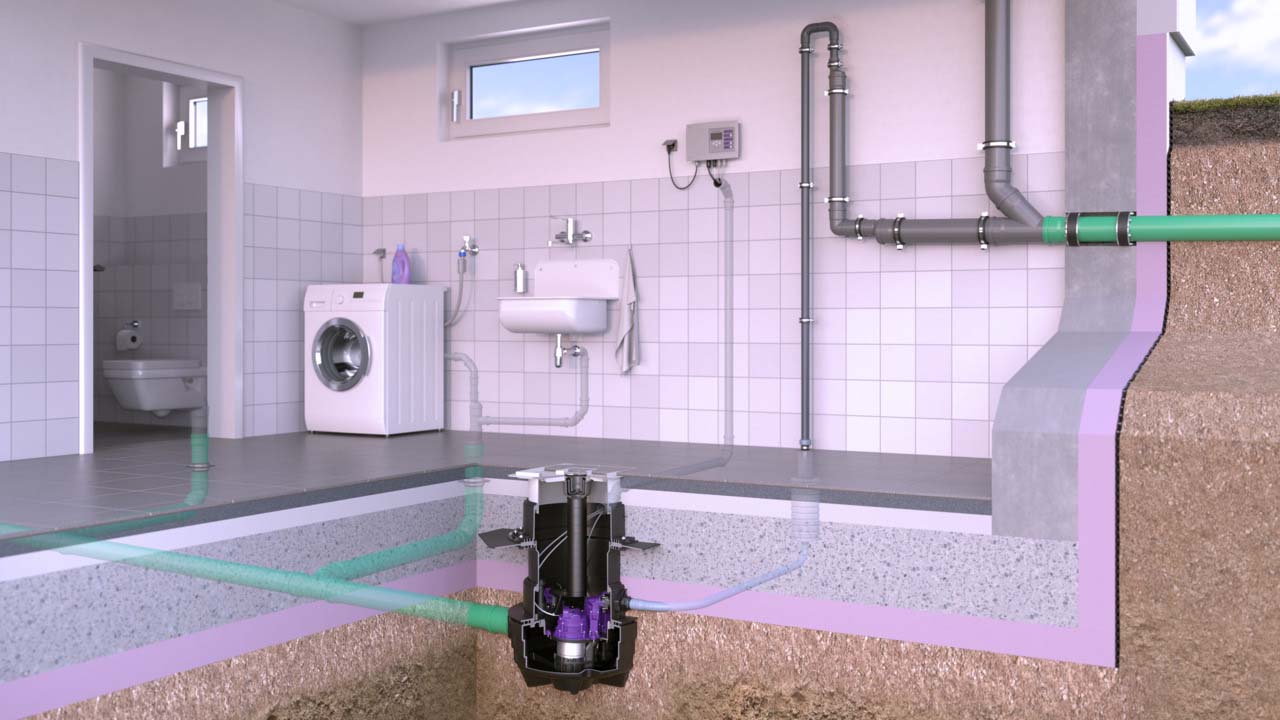

Installation illustration of Aqualift F Compact for installation in the floor slab.
Application possibilities
The compact lifting station Aqualift F Compact is available in two versions. Either for installation in the floor slab or for free-standing installation.
Floor slab installation
If the Aqualift F Compact is installed in the floor slab, an almost invisible lifting system is created. The drain integrated in the cover collects waste water. Even in the event of a pipe burst or flooding, the pump continuously disposes of this waste water, keeping the basement rooms dry.
Aqualift F Compact lifting station
Floor slab installation
| Pump | Installation depth | Type of wastewater | Type of cover | Odour trap | Item no. | |||
|---|---|---|---|---|---|---|---|---|
28701S | SPZ 1000 | 490 mm | with sewage | Cover plate with slotted cover | Multistop | 28701S | Show | |
28701SC | SPZ 1000 resistant | 490 mm | with sewage | Cover plate | Multistop | 28701SC | Show | |
28701X | SPZ 1000 | 490 mm | with sewage | tileable cover plate | Multistop | 28701X | Show | |
28701XC | SPZ 1000 resistant | 490 mm | with sewage | tileable cover plate | Multistop | 28701XC | Show |
| Pump | Type of wastewater | Type of cover | Item no. | |||
|---|---|---|---|---|---|---|
28704S | SPZ 1000 | with sewage | Cover plate with slotted cover | 28704S | Show | |
28704SC | SPZ 1000 resistant | with sewage | Cover plate with slotted cover | 28704SC | Show | |
28704X | SPZ 1000 | with sewage | tileable cover plate | 28704X | Show | |
28704XC | SPZ 1000 resistant | with sewage | tileable cover plate | 28704XC | Show |
Installation in an exposed drainage pipe
Shell and Technology Kits
| Pump | Type of cover | Item no. | ||
|---|---|---|---|---|
28700S-RBK | Cover plate with slotted cover | 28700S-RBK | Show | |
28700X-RBK | tileable cover plate | 28700X-RBK | Show |
| Control unit | Number of pumps | Resistant | Item no. | ||
|---|---|---|---|---|---|
28701-TK | Comfort | 1 | 28701-TK | Show | |
28701C-TK | Comfort | 1 | Resistant to saline media, wastewater from water softening systems and wastewater containing condensate from heating systems | 28701C-TK | Show |
28704-TK | Comfort | 2 | 28704-TK | Show | |
28704C-TK | Comfort | 2 | Resistant to saline media, wastewater from water softening systems and wastewater containing condensate from heating systems | 28704C-TK | Show |
Not found the right product?
In addition to our standard lifting stations, we develop individual solutions for special requirements – in terms of form, function and dimensioning – at the customer's request.
