The Aqualift F is the classic solution for disposing of domestic wastewater. The lifting station transports black water in addition to grey water. Depending on the version, the Aqualift F has one or two automatic pumps that switch on as soon as a certain water level has been reached in the tank and transports the wastewater through the pressure pipe into the sewer.
The Mono system is equipped with one pump and the Duo system has two pumps that operate alternately. Duo systems are used where no operational interruptions can occur due to the failure of a pump. Both system types are available with and without a shut-off valve and with pumps of different performance classes.

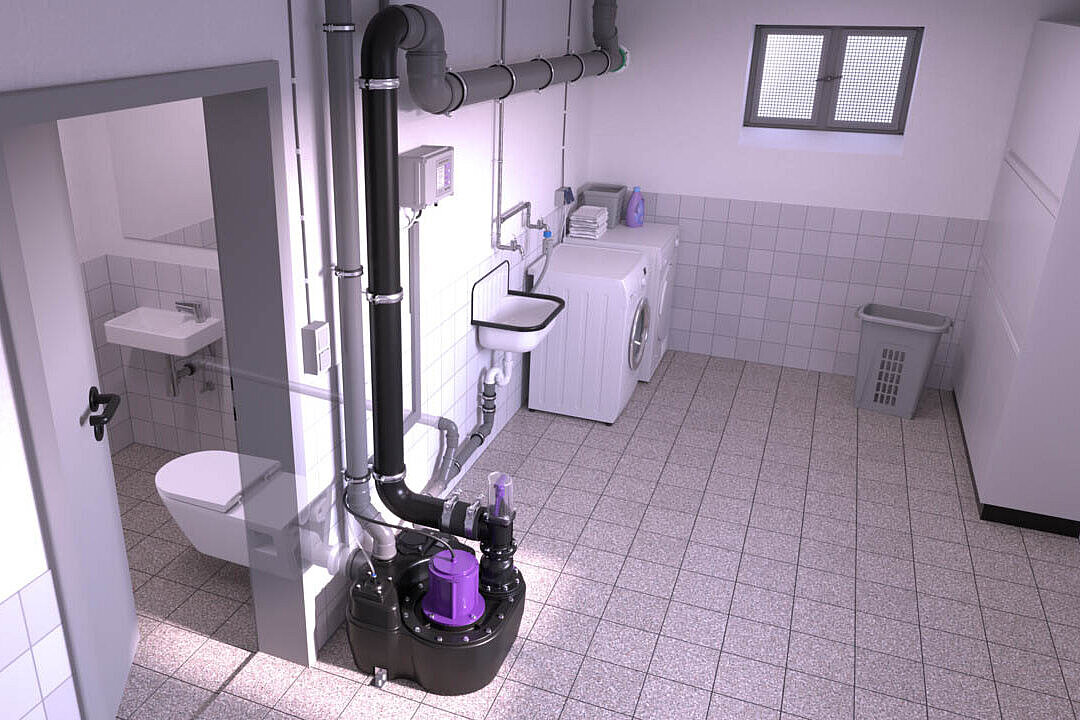

A guest toilet in the basement? No problem! The Aqualift F Mono is the perfect choice for the disposal of domestic wastewater.

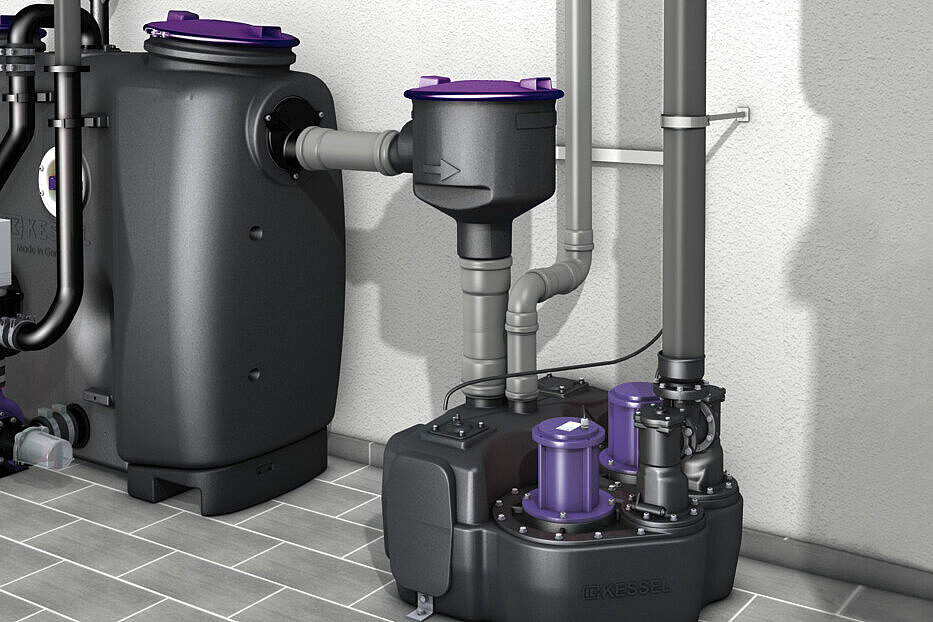

Grease separators are mandatory in commercial kitchens. In this case, the Aqualift F Duo can easily be combined with an EasyClean free grease separator.
Is a starch separator required in a food processing plant? The Aqualift F Duo can easily be installed downstream of the EasyStark starch separator.
Application possibilities
The Aqualift F is designed for above-ground installation and can be equipped with various pumps with a power range from 1,400 W to 3,000 W. The Mono version is ideal for sanitary connections. A Duo system is recommended for use downstream of a grease separator in the commercial sector where there must be no business interruptions. You can see how concrete installation situations can look here:

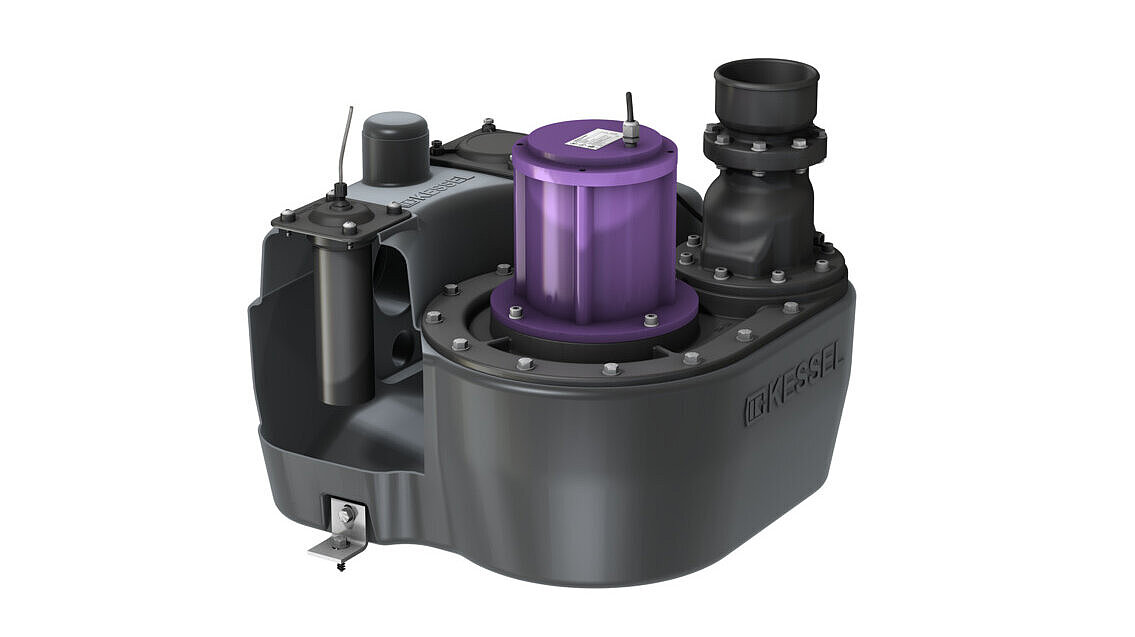

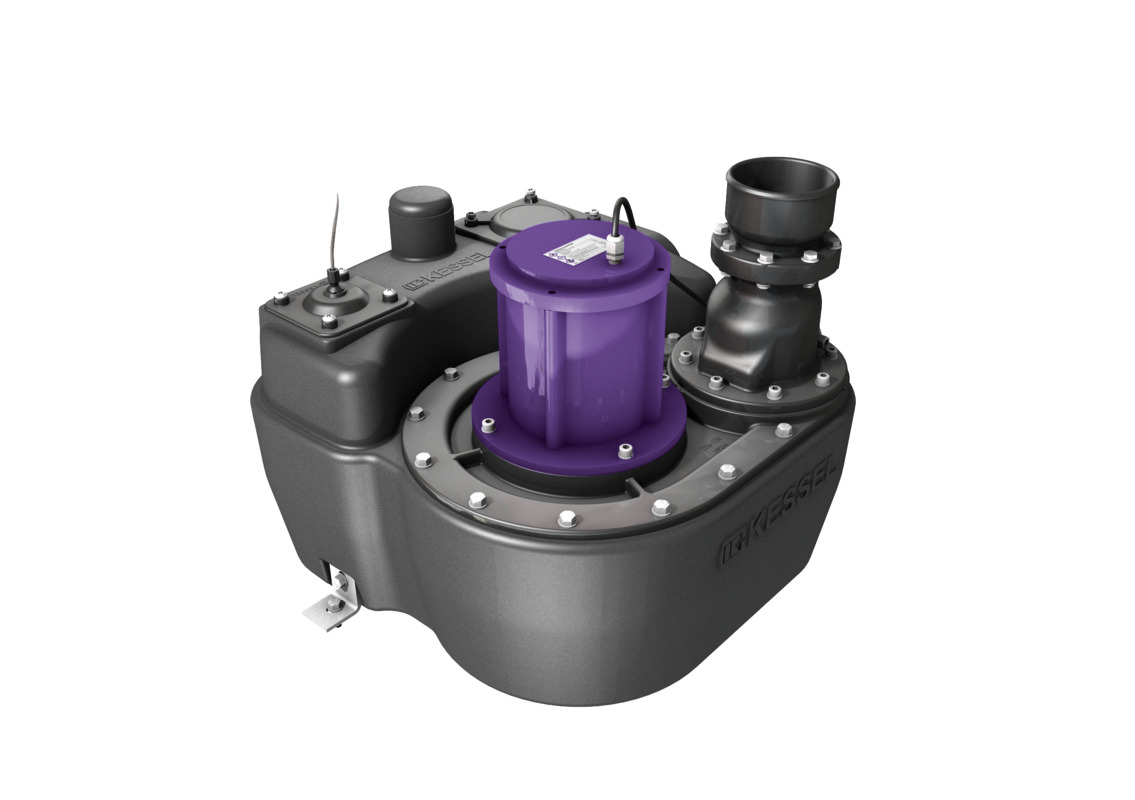

Aqualift F Mono lifting station
With Comfort control unit
| Pump | Type of wastewater | Impeller type | Shut-off valve | Item no. | ||
|---|---|---|---|---|---|---|
28646-C | SPF 1400-S3 | with sewage | Multi-vane impeller | without shut-off valve | 28646-C | Show |
28648-C | SPF 1400-S3 | with sewage | Multi-vane impeller | Shut-off valve made of polymer | 28648-C | Show |
28751 | SPF 1500-S3 | with sewage | Multi-vane impeller | without shut-off valve | 28751 | Show |
28752 | SPF 3000-S3 | with sewage | Multi-vane impeller | without shut-off valve | 28752 | Show |
28753 | SPF 1500-S3 | with sewage | Multi-vane impeller | Shut-off valve made of polymer | 28753 | Show |
28754 | SPF 3000-S3 | with sewage | Multi-vane impeller | Shut-off valve made of polymer | 28754 | Show |
With Standard control unit
| Pump | Type of wastewater | Impeller type | Shut-off valve | Item no. | ||
|---|---|---|---|---|---|---|
28644 | SPF 1500-S3 | with sewage | Multi-vane impeller | Shut-off valve made of polymer | 28644 | Show |
28645 | SPF 1500-S3 | with sewage | Multi-vane impeller | without shut-off valve | 28645 | Show |
28647 | SPF 3000-S3 | with sewage | Multi-vane impeller | without shut-off valve | 28647 | Show |
28649 | SPF 3000-S3 | with sewage | Multi-vane impeller | Shut-off valve made of polymer | 28649 | Show |
Aqualift F Duo lifting station
With Comfort control unit
| Pump | Type of wastewater | Impeller type | Shut-off valve | Item no. | ||
|---|---|---|---|---|---|---|
11604 | SPF 1500-S1 | with sewage | Multi-vane impeller | without shut-off valve | 11604 | Show |
11605 | SPF 1400-S1 | with sewage | Multi-vane impeller | without shut-off valve | 11605 | Show |
11606 | SPF 3000-S1 | with sewage | Multi-vane impeller | without shut-off valve | 11606 | Show |
11607 | SPF 1500-S1 | with sewage | Multi-vane impeller | Shut-off valve made of polymer | 11607 | Show |
11608 | SPF 1400-S1 | with sewage | Multi-vane impeller | Shut-off valve made of polymer | 11608 | Show |
11609 | SPF 3000-S1 | with sewage | Multi-vane impeller | Shut-off valve made of polymer | 11609 | Show |
28628-C | SPF 1400-S3 | with sewage | Multi-vane impeller | without shut-off valve | 28628-C | Show |
28629-C | SPF 1400-S3 | with sewage | Multi-vane impeller | Shut-off valve made of polymer | 28629-C | Show |
28764 | SPF 1500-S3 | with sewage | Multi-vane impeller | without shut-off valve | 28764 | Show |
28765 | SPF 3000-S3 | with sewage | Multi-vane impeller | without shut-off valve | 28765 | Show |
28766 | SPF 1500-S3 | with sewage | Multi-vane impeller | Shut-off valve made of polymer | 28766 | Show |
28767 | SPF 3000-S3 | with sewage | Multi-vane impeller | Shut-off valve made of polymer | 28767 | Show |
With Standard control unit
| Pump | Type of wastewater | Impeller type | Shut-off valve | Item no. | ||
|---|---|---|---|---|---|---|
11600 | SPF 1500-S1 | with sewage | Multi-vane impeller | without shut-off valve | 11600 | Show |
11601 | SPF 3000-S1 | with sewage | Multi-vane impeller | without shut-off valve | 11601 | Show |
11602 | SPF 1500-S1 | with sewage | Multi-vane impeller | Shut-off valve made of polymer | 11602 | Show |
11603 | SPF 3000-S1 | with sewage | Multi-vane impeller | Shut-off valve made of polymer | 11603 | Show |
28631 | SPF 3000-S3 | with sewage | Multi-vane impeller | Shut-off valve made of polymer | 28631 | Show |
28634 | SPF 3000-S3 | with sewage | Multi-vane impeller | without shut-off valve | 28634 | Show |
28652 | SPF 1500-S3 | with sewage | Multi-vane impeller | without shut-off valve | 28652 | Show |
28659 | SPF 1500-S3 | with sewage | Multi-vane impeller | Shut-off valve made of polymer | 28659 | Show |
