Lifting station Aqualift F
Mono, Standard, SPF 3000-S3,shut-off val

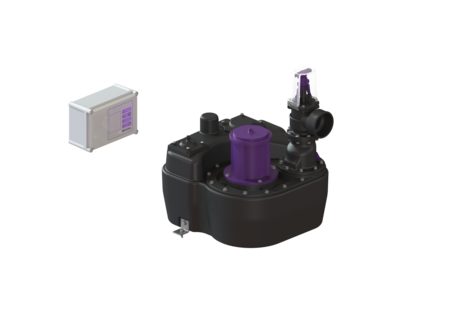

KESSEL Lifting station Aqualift F Mono, wastewater with sewage, control unit Standard, free-standing installation, Single unit, with a submersible SPF 3000-S3 pump, shut-off valve Shut-off valve made of polymer, pressure pipe connection horizontal
- Different performance classes available
- Pressure sensor for reliable pneumatic level measurement
- Including sound absorption mat
| Item no. | 28649 |
|---|---|
| GTIN | 4026092007686 |
| Price group | 20 |
Lifting station Aqualift F Mono, Standard, SPF 3000-S3,shut-off val
The lifting station for faecal and faecal-free wastewater is equipped with a submersible pump and a backflow preventer. The collection tank made of permanently resistant polymer (PE) offers universal connection options and has a screwed access cover. Variant Type of system: Single unit Shut-off valve: Shut-off valve made of polymer Retaining bracket for the lift protection: yes Sound absorption mat: yes Pump control: Control unit Backflow preventer: integrated Pressure pipe connection: horizontal General characteristics Colour: black Standard: EN 12050-1 Type of wastewater: with sewage Installation situation: free-standing installation Delivery state: Installation-ready (electrical components, connection parts must be connected on site) System type: Mono Dimensions Net weight: 49,16 kg Gross weight: 50,45 kg Length: 564 mm Width: 525 mm Height: 664 mm Packaging dimension: length: 645 mm Packaging dimension: width: 530 mm Packaging dimension: height: 570 mm Tank/drain body Pressure pipe connection (DN): 100 Pressure pipe connection (OD): 110 mm Connection for manual diaphragm pump (DN): 32 Venting connection (DN): 70 Distance from centre of outlet pipe to tank bottom: 466 mm Distance pipe bottom inlet to tank bottom: 125 mm Distance from centre of inlet pipe to tank bottom: 180 mm Inlet max. scoring (DN): 150 mm Inlet nominal size (OD): 110 mm Inlet nominal size (DN): 100 mm Number of inlets: 1 Pumping volume: 20 l Tank volume: 50 l Pumping device Pump: SPF 3000-S3 Number of pumps: 1 Weight, pump: 24 kg Connection type: Direct connection Rated current: 5,4 A Protection class: I Insulation class: F Cos phi - power factor: 0,89 Protection class (pump): IP 68 (3m/48h) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 47 m³/h Max. pumping height: 16 m Speed: 2845 U/min Power P1: 3,2 kW Power P2: 2,7 kW Operating mode: S3 - 50 % Type of pump connection cable: H07RN-F 7G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 40 mm Length of mains cable for pump: 5 m Control Control unit: Standard Motor protection switch: yes Alarm sensor: Immersion pipe Level measurement instrument: Immersion pipe Type of level measurement: pneumatic Protection class control unit: IP 54 Operating voltage: 400 V Connection type: Direct connection Potential-free contact: yes Log book function: yes Multi-line display: no Battery buffering: yes Self-diagnosis system (SDS): yes
