Flange joint
DN 80, for polymer fittings
KESSEL Flange joint DN 80, for polymer fittings, black
| Item no. | 28713 |
|---|---|
| GTIN | 4026092072813 |
| Price group | 20 |

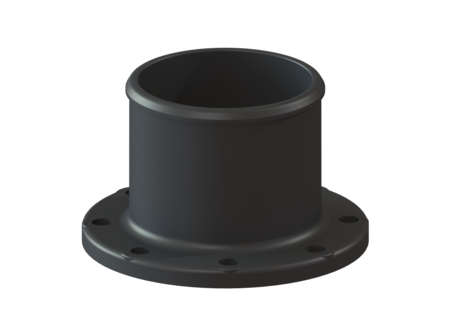

Flange joint DN 80, for polymer fittings
Flange joint for transmission from polymer fittings with pitch diameter 115 mm to spigot 98 mm, suitable for lifting stations. Supplied without seal and screws. General characteristics Colour: black Material: Polymer Nominal size (DN): 80 Outer diameter (OD): 90 mm ATEX: no Dimensions Net weight: 0,17 kg Gross weight: 0,26 kg Height: 80 mm Packaging dimension: length: 215 mm Packaging dimension: width: 190 mm Packaging dimension: height: 120 mm
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
- Nominal size (DN) (nennweite):
80
- Material (material):
Polymer
