Aquapump Small pumping station

The economical solution for private households

When it comes to the disposal of wastewater outdoors, the Aquapump Small pumping station is the economical solution for detached and semi-detached houses. It offers modern “made in Germany” technology in a compact tank at an unbeatable price.

The Aquapump Small pumping station is available either as a Mono or Duo system with or without a control unit. An optional upper section makes it particularly flexible for underground installation.

Pumping station Aquapump Small Mono
Pumping station Aquapump Small Duo
Pumping station Aquapump Small Mono with control unit
Pumping station Aquapump Small Duo with control unit

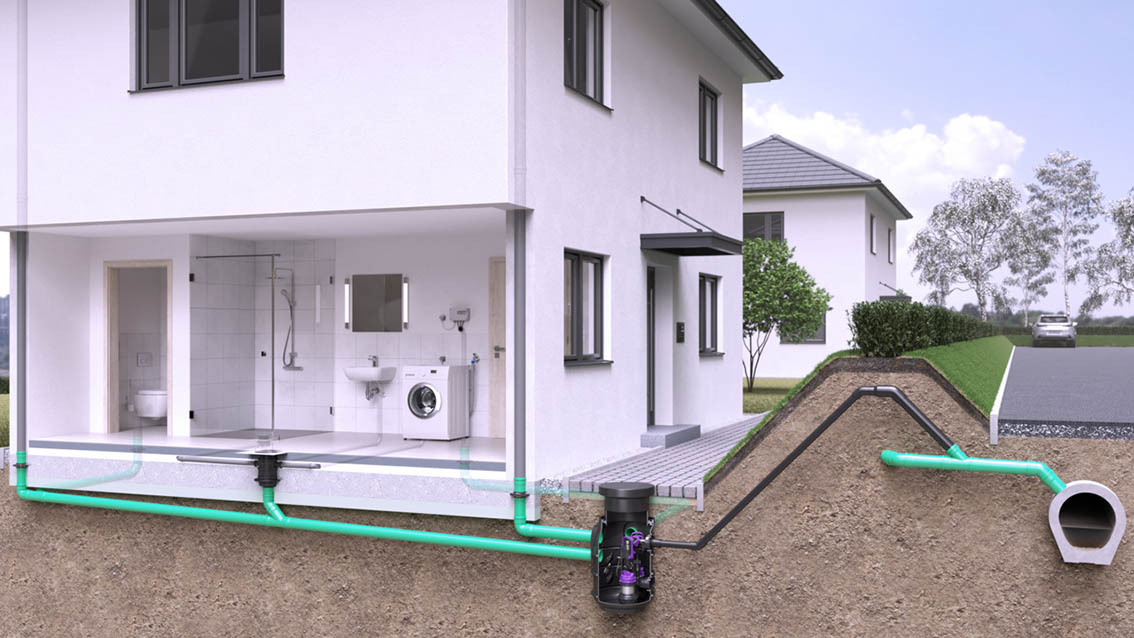

If a toilet is located in the basement of a detached house, the Aquapump Small pumping station is the perfect choice for faecal wastewater.

If there is a laundry room or a shower in the basement, the Aquapump Small is recommended for faecal-free wastewater.

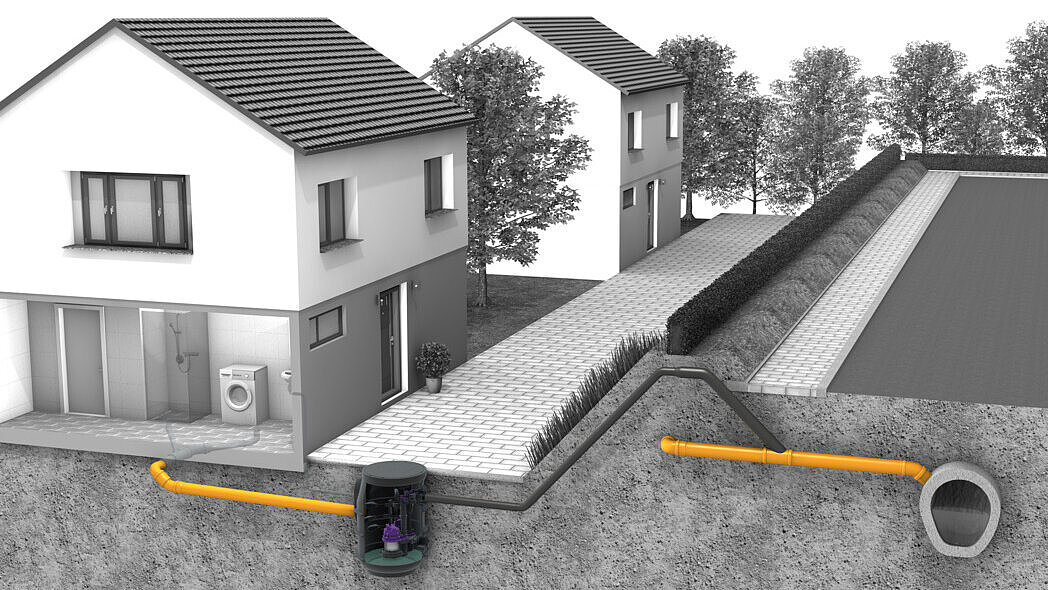

Application possibility

Whether in a detached or semi-detached house, for faecal-free or faecal wastewater and equipped with one or two pumps: The Aquapump Small pumping station is an all-rounder for the private sector. It is designed for underground installation – invisible to the eye and highly effective. The Aquapump Small offers convincing advantages in the following exemplary situations:


Warranty for KESSEL polyethylene tanks

100% waterproof and odour-tight

Like all KESSEL chambers, the tank of the Aquapump Small pumping station is also absolutely waterproof and odour-tight. This is what we stand for with our guarantee that we have voluntarily extended to 20 years.

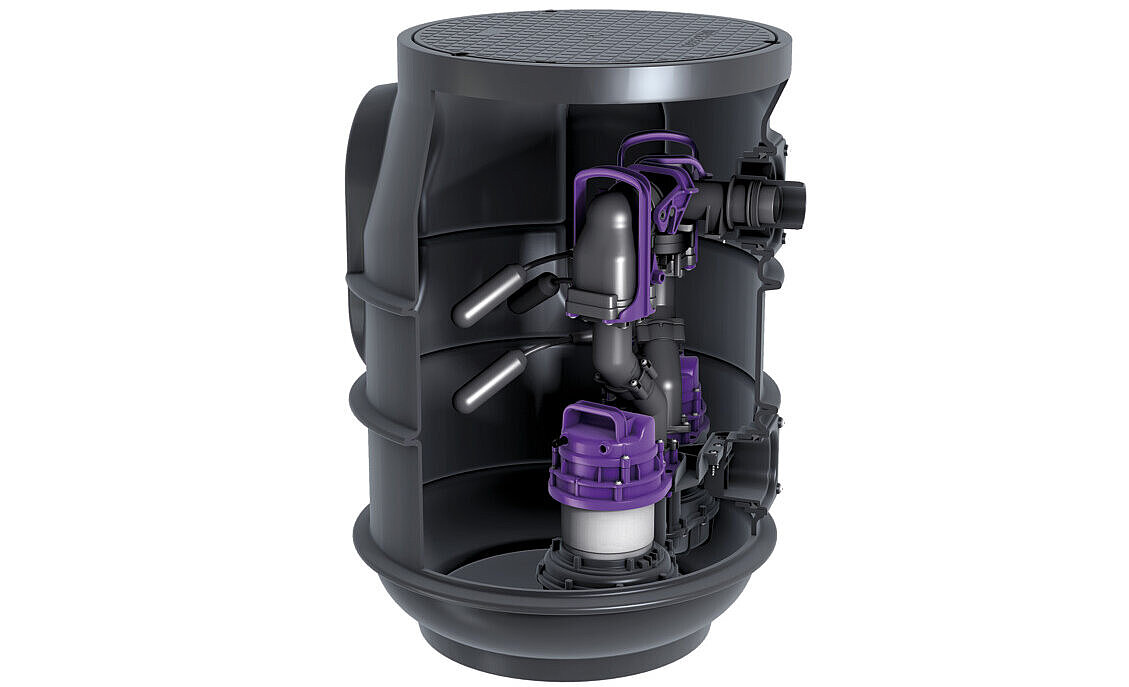

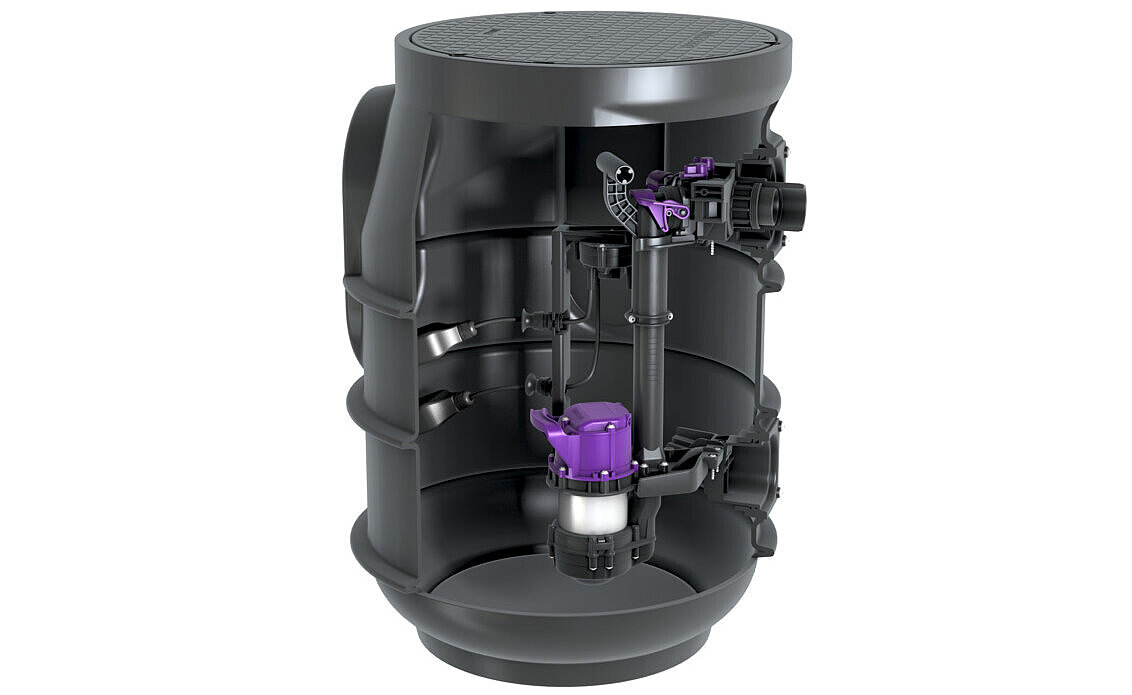

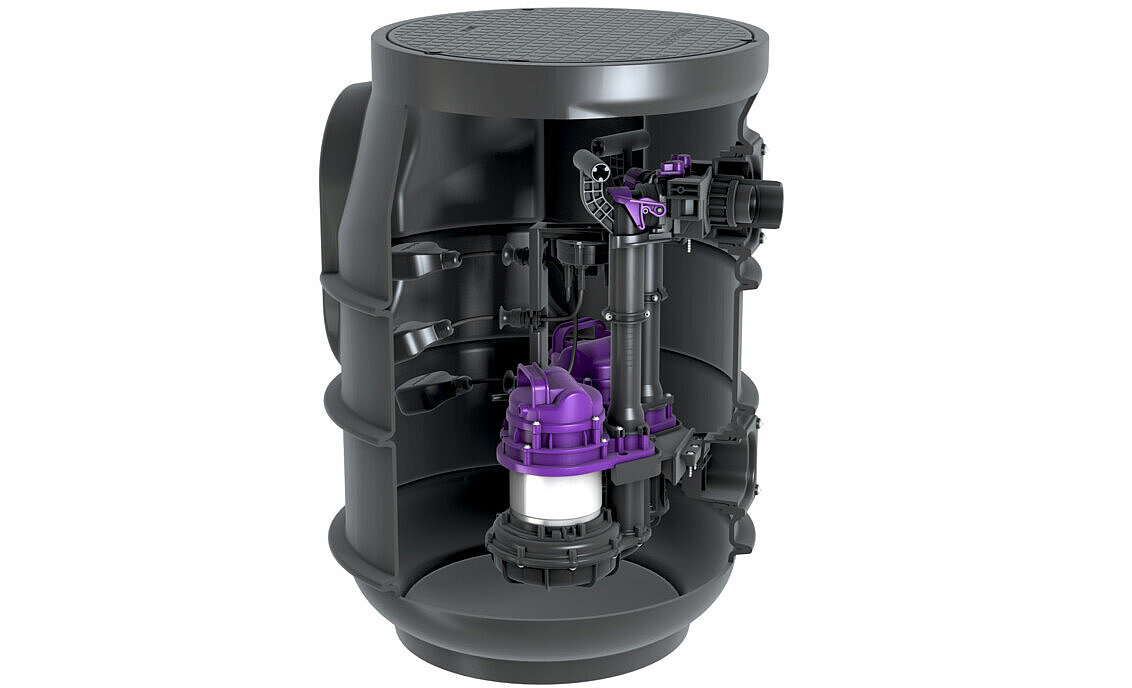

Isolated pump for Aquapump Small pumping station

Suspended pump bearings

The version for faecal-free wastewater has either one or two GTF 600 or GTF 1250 type suspended pumps. The sound decoupling of the tank reduces the noise level during operation. The non-clogging multi-vane vortex impeller with a 30 mm free ball passage provides for added safety.

The version for faecal wastewater works with either one or two STF 1300 type suspended pumps. The diameter of the ball passage is 40 mm.

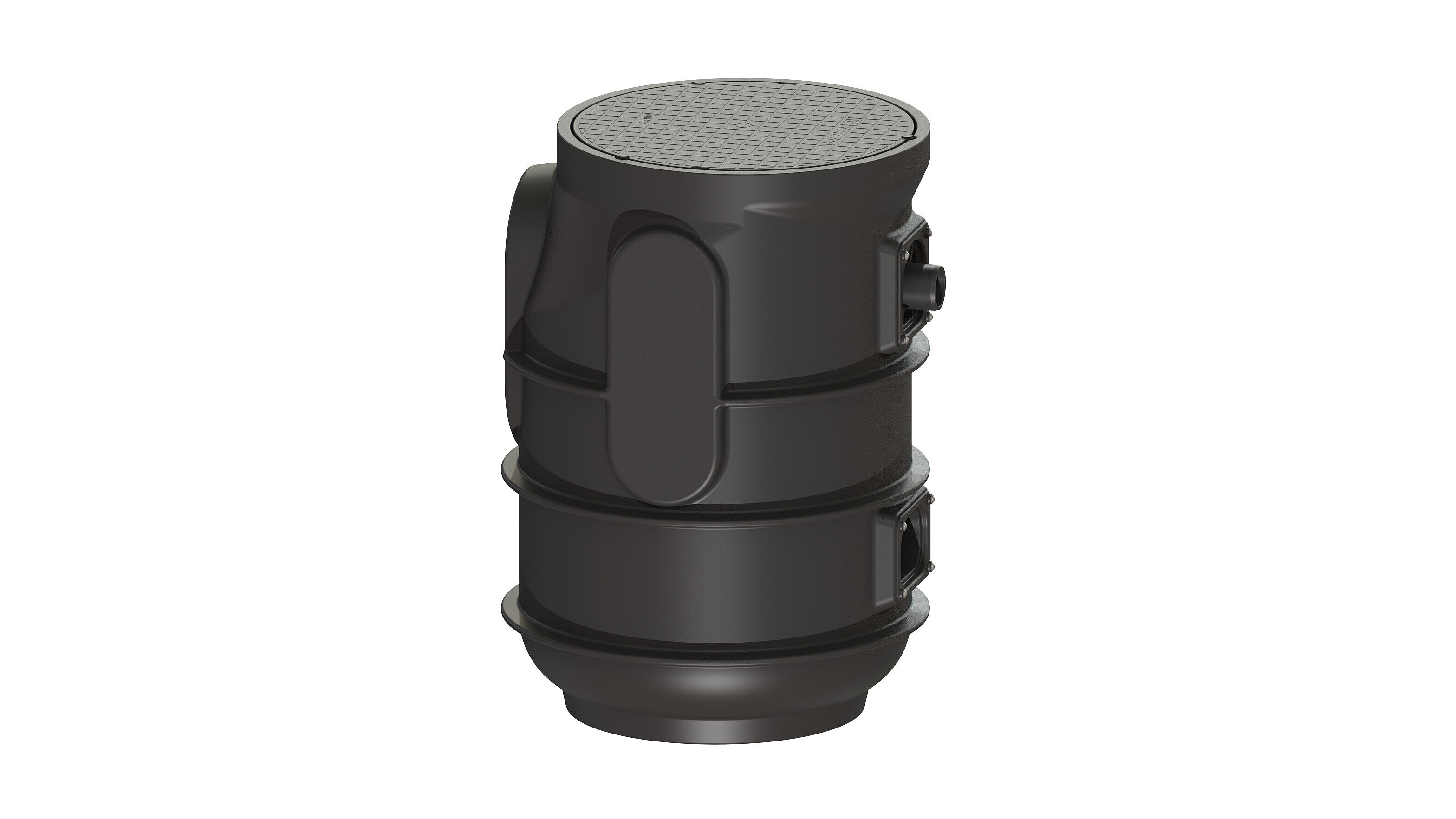

Drilling surfaces for Aquapump Small pumping station

Pre-scored drilling surfaces

Additional connections for the ventilation pipe, inlet and outlet pipe can be made at the pre-scored drilling surfaces on the side.

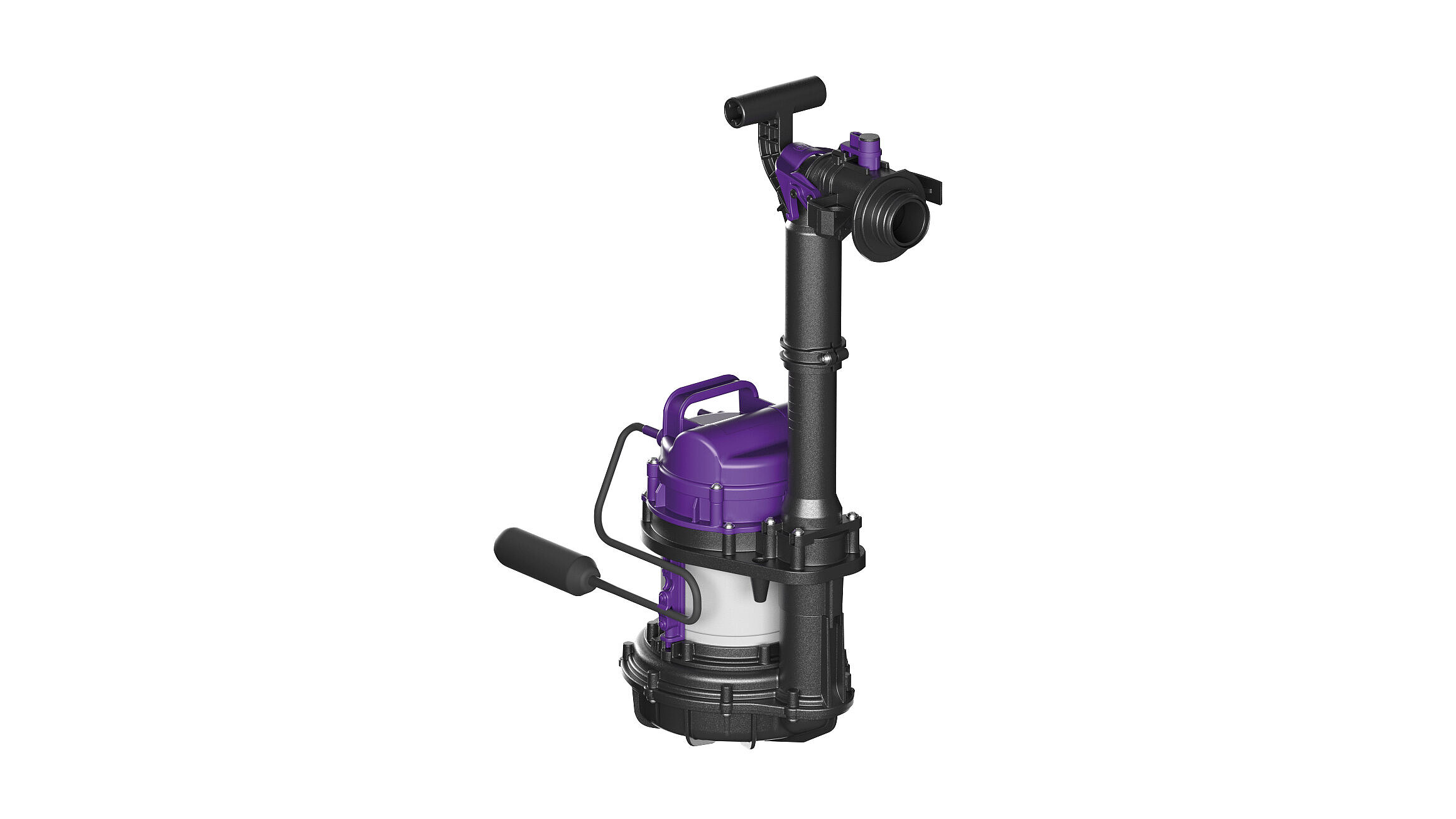

Aquapump Small pumping station

Tool-free maintenance

The pump(s) is/are particularly easy to remove and maintain thanks to quick-release closures.

Aquapump Small pumping station (faecal)

Single station

  Load classPumpType of wastewaterImpeller typeControl unit Item no.
829710829710 up to 300 kg STF 1300 for wastewater with and without sewage Multi-vane impeller 829710
Show
829711829711 up to 300 kg STF 1300 for wastewater with and without sewage Multi-vane impeller Basic 829711
Show

Twin pump station

  Load classPumpType of wastewaterImpeller typeControl unit Item no.
828711828711 up to 300 kg STF 1300 for wastewater with and without sewage Multi-vane impeller Basic 828711
Show

Aquapump Small pumping station (non-faecal)

Single station

  Load classPumpType of wastewaterImpeller typeControl unit Item no.
829810829810 up to 300 kg GTF 600 without sewage Multi-vane impeller 829810
Show
829811829811 up to 300 kg GTF 600 without sewage Multi-vane impeller Basic 829811
Show
829850829850 up to 300 kg GTF 1250 without sewage Multi-vane impeller 829850
Show
829851829851 up to 300 kg GTF 1250 without sewage Multi-vane impeller Basic 829851
Show

Twin pump station

  Load classPumpType of wastewaterImpeller typeControl unit Item no.
828811828811 up to 300 kg GTF 600 without sewage Multi-vane impeller Basic 828811
Show
828851828851 up to 300 kg GTF 1250 without sewage Multi-vane impeller Basic 828851
Show

Not found the right product?

In addition to our standard pumping stations, we develop individual solutions for special requirements – in terms of form, function and dimensioning – at the customer's request.

Customised solutions
