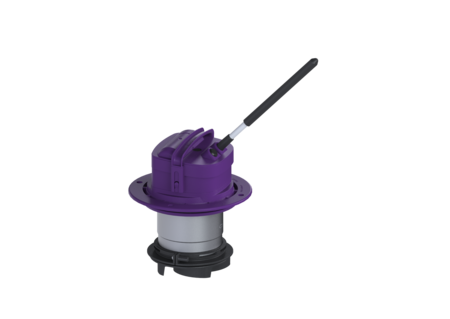

Replacement pump SPF 2900
400 V, S3, 5 m cable
Pump drive with multi-vane impeller for wastewater with sewage.
| Item no. | 681247 |
|---|---|
| GTIN | 4026092109663 |
| Price group | 90 |
Replacement pump SPF 2900 400 V, S3, 5 m cable
Pump drive with multi-vane impeller for wastewater with sewage. Dimensions Net weight: 11,3 kg Gross weight: 11,8 kg Packaging dimension: length: 378 mm Packaging dimension: width: 322 mm Packaging dimension: height: 280 mm Pumping device Pump: SPF 2900 Weight, pump: 11,3 kg Connection type: Direct connection Operating voltage: 400 V Rated current: 5 A Protection class: I Insulation class: F Protection class (pump): IP 68 (3m/48h) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 44 m³/h Max. pumping height: 14 m Speed: 2700 U/min Power P1: 3,1 kW Power P2: 2,4 kW Operating mode: S3 - 50 % Type of fuse required (electrical protection): C_20_A Type of pump connection cable: H07RN8-F 6G 1 mm² Impeller type: Multi-vane impeller Free passage: 40 mm Length of mains cable for pump: 5 m Control Connection type: Direct connection Type of fuse required (electrical protection): C_20_A
