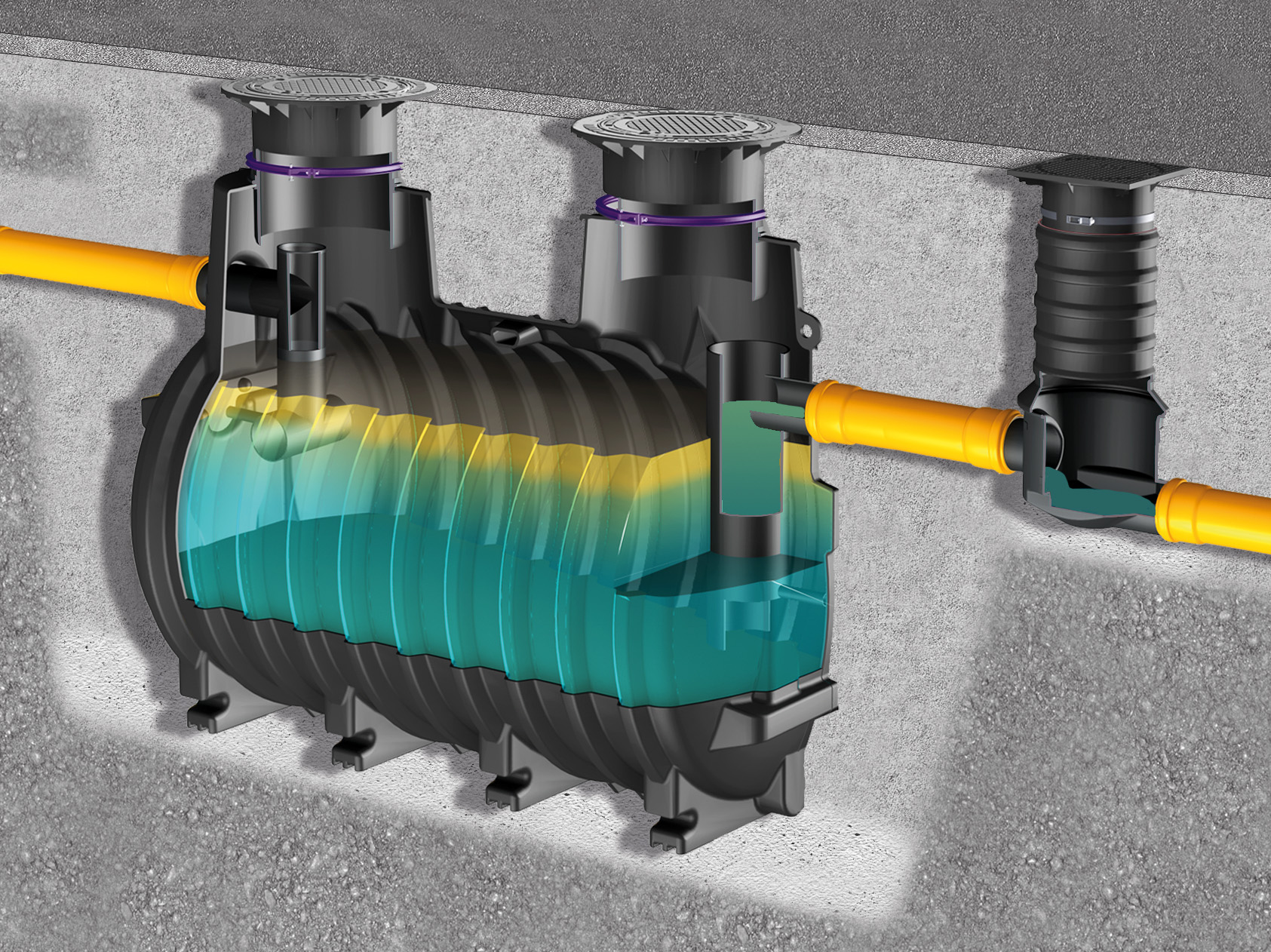

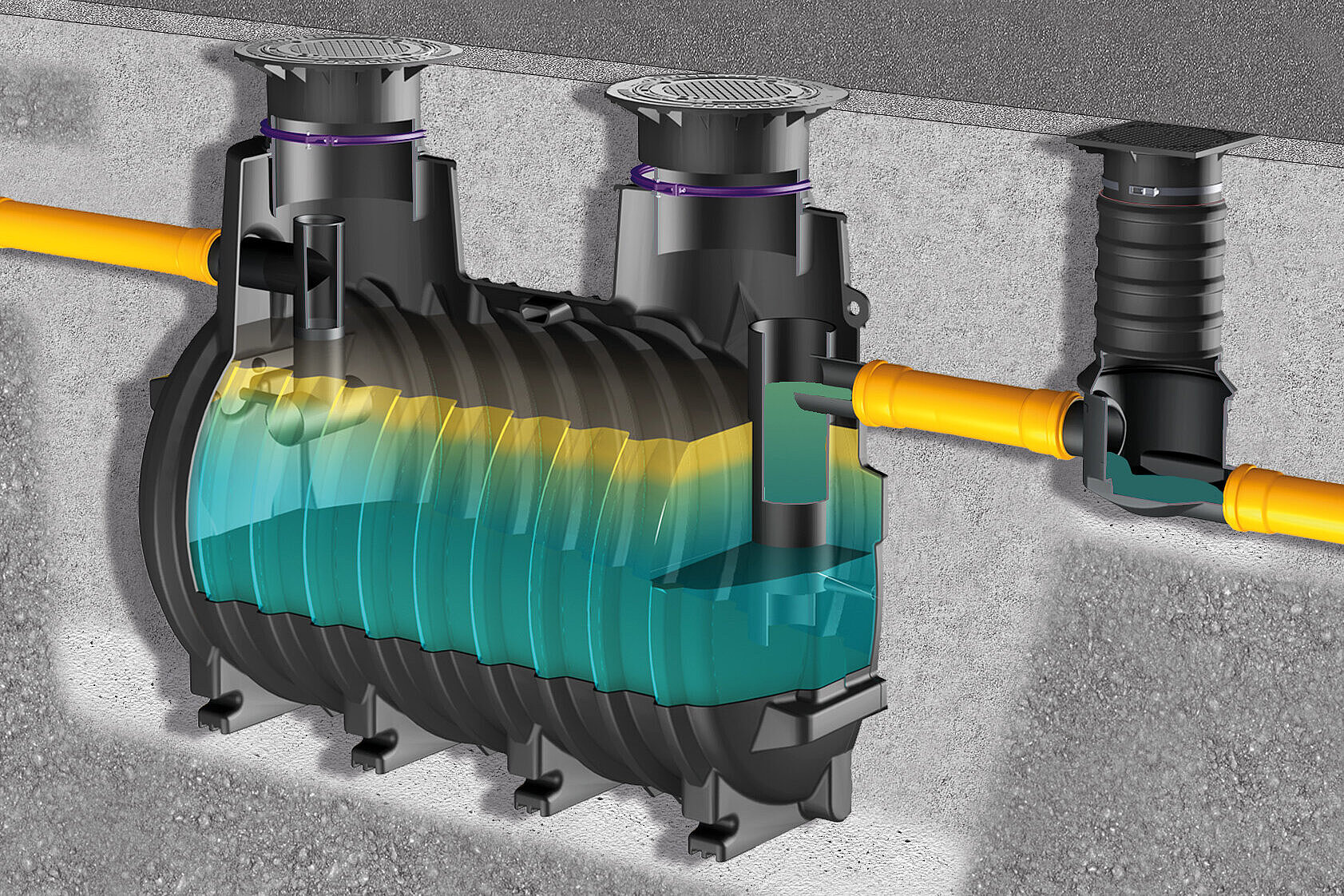

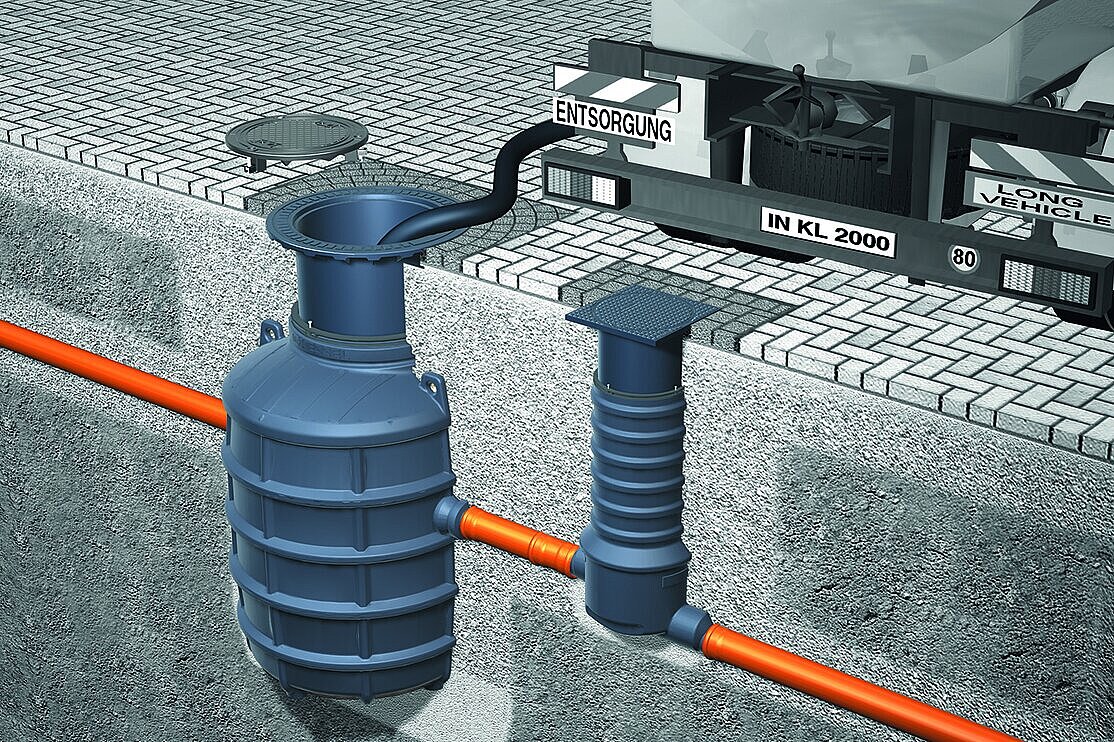

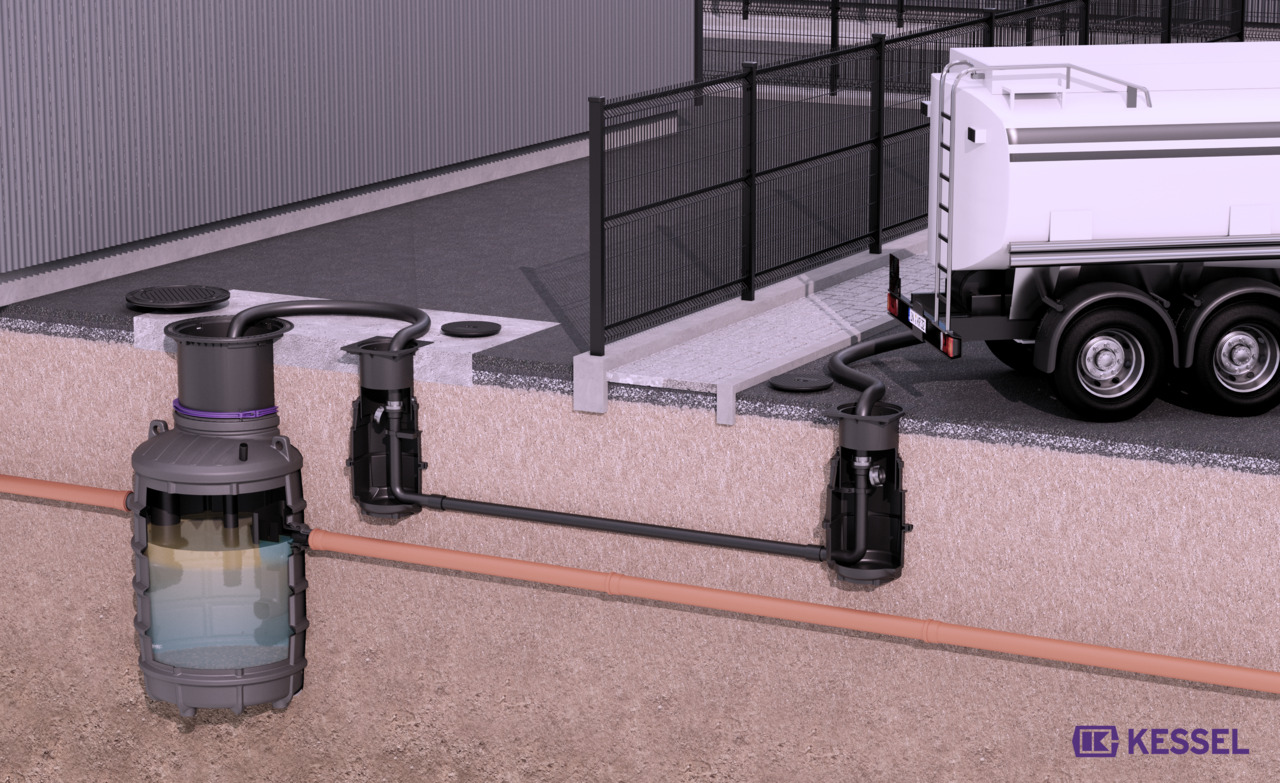

The grease separator EasyClean ground Standard is the basic version of the EasyClean ground series. The odour-tight domed covers of the grease separator have to be opened for emptying and cleaning. Extraction and rinsing of the grease separator take place manually. It is preferably cleaned with hot water through the maintenance openings.
The EasyClean ground Standard grease separator is available for load classes A/B and D as well as in nominal sizes NS 1 to NS 10, which are sufficient for most businesses such as restaurants and hotels. In addition, we also offer individual solutions for specific requirements and installation situations.
Basic version
The EasyClean ground Standard is the basic version of our EasyClean ground grease separator family. It includes all the essential functions.
The KESSEL range includes further grease separators with other advantages.
SonicControl

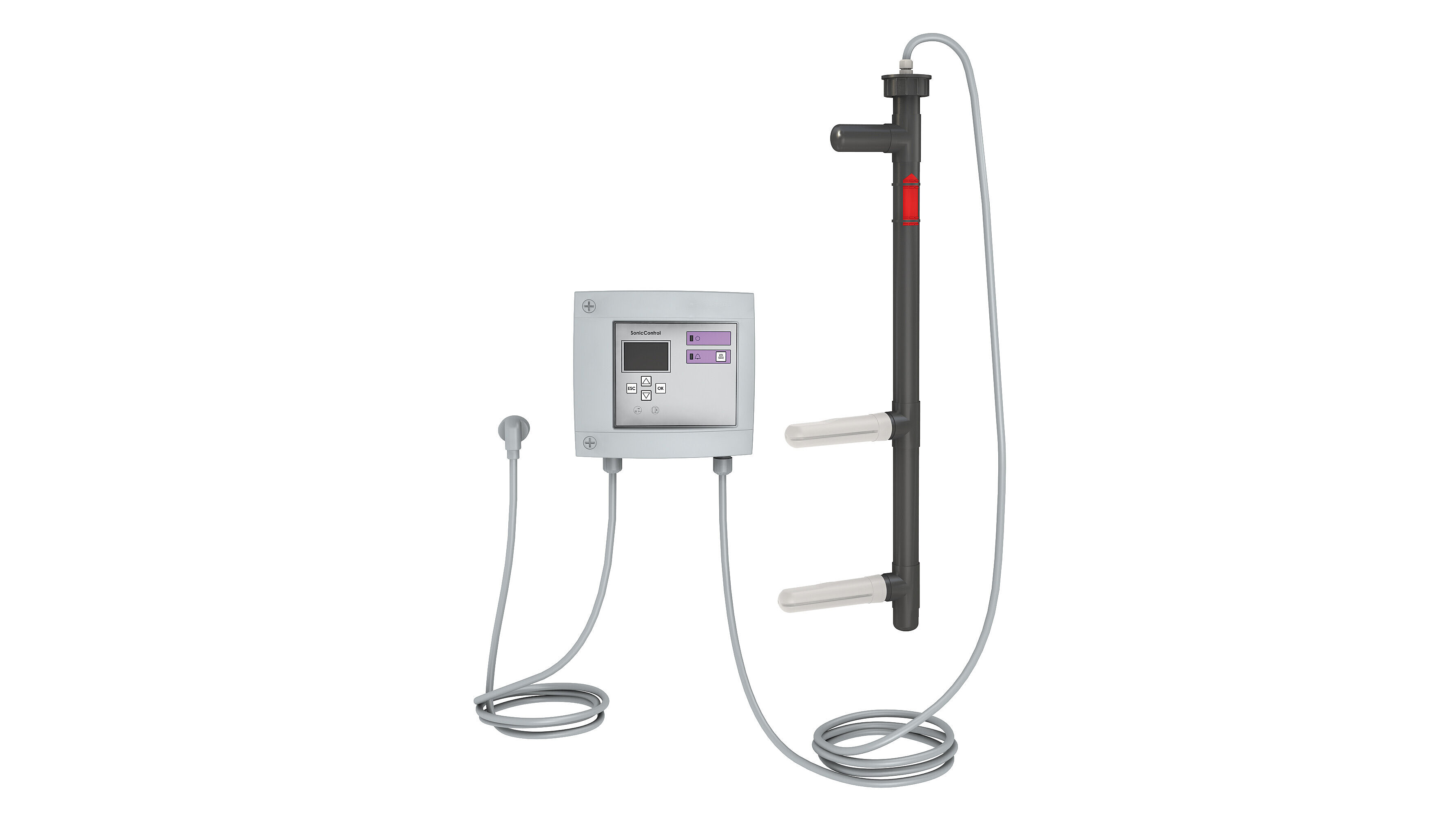

The SonicControl automatic layer thickness measuring device with ultrasound sensor precisely monitors the temperature and thickness of the grease layer in grease separators. Owners/operating companies can verify the actual quantity of grease produced to the relevant authorities and optimise the necessary disposal cycles outside of standard requirements.
100 % corrosion-free – 20-year guarantee

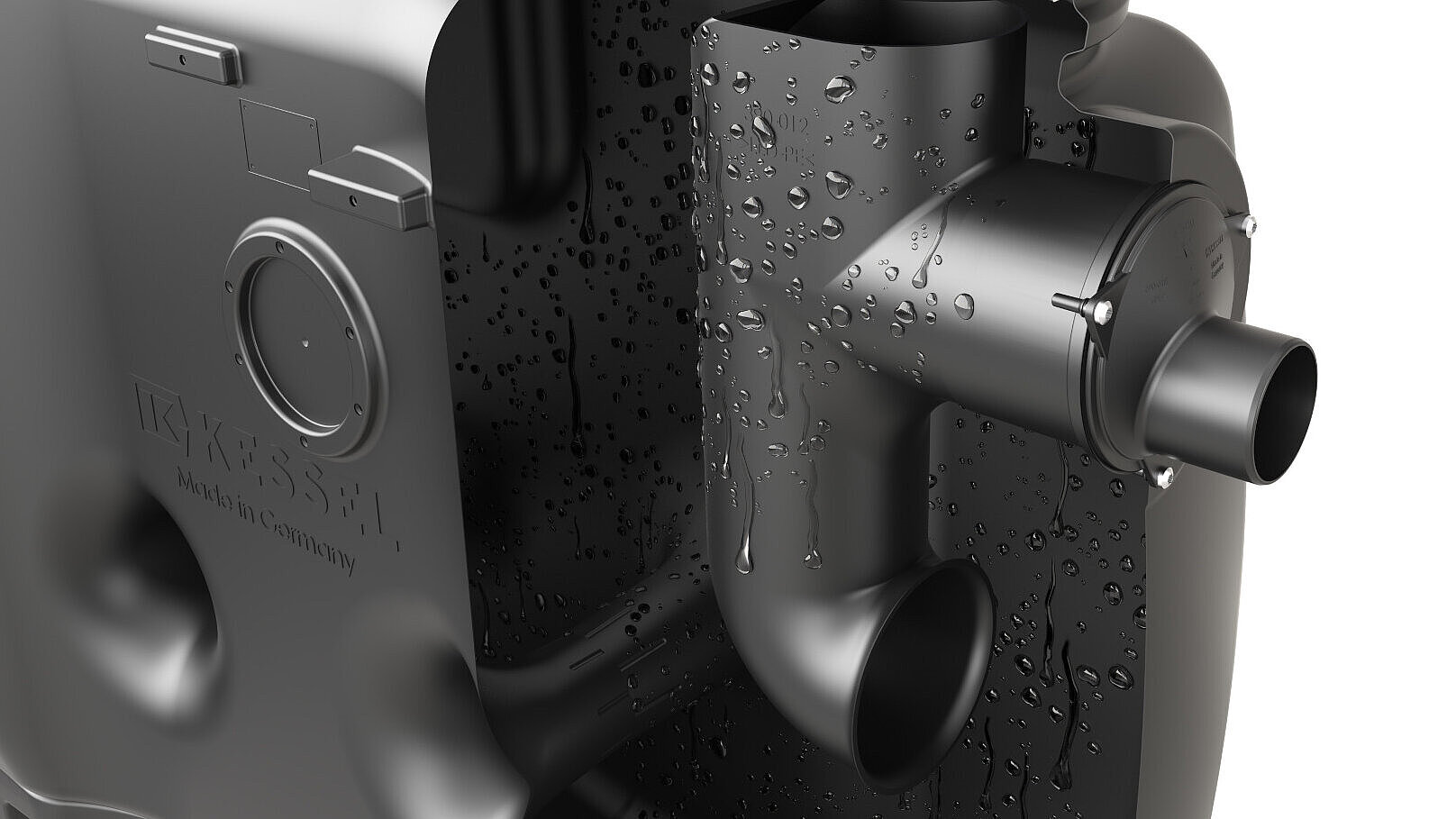

Our grease separators are made of polyethylene. That makes them resistant to aggressive fatty acids and they are therefore particularly durable. Trust in KESSEL quality: In addition to the statutory provision, we provide a 20-year warranty with regard to the leak tightness, fitness for purpose and structural stability of tanks and upper sections.

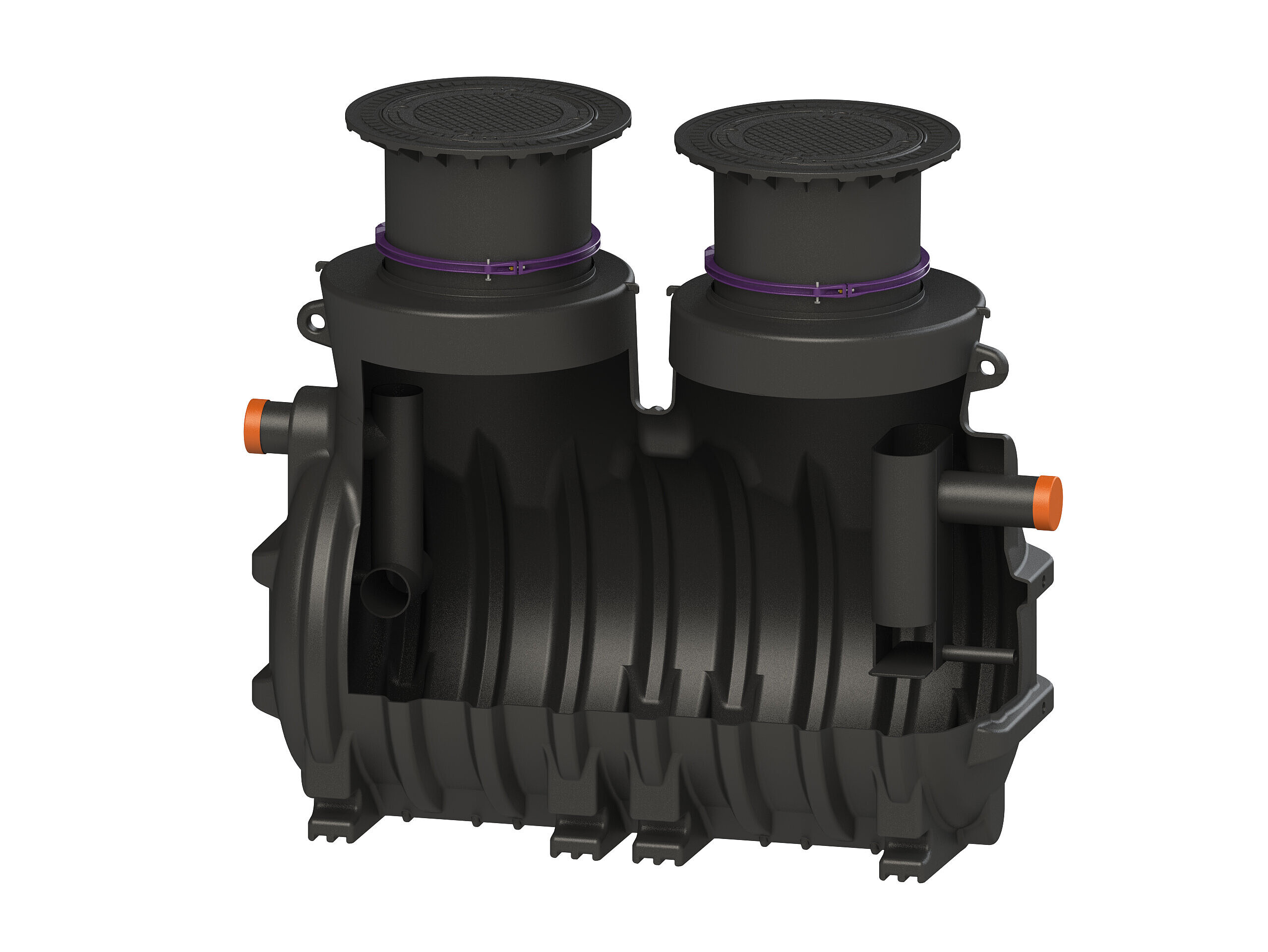

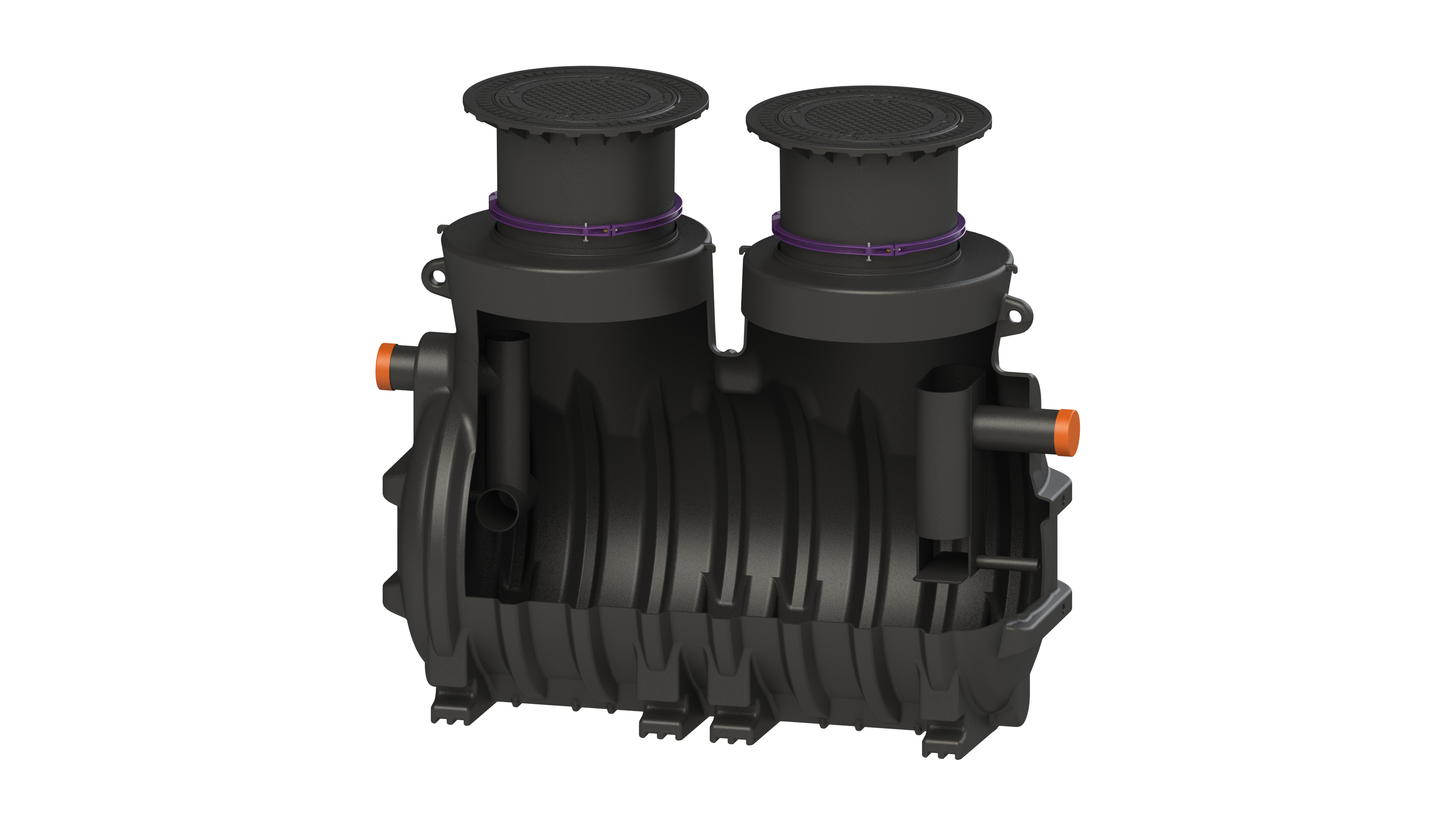

EasyClean ground Standard
Installation in the ground, frost-free depth 1200 mm
| Load class | Installation depth | Nominal size (NS) | Gross weight | Item no. | ||
|---|---|---|---|---|---|---|
93001/120B | B 125 (EN 124) | 800 mm | 1 | 112 kg | 93001/120B | Show |
93002/120B | B 125 (EN 124) | 800 mm | 2 | 120 kg | 93002/120B | Show |
93004/120B | B 125 (EN 124) | 800 mm | 4 | 130 kg | 93004/120B | Show |
93007/120B | B 125 (EN 124) | 740 mm | 7 | 325 kg | 93007/120B | Show |
93010/120B | B 125 (EN 124) | 740 mm | 10 | 345 kg | 93010/120B | Show |
93015/120B | B 125 (EN 124) | 765 mm | 15 | 455 kg | 93015/120B | Show |
93020/120B | B 125 (EN 124) | 765 mm | 20 | 473 kg | 93020/120B | Show |
93925/120B | B 125 (EN 124) | 800 mm | 25 | 666 kg | 93925/120B | Show |
93930/120B | B 125 (EN 124) | 800 mm | 30 | 722 kg | 93930/120B | Show |
93935/120B | B 125 (EN 124) | 650 mm | 35 | 685 kg | 93935/120B | Show |
| Load class | Installation depth | Nominal size (NS) | Gross weight | Item no. | ||
|---|---|---|---|---|---|---|
93001/120D | D 400 (EN 124) | 800 mm | 1 | 135 kg | 93001/120D | Show |
93002/120D | D 400 (EN 124) | 800 mm | 2 | 140 kg | 93002/120D | Show |
93004/120D | D 400 (EN 124) | 800 mm | 4 | 152 kg | 93004/120D | Show |
93007/120D | D 400 (EN 124) | 740 mm | 7 | 395 kg | 93007/120D | Show |
93010/120D | D 400 (EN 124) | 740 mm | 10 | 415 kg | 93010/120D | Show |
93015/120D | D 400 (EN 124) | 765 mm | 15 | 576 kg | 93015/120D | Show |
93020/120D | D 400 (EN 124) | 765 mm | 20 | 601 kg | 93020/120D | Show |
93925/120D | D 400 (EN 124) | 800 mm | 25 | 718 kg | 93925/120D | Show |
93930/120D | D 400 (EN 124) | 800 mm | 30 | 730 kg | 93930/120D | Show |
93935/120D | D 400 (EN 124) | 650 mm | 35 | 735 kg | 93935/120D | Show |

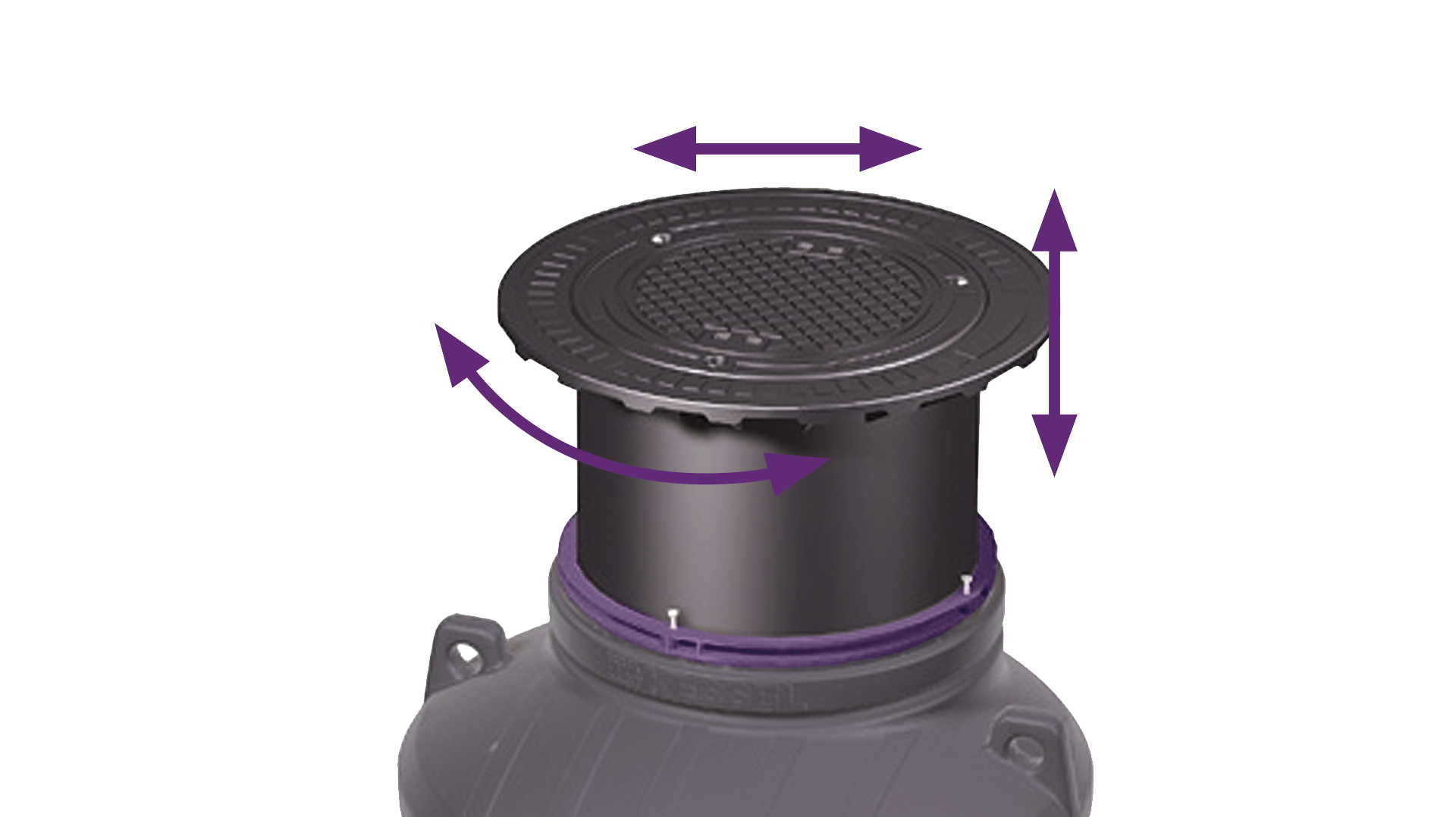

Note on installation depth: Installation in the ground, frost-free depth 800 mm
Note on installation depth: Version for deeper installation
| Load class | Installation depth | Nominal size (NS) | Gross weight | Item no. | ||
|---|---|---|---|---|---|---|
93007/170B | B 125 (EN 124) | 1.120 mm | 7 | 396 kg | 93007/170B | Show |
93010/170B | B 125 (EN 124) | 1.120 mm | 10 | 420 kg | 93010/170B | Show |
93015/170B | B 125 (EN 124) | 1.130 mm | 15 | 517 kg | 93015/170B | Show |
93020/170B | B 125 (EN 124) | 1.130 mm | 20 | 572 kg | 93020/170B | Show |
93925/170B | B 125 (EN 124) | 1.155 mm | 25 | 744 kg | 93925/170B | Show |
93930/170B | B 125 (EN 124) | 1.155 mm | 30 | 740 kg | 93930/170B | Show |
93935/170B | B 125 (EN 124) | 1.005 mm | 35 | 642 kg | 93935/170B | Show |
| Load class | Installation depth | Nominal size (NS) | Gross weight | Item no. | ||
|---|---|---|---|---|---|---|
93007/170D | D 400 (EN 124) | 1.120 mm | 7 | 479,3 kg | 93007/170D | Show |
93010/170D | D 400 (EN 124) | 1.120 mm | 10 | 510 kg | 93010/170D | Show |
93015/170D | D 400 (EN 124) | 1.130 mm | 15 | 661 kg | 93015/170D | Show |
93020/170D | D 400 (EN 124) | 1.130 mm | 20 | 701 kg | 93020/170D | Show |
93925/170D | D 400 (EN 124) | 1.155 mm | 25 | 692 kg | 93925/170D | Show |
93930/170D | D 400 (EN 124) | 1.155 mm | 30 | 691 kg | 93930/170D | Show |
93935/170D | D 400 (EN 124) | 1.005 mm | 35 | 691 kg | 93935/170D | Show |
