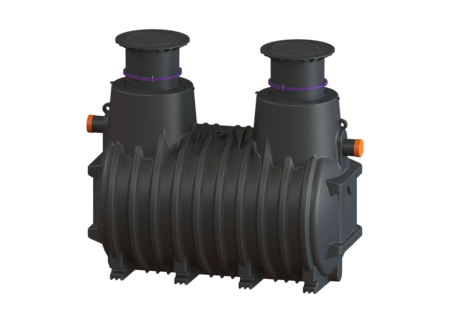

Grease separator EasyClean ground

NS 20, Standard, 765-1200 mm, Class A/B

93020/120B
PDF product data sheet

KESSEL Grease separator EasyClean ground, installation depth 765 - 1200 mm, disposal Standard, type of disposal manual with suction hose, nominal size 20,00, load class B 125, underground installation, volume 14164,13 dm³

  • Vertically adjustable upper section with odour-tight cover plates in various load classes
  • Waterproof, resistant to aggressive wastewater
  • Low-maintenance operation
Item no. 93020/120B
GTIN 4026092025833
Price group 60

    Grease separator EasyClean ground NS 20, Standard, 765-1200 mm, Class A/B
    The separator for greasy wastewater is suitable for installation in the ground and comes without metallic components in the tank. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and has a rounded base for fast and clean disposal. Access for cleaning and maintenance work is possible via one or several service access covers. Manual disposal is carried out with the tank open. 20 year polyethylene warranty. Variant Note on installation depth: Installation in the ground, frost-free depth 1200 mm Chamber system: Cistern Disposal variant: Standard Shredder-Mix-System: no Sludge bucket: no Nominal size (NS): 20,00 SonicControl: no Refill inlet in accordance with DIN 1988: no Type of disposal: manual with suction hose Load-bearing capacity (DIN 19901): E2 General characteristics Material: PE Standard: EN 1825: 2004 Installation situation: underground installation Delivery state: Installation-ready (connection parts must be connected on site) Dimensions Net weight: 467 kg Gross weight: 473 kg Groundwater resistant from lower edge of base section: 1810 mm Diameter: 648 mm DSC: 700 - 1.800 T-DSC: 185 Max. length: 3310 mm Installation depth: 765 - 1200 mm Type of height adjustability: vertically adjustable upper section, can be tilted by 5 degrees Required access area, length: 3110 mm Required access area, width: 1720 mm Packaging dimension: length: 3060 mm Packaging dimension: width: 1760 mm Packaging dimension: height: 2630 mm Tank/drain body Distance pipe bottom outlet to tank bottom: 1550 mm Distance pipe bottom inlet to tank bottom: 1620 mm Outlet nominal size (OD): 200 mm Outlet nominal size (DN): 200 mm Inlet nominal size (OD): 200 mm Inlet nominal size (DN): 200 mm Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, PVC-KG pipes in accordance with DIN 19534, PP or AS Clear width of entry (LW): 600 mm Coverage features Type of cover: Cover plate Cover material: Grey iron Colour of cover: black Height of cover: 95 mm Locking: unlocked Load class: B 125 (EN 124) Tightness: odour-tight and surface water resistant Wastewater contents Separator contents: 3800 l Total volume: 5800 l Contents of sludge trap: 2000 l Storage quantity of grease: 800 l Control Control unit: no
      Title Item no.
      Title Item no.
      Title Item no.
    9151020B Sampling chamber LW 1000, DN 200, Class B 9151020B Show
    915402 Extension section System 400, H: 600 mm, can be shortened 915402 Show
    915883A Sampling chamber DN 200, Load class A 915883A Show
    915883B Sampling chamber DN 200, Class B 915883B Show
    917413 Access panel for mounting on-wall 917413 Show
    917414 Access panel for in-wall installation 917414 Show
    		Direct disposal LW 400, Disposal connection, right 917420.00 Show
    		Direct disposal LW 400, Disposal connection, left 917420.50 Show
    917422B Disposal chamber LW 400, underground separators, A/B 917422B Show
    917422D Disposal chamber LW 400, underground separators, D 917422D Show
    917460 Extension section d: 600 mm, Extension 500 mm 917460 Show
    917821 Layer thickness measuring device SonicControl, for grease separators 917821 Show
    917871 Cable extension 10 m, for SonicControl grease separator 917871 Show
    917872 Cable extension 20 m, for SonicControl grease separator 917872 Show
    917873 Cable extension 30 m, for SonicControl grease separator 917873 Show
      Title Item no.
    680276 Clamping ring for upper sections d: 600 mm 680276 Show
    680278 Removal key for cover plates 680278 Show
    680323 Seal for cover plate, locked 680323 Show
    680324 Upper section d: 630 mm, surface water resistant 680324 Show
    860104 Seal d: 630 mm, from 01/2015 860104 Show
    860119 Cover plate Class B, grey cast iron, with seal 860119 Show
    917112 Removal tool for 'Goliath' chamber cover 917112 Show
    • Material (material): PE
    • Installation situation (einbausituation): underground installation
    • Nominal size (NS) (nenngroesse): 20
    • Load class (belastungsklasse): B 125 (EN 124)
    • Installation depth (einbautiefe): 765  mm
    • Gross weight (gewicht_brutto): 473  kg
