d: 600 mm, Extension 500 mm

917460
917460
PDF product data sheet

Extension section suitable for tanks with opening LW 600 in the domed area for installation underground, including lip seal and sealing grease. Suitable in conjunction with upper section made of polymer LW 600, extension section can be shortened by 190 mm, maximum push-in depth of the upper section in the extension section 250 mm. Extension height: 500 mm

Item no. 917460
GTIN 4026092073285
Price group 60

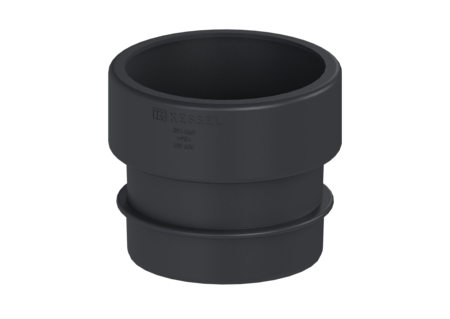

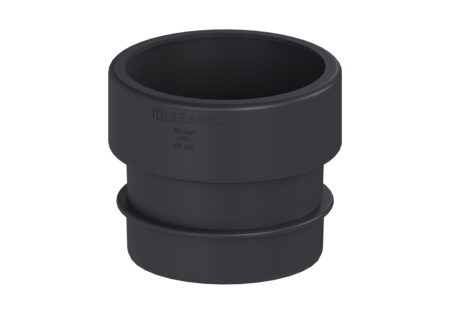

    Extension section d: 600 mm, Extension 500 mm
    Extension section suitable for tanks with opening LW 600 in the domed area for installation underground, including lip seal and sealing grease. Suitable in conjunction with upper section made of polymer LW 600, extension section can be shortened by 190 mm, maximum push-in depth of the upper section in the extension section 250 mm. Extension height: 500 mm General characteristics Colour: black Material: Polymer ATEX: no Dimensions Net weight: 22 kg Gross weight: 27 kg Diameter: 750 mm Clear width (LW): 600 mm Packaging dimension: length: 900 mm Packaging dimension: width: 900 mm Packaging dimension: height: 755 mm
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Material (material): Polymer
