EasyClean free Mix grease separator

The practical solution for exposed installation.

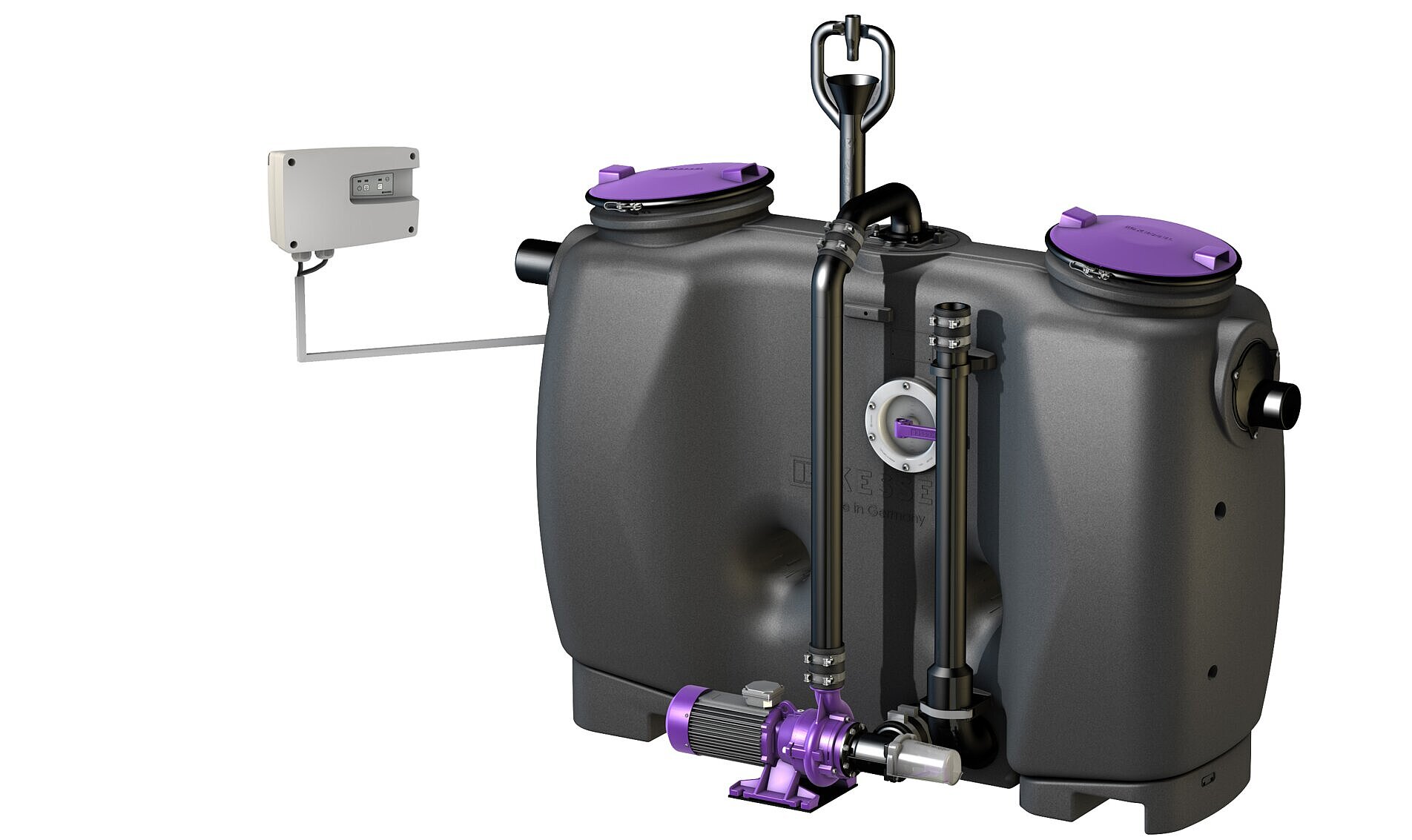

EasyClean free Mix grease separator, NS 2 - 10

The EasyClean free Mix offers direct disposal and a shredder-mix system for circulation and homogenisation of the tank contents. The contents of the closed tank are extracted through permanently installed pipes, onto which the disposal vehicle’s pump is coupled on the outside of the building.

The grease separator is available in nominal sizes NS 2 to NS 10, which is sufficient for most businesses such as restaurants and hotels. It is also available in nominal sizes NS 15 to NS 50 for larger volumes of wastewater. In addition, we also offer individual solutions for specific requirements and installation situations.

Advantages  Article overview

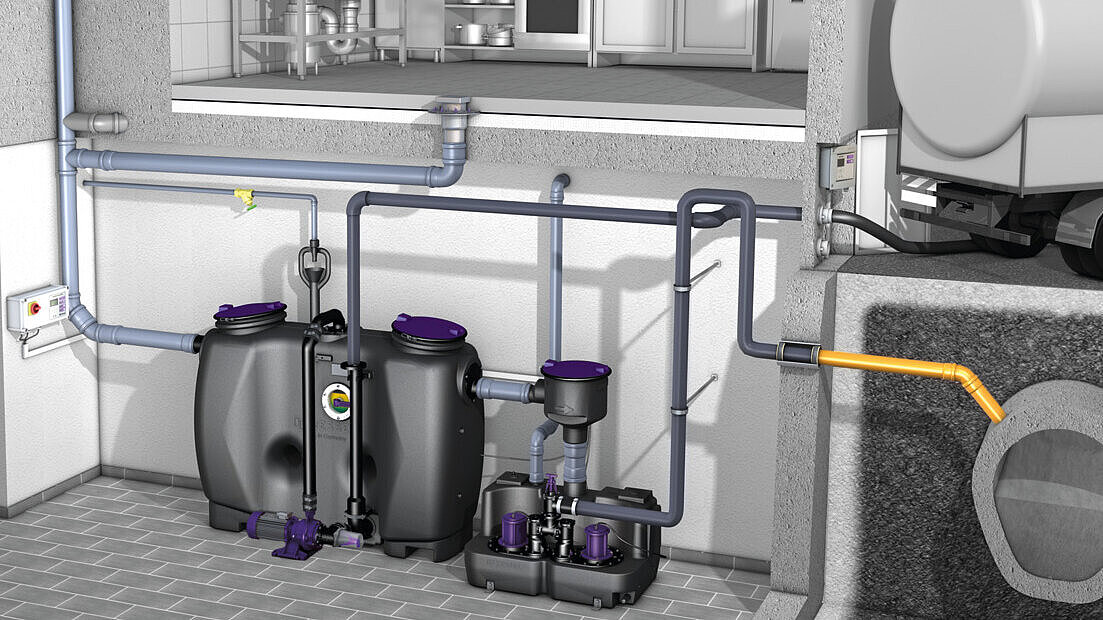

Installation diagram of EasyClean free Mix grease separator

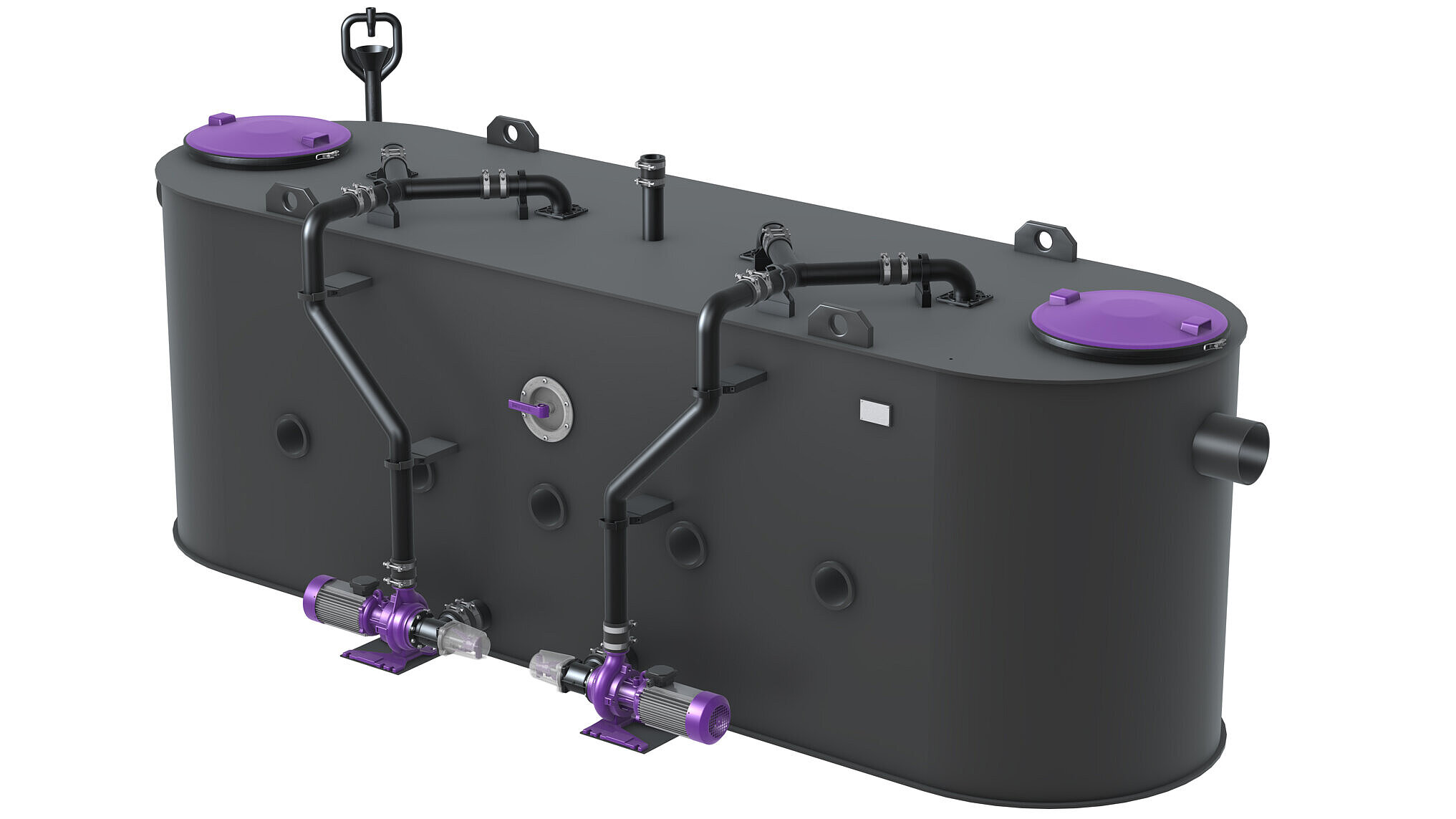

EasyClean free Mix grease separator, NS 15 - 50
Performance diagram for 3.0 kW pump

The EasyClean free Mix offers the following advantages:

  • Direct disposal: Disposal via the direct disposal pipe – without opening the tank.
  • No odour emissions: The shredder-mix system ensures odourless disposal and cleaning.

The KESSEL range includes even more grease separators with further advantages.

Smart helper: Connect control unit

The homogenisation process for the grease separator is controlled using the new Connect 400 V Mono control unit. Thanks to the NFC interface, the pump's running time can be individually adjusted via a mobile phone if required - and the log book can also be accessed in this way. Service technicians can also read out even more detailed characteristic data. Connection to the building management system can be realised via a potential-free contact. This means that messages and faults are passed on immediately.



Polymer grease are durable and corrosion-free.

100 % corrosion-free – 20-year guarantee

Our grease separators are made of polyethylene. That makes them resistant to aggressive fatty acids and they are therefore particularly durable. Trust in KESSEL quality: In addition to the statutory provision, we provide a 20-year warranty with regard to the leak tightness, fitness for purpose and structural stability of tanks and upper sections.

SonicControl grease layer thickness measuring device

SonicControl

The SonicControl automatic layer thickness measuring device with ultrasound sensor precisely monitors the temperature and thickness of the grease layer in grease separators. Owners/operating companies can verify the actual quantity of grease produced to the relevant authorities and optimise the necessary disposal cycles outside of standard requirements.

More information

Changeover socket for EasyClean free grease separator

Changeover socket

The flow direction can easily be changed on site thanks to the self-sealing changeover socket. A distinction no longer needs to be made between the “direction of flow right” or “direction of flow left” variants – making the design much easier.

Important: Stricter limit values!

When grease separators are used, the wastewater at the outlet has a residual value of lipophilic materials of about 300 mg/L. If the municipalities specify a limit value below 300 mg/L, biological grease treatment with a Bifena unit is necessary.

BIFENA biological grease treatment

EasyClean free Mix


With SonicControl

  Nominal size (NS)Refill inlet in accordance with DIN 1988Set-up area, widthSet-up area, length Item no.
93002.02/DS93002.02/DS 2 yes 841  mm 1.736  mm 93002.02/DS
Show
93003.02/DS93003.02/DS 3 yes 841  mm 1.736  mm 93003.02/DS
Show
93004.02/DS93004.02/DS 4 yes 842  mm 2.116  mm 93004.02/DS
Show
93007.02/DS93007.02/DS 7 yes 1.108  mm 2.147  mm 93007.02/DS
Show
93010.02/DS93010.02/DS 10 yes 1.108  mm 2.822  mm 93010.02/DS
Show

  Nominal size (NS)Refill inlet in accordance with DIN 1988Set-up area, widthSet-up area, length Item no.
93002.32/DS93002.32/DS 2 yes 841  mm 1.736  mm 93002.32/DS
Show
93003.32/DS93003.32/DS 3 yes 841  mm 1.736  mm 93003.32/DS
Show
93004.32/DS93004.32/DS 4 yes 842  mm 2.116  mm 93004.32/DS
Show
93007.32/DS93007.32/DS 7 yes 1.108  mm 2.147  mm 93007.32/DS
Show
93010.32/DS93010.32/DS 10 yes 1.108  mm 2.822  mm 93010.32/DS
Show

Without SonicControl

  Nominal size (NS)Refill inlet in accordance with DIN 1988Set-up area, widthSet-up area, length Item no.
93002.01/DS93002.01/DS 2 yes 841  mm 1.736  mm 93002.01/DS
Show
93003.01/DS93003.01/DS 3 yes 841  mm 1.736  mm 93003.01/DS
Show
93004.01/DS93004.01/DS 4 yes 842  mm 2.116  mm 93004.01/DS
Show
93007.01/DS93007.01/DS 7 yes 1.108  mm 2.147  mm 93007.01/DS
Show
93010.01/DS93010.01/DS 10 yes 1.108  mm 2.822  mm 93010.01/DS
Show
93015.01/DS93015.01/DS 15 yes 1.620  mm 3.560  mm 93015.01/DS
Show
93020.01/DS
 20 yes 1.620  mm 4.510  mm 93020.01/DS
Show
93025.01/DS
 25 yes 1.620  mm 4.760  mm 93025.01/DS
Show
93035.01/DS
 35 yes 1.620  mm 6.480  mm 93035.01/DS
Show
93040.01/DS
 40 yes 1.870  mm 6.680  mm 93040.01/DS
Show
93050.01/DS
 50 yes 2.070  mm 6.680  mm 93050.01/DS
Show

  Nominal size (NS)Refill inlet in accordance with DIN 1988Set-up area, widthSet-up area, length Item no.
93002.31/DS93002.31/DS 2 yes 841  mm 1.736  mm 93002.31/DS
Show
93003.31/DS93003.31/DS 3 yes 841  mm 1.736  mm 93003.31/DS
Show
93004.31/DS93004.31/DS 4 yes 842  mm 2.116  mm 93004.31/DS
Show
93007.31/DS93007.31/DS 7 yes 1.108  mm 2.147  mm 93007.31/DS
Show
93010.31/DS93010.31/DS 10 yes 1.108  mm 2.822  mm 93010.31/DS
Show
93015-01-DS-L93015-01-DS-L 15 yes 1.680  mm 3.530  mm 93015-01-DS-L
Show
93015-01-DS-R93015-01-DS-R 15 yes 1.680  mm 3.530  mm 93015-01-DS-R
Show
93020-01-DS-L93020-01-DS-L 20 yes 1.680  mm 3.530  mm 93020-01-DS-L
Show
93020-01-DS-R93020-01-DS-R 20 yes 1.680  mm 3.530  mm 93020-01-DS-R
Show

Not found the right product?

In addition to our standard grease separators we also develop individual solutions on request for special requirements in terms of form, function and dimensioning.

Customised solutions
