Grease separator EasyClean free

NS 25, Mix

93025-06-DS
PDF product data sheet

KESSEL Grease separator EasyClean free, disposal Mix, nominal size 25,00, control unit yes, free-standing installation, type of disposal manual cleaning system, no, no

  • Simple control
  • Low-maintenance operation
  • Odour-reduced disposal with the tank closed
Item no. 93025-06-DS
GTIN 4026092103166
Price group 60

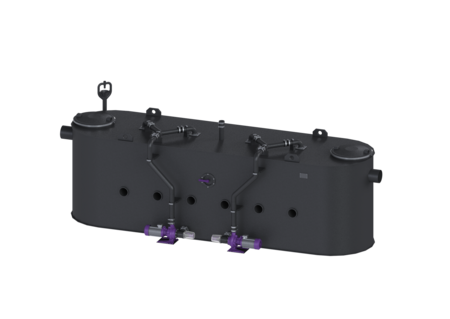

Grease separator EasyClean free NS 25, Mix
The separator for greasy wastewater is suitable for free-standing set-up in frost-protected rooms and comes without metallic components in the tank. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and has slopes in the tank base for fast and clean disposal. Two odour-tight covers with quick-release closures make easy access possible for cleaning and maintenance work. The innovative Shredder-Mix-System with integrated macerating system is responsible for homogenising and circulating the tank contents. Cleaning is carried out by an exterior pump which can be disconnected from the tank by a shut-off valve. A direct disposal pipe socket is available for odour-neutral manual disposal. 20 year polyethylene warranty. Variant Shut-off valve: yes Disposal variant: Mix Shredder-Mix-System: yes Sludge bucket: no Nominal size (NS): 25,00 SonicControl: no Disposal system: Disposal connection Refill inlet in accordance with DIN 1988: yes Type of disposal: manual cleaning system Water supply: 1 screw-type valve 1" Load-bearing capacity (DIN 19901): F3 General characteristics Material: PE Standard: EN 1825: 2004 Installation situation: free-standing installation Delivery state: Installation-ready (electrical components, connection parts must be connected on site) Scope of delivery: Storz-B coupling R 2 1/2" for disposal vehicle connection Dimensions Net weight: 616 kg Gross weight: 616 kg Diameter: 630 mm Set-up area, length: 5140 mm Set-up area, width: 1600 mm Set-up area, height: 1625 mm Required access area, length: 5140 mm Required access area, width: 1280 mm Required access area, height: 1625 mm Length: 5140 mm Width: 1600 mm Height: 1625 mm Packaging dimension: length: 5140 mm Packaging dimension: width: 1600 mm Packaging dimension: height: 1625 mm Tank/drain body Nominal pressure (PN): 10 Pressure pipe connection (DN): 65 Pressure pipe connection (OD): 75 mm Distance pipe bottom outlet to tank bottom: 1030 mm Distance pipe bottom inlet to tank bottom: 1100 mm Outlet nominal size (OD): 200 mm Outlet nominal size (DN): 200 mm Inlet nominal size (OD): 200 mm Inlet nominal size (DN): 200 mm Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, HT pipes in accordance with DIN 19560, PP or AS Coverage features Type of cover: Cover Cover material: Polymer Colour of cover: black Locking: Quick-release closure Tightness: odour-tight Wastewater contents Separator contents: 2050 l Total volume: 4550 l Contents of sludge trap: 2500 l Storage quantity of grease: 1000 l Pumping device Pump: SPF 300 KE 2.0 Number of pumps: 2 Weight, pump: 44 kg Connection type: Direct connection Rated current: 6,2 A Protection class: I Insulation class: F Cos phi - power factor: 0,87 Protection class (pump): IP 55 Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 60 m³/h Max. pumping height: 17 m Speed: 2850 U/min Power P1: 3,6 kW Power P2: 3 kW Operating mode: S2 - 30 min. Type of pump connection cable: H07RN-F 7G 1.5 mm² Impeller type: Radial impeller with macerating system Length of mains cable for pump: 5 m Control Control unit: yes Type of fuse required (RCD): 30 mA Mains frequency: 50 Hz Operating voltage: 400 V Connection type: Direct connection
  Title Item no.
  Title Item no.
  Title Item no.
72300 Connect Pro module LTE f. control unit w. Connect Pro interface 72300 Show
915883 Sampling system DN 200, horizontal 915883 Show
917821 Layer thickness measuring device SonicControl, for grease separators 917821 Show
917871 Cable extension 10 m, for SonicControl grease separator 917871 Show
917872 Cable extension 20 m, for SonicControl grease separator 917872 Show
917873 Cable extension 30 m, for SonicControl grease separator 917873 Show
  Title Item no.
Test Reports and Certificates
Declaration of Performance
Declaration of Conformity
  • Control unit (schaltgeraet): yes
  • Material (material): PE
  • Cover material (abdeckung_material): Polymer
  • Disposal system (entsorgungseinrichtung): Disposal connection
  • Installation situation (einbausituation): free-standing installation
  • CE marking (ce_kennzeichnung): yes
  • Shredder-Mix-System (schredder_mix_system): yes
  • Nominal size (NS) (nenngroesse): 25
  • Refill inlet in accordance with DIN 1988 (fuelleinrichtung): yes
  • Set-up area, width (aufstellflaeche_breite): 1.600  mm
  • Set-up area, length (aufstellflaeche_laenge): 5.140  mm
