Ecolift XL backwater lifting st.

Duo, 1 motor-driven flap, SPF 1500-S3

8741023
8741023
PDF product data sheet

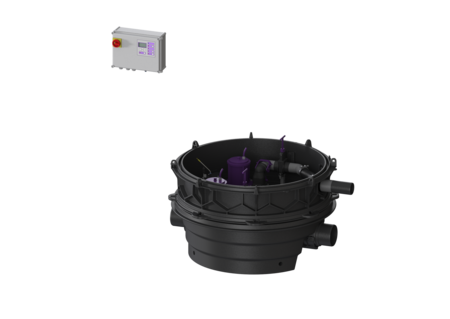

KESSEL Ecolift XL backwater lifting st., wastewater without sewage, free-standing installation, with 2 submersible SPF 1500-S3 pumps, alarm generator with optical probe, control unit Comfort Plus

  • Wastewater drainage without interruption, even if a power failure occurs, as long as there is no backwater
  • low pump use
  • minimised noise emissions
Item no. 8741023
GTIN 4026092068403
Price group 60

Ecolift XL backwater lifting st. Duo, 1 motor-driven flap, SPF 1500-S3
The backwater lifting station for non-faecal wastewater is equipped with two submersible pumps, one motor-driven and one mechanical closure system and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has an enclosed pump tank. Quick-release closures enable the integrated components to be removed easily. Normally, draining takes place via the natural fall to the sewer. Backwater is detected by an optical probe, which causes the motor-driven closure system to close automatically and there is no longer free passage to the sewer. During the backwater phase, the water drains via a pressure pipe, which carries the wastewater into the sewer. The pressure pipe is a welded PE pipe; with pump SPF 4500, the pressure pipe must also be continued up to a pressure release chamber. The station is controlled by a user-friendly control unit, which is optionally integrated in the building management system via a potential-free contact, or alarm and collective fault messages can be output via a GSM interface. The KESSEL modular system provides different upper sections and engineering chamber options as accessories. Variant Note on installation depth: Version for deeper installation Type of system: duo pump Shut-off valve: Shut-off valve made of polymer Passage seal for conduit pipe (DN): 100 Passage seal for ventilation pipe (DN): 70 Pump control: Control unit Backflow preventer: integrated Pressure pipe connection: horizontal Motor-driven backwater flaps: 1 Mechanical backwater flaps: 1 General characteristics Colour: black Standard: ÖNORM B 2501 Type of wastewater: without sewage Installation situation: free-standing installation Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) Backwater protection: Type 3 Approval: Z-53.2-493 Dimensions Net weight: 152 kg Gross weight: 175 kg Groundwater resistant from lower edge of base section: 3000 mm Vertical drop between inlet and outlet: 15 mm Length: 1384 mm Width: 1200 mm Height: 695 mm Packaging dimension: length: 2000 mm Packaging dimension: width: 1300 mm Packaging dimension: height: 950 mm Tank/drain body Nominal pressure (PN): 10 Pressure pipe connection (DN): 80 Pressure pipe connection (OD): 90 mm Channel: continuous channel Venting connection (DN): 70 Distance pipe bottom outlet to tank bottom: 120 mm Distance pipe bottom inlet to tank bottom: 135 mm Number of outlets: 1 Outlet nominal size (DN): 150 mm Inlet nominal size (DN): 150 mm Number of inlets: 1 Clear width of tank (LW): 1000 mm Pumping volume: 20 l Tank volume: 65 l Pumping device Pump: SPF 1500-S3 Number of pumps: 2 Weight, pump: 24 kg Connection type: Direct connection Rated current: 2,7 A Protection class: I Insulation class: F Cos phi - power factor: 0,77 Protection class (pump): IP 68 (3m/48h) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 28 m³/h Max. pumping height: 7,5 m Speed: 1415 U/min Power P1: 1,4 kW Power P2: 1,1 kW Operating mode: S3 - 50 % Type of fuse required (electrical protection): 3 x C 16 A Type of pump connection cable: H07RN-F 7G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 40 mm Length of mains cable for pump: 10 m Control Control unit: Comfort Plus Motor protection switch: yes Standby power: 5 W Alarm sensor: optical probe Level measurement instrument: Immersion pipe Type of level measurement: pneumatic Protection class control unit: IP 54 Operating voltage: 400 V Connection type: Direct connection Potential-free contact: yes GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Type of fuse required (electrical protection): 3 x C 16 A
  Title Item no.
8740002 Chamber module LW 1000 floor slab Access LW 800, 411-660 mm, Class K 3 8740002 Show
8740003 Chamber module LW 1000 floor slab Access LW 800, 668-917 mm, Class K 3 8740003 Show
8740004 Chamber module LW 1000 floor slab Access LW 800, 396-645 mm, Class A 15 8740004 Show
8740005 Chamber module LW 1000 floor slab Access LW 800, 653-902 mm, Class L 15 8740005 Show
8740008 Chamber module LW 1000 floor slab Access LW 800, 661-910 mm, Class K 3 8740008 Show
8740009 Chamber module LW 1000 floor slab Access LW 800, 918-1167 mm, Class K 3 8740009 Show
8740010 Chamber module LW 1000 floor slab Access LW 800, 646-895 mm, Class A 15 8740010 Show
8740011 Chamber module LW 1000 floor slab Access LW 800, 903-1152 mm, Class L 15 8740011 Show
8740014 Chamber module LW 1000 floor slab Access LW 800, 911-1160 mm, Class K 3 8740014 Show
8740015 Chamber module LW 1000 floor slab Access LW 800, 1168-1417 mm, Class K 3 8740015 Show
8740016 Chamber module LW 1000 floor slab Access LW 800, 896-1145 mm, Class A 15 8740016 Show
8740017 Chamber module LW 1000 floor slab Access LW 800, 1153-1402 mm, Class L 15 8740017 Show
8740018 Chamber module LW 1000 floor slab Access LW 600, 1130-1379 mm, Class A/B 8740018 Show
8740019 Chamber module LW 1000 floor slab Access LW 600, 1130-1379 mm, Class D 8740019 Show
8740020 Chamber module LW 1000 floor slab Access LW 800, 1161-1410 mm, Class K 3 8740020 Show
8740021 Chamber module LW 1000 floor slab Access LW 800, 1418-1667 mm, Class K 3 8740021 Show
8740022 Chamber module LW 1000 floor slab Access LW 800, 1146-1395 mm, Class A 15 8740022 Show
8740023 Chamber module LW 1000 floor slab Access LW 800, 1403-1652 mm, Class L 15 8740023 Show
8740024 Chamber module LW 1000 floor slab Access LW 600, 1380-1629 mm, Class A/B 8740024 Show
8740025 Chamber module LW 1000 floor slab Access LW 600, 1380-1629 mm, Class D 8740025 Show
8740026 Chamber module LW 1000 floor slab Access LW 800, 1411-1660 mm, Class K 3 8740026 Show
8740027 Chamber module LW 1000 floor slab Access LW 800, 1668-1917 mm, Class K 3 8740027 Show
8740028 Chamber module LW 1000 floor slab Access LW 800, 1396-1645 mm, Class A 15 8740028 Show
8740029 Chamber module LW 1000 floor slab Access LW 800, 1653-1902 mm, Class L 15 8740029 Show
8740030 Chamber module LW 1000 floor slab Access LW 600, 1630-1879 mm, Class A/B 8740030 Show
8740031 Chamber module LW 1000 floor slab Access LW 600, 1630-1879 mm, Class D 8740031 Show
8740032 Chamber module LW 1000 floor slab Access LW 800, 1661-1910 mm, Class K 3 8740032 Show
8740034 Chamber module LW 1000 floor slab Access LW 800, 1646-1895 mm, Class A 15 8740034 Show
8740036 Chamber module LW 1000 floor slab Access LW 600, 1880-2129 mm, Class A/B 8740036 Show
8740037 Chamber module LW 1000 floor slab Access LW 600, 1880-2129 mm, Class D 8740037 Show
8740038 Chamber module LW 1000 floor slab Access LW 800, 1911-2160 mm, Class K 3 8740038 Show
8740040 Chamber module LW 1000 floor slab Access LW 800, 1896-2145 mm, Class A 15 8740040 Show
8740042 Chamber module LW 1000 floor slab Access LW 600, 2130-2379 mm, Class A/B 8740042 Show
8740043 Chamber module LW 1000 floor slab Access LW 600, 2130-2379 mm, Class D 8740043 Show
8740044 Chamber module LW 1000 floor slab Access LW 800, 2161-2410 mm, Class K 3 8740044 Show
8740046 Chamber module LW 1000 floor slab Access LW 800, 2146-2395 mm, Class A 15 8740046 Show
8740048 Chamber module LW 1000 floor slab Access LW 600, 2380-2629 mm, Class A/B 8740048 Show
8740049 Chamber module LW 1000 floor slab Access LW 600, 2380-2629 mm, Class D 8740049 Show
8740050 Chamber module LW 1000 floor slab Access LW 800, 2411-2660 mm, Class K 3 8740050 Show
8740052 Chamber module LW 1000 floor slab Access LW 800, 2396-2645 mm, Class A 15 8740052 Show
8740054 Chamber module LW 1000 floor slab Access LW 600, 2630-2879 mm, Class A/B 8740054 Show
8740055 Chamber module LW 1000 floor slab Access LW 600, 2630-2879 mm, Class D 8740055 Show
8740056 Chamber module LW 1000 floor slab Access LW 800, 2661-2910 mm, Class K 3 8740056 Show
8740058 Chamber module LW 1000 floor slab Access LW 800, 2646-2895 mm, Class A 15 8740058 Show
8740060 Chamber module LW 1000 floor slab Access LW 600, 2880-3129 mm, Class A/B 8740060 Show
8740061 Chamber module LW 1000 floor slab Access LW 600, 2880-3129 mm, Class D 8740061 Show
8740062 Chamber module LW 1000 floor slab Access LW 800, 2911-3160 mm, Class K 3 8740062 Show
8740064 Chamber module LW 1000 floor slab Access LW 800, 2896-3145 mm, Class A 15 8740064 Show
8740122 Chamber module LW 1000 floor slab Access LW 800, 375-624 mm, Class K 3 8740122 Show
8740123 Chamber module LW 1000 floor slab Access LW 800, 625-874 mm, Class K 3 8740123 Show
8740124 Chamber module LW 1000 floor slab Access LW 800, 875-1124 mm, Class K 3 8740124 Show
8740125 Chamber module LW 1000 floor slab Access LW 800, 1125-1374 mm, Class K 3 8740125 Show
8740126 Chamber module LW 1000 floor slab Access LW 800, 1375-1624 mm, Class K 3 8740126 Show
8740127 Chamber module LW 1000 floor slab Access LW 800, 1625-1874 mm, Class K 3 8740127 Show
8740128 Chamber module LW 1000 floor slab Access LW 800, 1875-2124 mm, Class K 3 8740128 Show
8740129 Chamber module LW 1000 floor slab Access LW 800, 2125-2374 mm, Class K 3 8740129 Show
8740130 Chamber module LW 1000 floor slab Access LW 800, 2375-2624 mm, Class K 3 8740130 Show
8740131 Chamber module LW 1000 floor slab Access LW 800, 2625-2874 mm, Class K 3 8740131 Show
8740132 Chamber module LW 1000 floor slab Access LW 800, 2875-3124 mm, Class K 3 8740132 Show
8740141 Chamber module LW 1000 floor slab Access LW 800, 620-869 mm, Class B 8740141 Show
8740142 Chamber module LW 1000 floor slab Access LW 800, 870-1119 mm, Class B 8740142 Show
8740143 Chamber module LW 1000 floor slab Access LW 800, 1120-1369 mm, Class B 8740143 Show
8740158 Chamber module LW 1000 floor slab Access LW 800, 620-869 mm, Class D 8740158 Show
8740159 Chamber module LW 1000 floor slab Access LW 800, 870-1119 mm, Class D 8740159 Show
8740160 Chamber module LW 1000 floor slab Access LW 800, 1120-1369 mm, Class D 8740160 Show
  Title Item no.
  Title Item no.
20162 Remote signal generator 20 m cable, 2x0.75 q 20162 Show
28048 Compressor set for air bubbling 28048 Show
28792 TeleControl GSM modem for Comfort control units 230V/400V 28792 Show
680370 Intermediate section 250 mm, for chamber module LW 1000 680370 Show
680371 Intermediate section 500 mm, for chamber module LW 1000 680371 Show
80889 Cable accessories Extension for probe 80889 Show
80890 Cable accessories Extension for motor 80890 Show
97713 Installation set Thermostat, Hygrostat 97713 Show
97714 Outdoor Cabinet W: 590 mm,for installation control units 97714 Show
97715 Warning beacon for outdoor cabinet 97715 Show
97716 Outdoor Cabinet W: 460 mm, for installation control unit 97716 Show
Outdoor cabinet W: 785 mm,for installation control units 97723 Show
97724 Outdoor Cabinet W: 1115mm,for installation control units 97724 Show
  Title Item no.
28706 Splash guard set for optical probe 28706 Show
28786 Control unit Comfort Plus Mono/Duo, 400 V, (2x)2,5-4,0 A 28786 Show
680034 Battery 9 V block 680034 Show
680052 Seal for SPF 1400 - SPF 4500 680052 Show
680071 Pressure hose Sold by the metre, 6x4 mm 100 680071 Show
680098 Pump drive SPF 1500 400 V, S3, 10 m cable 680098 Show
680101 Flap holder for motor-driven and mechanical flap 680101 Show
680380 One-handed closure DN 63 680380 Show
680381 Backflow preventer left, with non-return flap 680381 Show
680382 Backflow preventer right, with non-return flap 680382 Show
680383 Pressure pipe with shut-off valve Left-hand version 680383 Show
680384 Pressure pipe with shut-off valve Right-hand version 680384 Show
680385 Pressure hose Ecolift XL 680385 Show
680386 Valve key for shut-off valve DN 63 680386 Show
680391 Ecolift XL lockable cover Outlet side 680391 Show
680397 Support rib for shut-off valve, straight support 680397 Show
680398 Pump flange Ecolift XL, incl. seal 680398 Show
680399 Pump plate Ecolift XL 680399 Show
680418 Seal set Ecolift XL 680418 Show
680452 Drive motor for clamping on, 10 m cable 680452 Show
680455 Spare part set, optical probe 10 m cable 680455 Show
680827 Immersion pipe for Ecolift XL, 180 mm 680827 Show
80038 Backwater flap motor-driven, with flap holder 80038 Show
80039 Slide-in flap housing for motorised flap with flap holder 80039 Show
80041 Slide-in flap housing with mechanical flap, flap holder 80041 Show
  • Type of wastewater (abwasserart_de): without sewage
  • Control unit (schaltgeraet): Comfort Plus
  • TÜV test mark (pruefzeichen): ID 1111241794
  • Installation situation (einbausituation): free-standing installation
  • (nennweite):
  • Pump (pumpe): SPF 1500-S3
  • Operating voltage (betriebsspannung): 400  V
