Chamber module LW 1000 floor slab
Access LW 800, 903-1152 mm, Class L 15

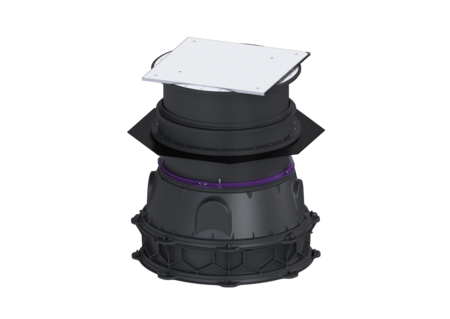

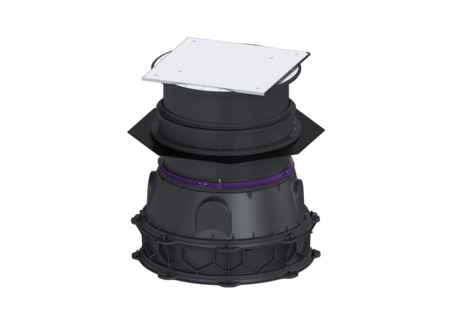

KESSEL Chamber module LW 1000 floor slab, PE-HD, floor slab installation, installation depth 903 - 1152 mm, clear width of entry (LW) 800 mm, load class A 15 / L 15
- For modular assembly with simple connection segments and intermediate sections 250 and 500 mm high
- Innovative honeycomb structure
- Installation in groundwater up to 3000 mm
| Item no. | 8740011 |
|---|---|
| GTIN | 4026092065266 |
| Price group | 60 |
Chamber module LW 1000 floor slab Access LW 800, 903-1152 mm, Class L 15
The chamber module for wet or dry installation is equipped with fitted access steps in accordance with DIN EN 13101 and BGR 177, all the necessary seals and connecting wedges as well as a taper with vertically adjustable upper section. The intermediate sections made of permanently resistant polymer (PE) have universal connection possibilities. Thanks to the modular KESSEL system, the design can be flexibly combined with intermediate sections, taper, upper section and cover. General characteristics Colour: black Material: PE-HD Standard: EN 13598-2 Installation situation: floor slab installation Delivery state: Partly for on-site assembly (access steps have been pre-mounted in the factory) Approval: Z-42.1-527 ATEX: no Dimensions Net weight: 127,58 kg Gross weight: 163,69 kg Groundwater resistant from lower edge of base section: 3000 mm Installation depth: 903 - 1152 mm Type of height adjustability: vertically adjustable upper section Length: 1200 mm Width: 1200 mm Packaging dimension: length: 2400 mm Packaging dimension: width: 1200 mm Packaging dimension: height: 2200 mm Tank/drain body Inlet max. scoring (DN): 150 mm Clear width of tank (LW): 1000 mm Clear width of entry (LW): 800 mm Coverage features Type of cover: Rectangular cover plate Cover material: Stainless steel Width of cover: 950 mm Height of cover: 44 mm Length of cover: 950 mm Surface: anti-slip Locking: screwed Load class: A 15 (EN 124) / L 15 (EN 1253-1) Tightness: surface water resistant
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Seal for intermediate section | 680125 | Show |
 | Intermediate section 250 mm, for chamber module LW 1000 | 680370 | Show |
 | Intermediate section 500 mm, for chamber module LW 1000 | 680371 | Show |
 | Connecting bolt set Set of 10 | 680373 | Show |
 | Seal for chamber module LW 1000 | 680375 | Show |
 | Access steps for chamber module | 680376 | Show |
 | WU extension section for chamber module | 680378 | Show |
 | Chamber taper LW 800 chamber module access | 680430 | Show |
 | Clamping ring for upper sections d: 800 mm | 680568 | Show |
 | Seal for pipe penetration, DN 70 | 850116 | Show |
 | Seal for pipe penetration, DN 100 | 850117 | Show |
 | Upper section with cover plate LW 800, Class A/L15 w. waterproof flange | 8740178 | Show |
| Manuals | |
|---|---|
| CAD Data | |
| Approval |
- Cover material (abdeckung_material):
Stainless steel
- Installation situation (einbausituation):
floor slab installation
- External monitoring (fremdueberwachung):
SKZ
- Type of cover (abdeckungsart): Rectangular cover plate
- Load class (belastungsklasse): A 15 (EN 124) / L 15 (EN 1253-1)
- Installation depth (einbautiefe): 903 mm
- Gross weight (gewicht_brutto): 163,7 kg
- Surface (oberflaeche): anti-slip
