Staufix FKA auto. backwater valve
DN 150, Floor slab, tileable
KESSEL Staufix FKA auto. backwater valve, control unit Comfort, nominal size (DN) 150, wastewater with sewage, locking Lock & Lift, floor slab installation, type of cover tileable cover plate
- Safe, motor-driven closure system with optical probe
- Fast, simple and toolless maintenance
- Available as a complete set or module set
| Item no. | 84150X |
|---|---|
| GTIN | 4026092046463 |
| Price group | 30 |

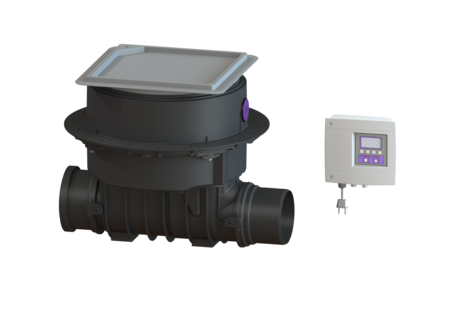

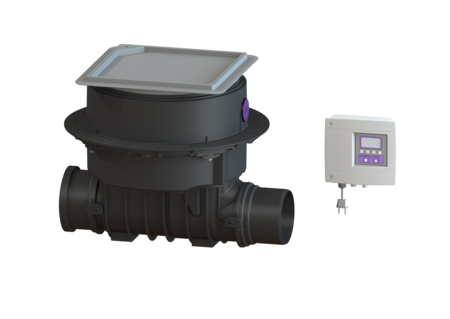

Staufix FKA auto. backwater valve DN 150, Floor slab, tileable
The Premium automatic backwater valve for faecal and faecal-free wastewater is equipped with a motor-driven closure system which is closed automatically in the event of backwater. A second closure system serves as an emergency closure to be closed by hand. The station is controlled by a user-friendly control unit, which is optionally integrated in the building management system via a potential-free contact, or alarm and collective fault messages can be output via a GSM interface. Thanks to the modular KESSEL system, existing systems can easily be converted to a Pumpfix F backwater pumping station. Variant Emergency closure: yes Protection class, probe: IP 68 (3m/48h) Motor-driven backwater flaps: 1 Mechanical backwater flaps: 1 General characteristics Colour: black Standard: EN 13564 Nominal size (DN): 150 Outer diameter (OD): 160 mm Type of wastewater: with sewage Installation situation: floor slab installation Delivery state: Pre-mounted for final assembly on site (sensor system must be fitted on site and control unit must be connected) Backwater protection: Type 3 Motor type: KSM 140 Type de protection moteur: IP 68 (3m/48h) Cable length: 5 m Dimensions Net weight: 17 kg Gross weight: 22,5 kg Groundwater resistant from lower edge of base section: 3000 mm Cutout dimension, width: 750 mm Cutout dimension, length: 750 mm Vertical drop between inlet and outlet: 9 mm Installation depth: 516 - 669 mm Type of height adjustability: vertically adjustable upper section Length: 656 mm Width: 590 mm Packaging dimension: length: 785 mm Packaging dimension: width: 615 mm Packaging dimension: height: 550 mm Tank/drain body Socket version: including spigot and socket Coverage features Type of cover: tileable cover plate Cover material: Polymer Width of cover: 366 mm Length of cover: 366 mm Locking: Lock & Lift Load class: K 3 (EN 1253-1) Tightness: surface water resistant Max. flooring height: 16 mm Control Control unit: Comfort Alarm sensor: optical probe Level measurement instrument: optical probe Type of level measurement: optical Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 230 V Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Connection to the BCS, BAC: yes
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Remote signal generator 20 m cable, 2x0.75 q | 20162 | Show |
 | Clearance code for potential-free contact | 80077 | Show |
 | Pumpfix F conversion kit DN 100-200, fr. 01/2011, Floor slab | 80098 | Show |
 | Cable accessories Extension for probe | 80889 | Show |
 | Cable accessories Extension for motor | 80890 | Show |
 | Cable accessories Extension for pump | 80891 | Show |
 | Extension section H: 200 mm | 83070 | Show |
 | Extension section H: 234 mm, with flange and mating flange | 83073 | Show |
 | Extension section H: 360 mm, with central flange | 83075 | Show |
| Title | Item no. | ||
|---|---|---|---|
 | Battery 9 V block | 680034 | Show |
 | Flap holder for motor-driven and mechanical flap | 680101 | Show |
 | Seal for upper section, from 07/2014 | 680150 | Show |
 | Seal for cover plate, System 330 mm | 686114 | Show |
 | Testing funnel with seal | 70214 | Show |
 | Seal set for split lockable covers | 70318 | Show |
 | Lockable cover Staufix FKA Inlet side | 80016 | Show |
 | Lockable cover Staufix FKA Outlet side | 80017 | Show |
 | Backwater flap motor-driven, with flap holder | 80038 | Show |
 | Slide-in flap housing for motorised flap with flap holder | 80039 | Show |
 | Slide-in flap housing with mechanical flap, flap holder | 80041 | Show |
 | Comfort control unit 230 V, Staufix FKA | 80071 | Show |
 | Drive motor plug-in ready, 5 m cable | 80076 | Show |
 | Spare part set, optical probe 5 m cable | 80888 | Show |
 | Adapter Set optical probe | 80892 | Show |
 | Cover plate surface water resistant, tileable | 830052 | Show |
 | Upper section system 400 Lockable, silver-grey | 830065 | Show |
 | Spigot DN 150, with seal | 83083 | Show |
 | Socket DN 150, with seal | 83087 | Show |
| Manuals | |
|---|---|
| CAD Data | |
| Test Reports and Certificates | |
| Declaration of Performance | |
| Declaration of Conformity |
- Nominal size (DN) (nennweite): 150
- Control unit (schaltgeraet):
Comfort
- Cover material (abdeckung_material):
Polymer
- Installation situation (einbausituation):
floor slab installation
- CE marking (ce_kennzeichnung):
yes
- Type of wastewater (abwasserart_de):
with sewage
- Type of cover (abdeckungsart): tileable cover plate
- Length (laenge): 656 mm
- Width (breite): 590 mm
- Backwater protection (rueckstauschutz): Type 3
