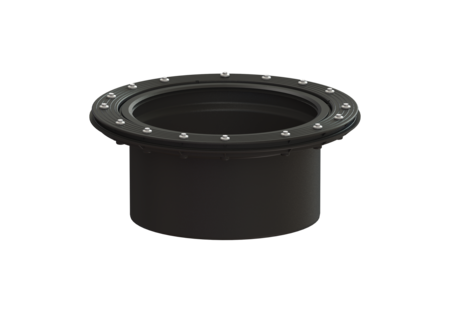

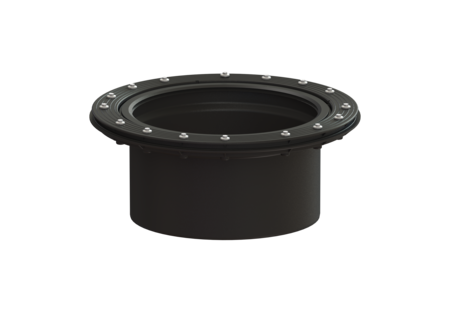

Extension section
H: 234 mm, with flange and mating flange
Extension section with flange and mating flange suitable for systems for floor slab installation. For connection to a membrane on site. Including 16 screws. Maintenance capability must be considered in case of deeper installation.
| Item no. | 83073 |
|---|---|
| GTIN | 4026092070062 |
| Price group | 30 |
Extension section H: 234 mm, with flange and mating flange
Extension section with flange and mating flange suitable for systems for floor slab installation. For connection to a membrane on site. Including 16 screws. Maintenance capability must be considered in case of deeper installation. Variant Seal: Lip seal General characteristics Colour: black Material: Polymer Dimensions Net weight: 5,66 kg Gross weight: 5,78 kg Diameter: 588 mm Clear width (LW): 400 mm Packaging dimension: length: 590 mm Packaging dimension: width: 590 mm Packaging dimension: height: 234 mm
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| CAD Data |
|---|
- Material (material):
Polymer
