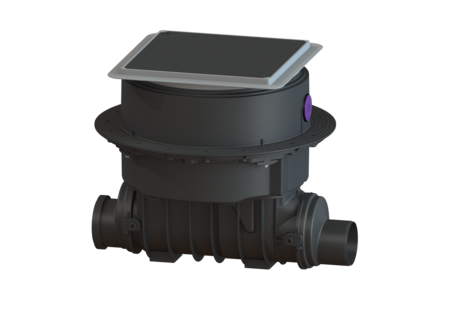

Controlfix clean out
DN 100, Floor slab, black
KESSEL Controlfix clean out, nominal size (DN) 100, black, wastewater for wastewater with and without sewage, locking Lock & Lift, floor slab installation, type of cover Cover plate
- Simple conversion to Staufix SWA
- Fast, simple and toolless maintenance
- Quick and toolless access for cleaning
| Item no. | 80100S |
|---|---|
| GTIN | 4026092004050 |
| Price group | 30 |
Controlfix clean out DN 100, Floor slab, black
The Premium clean out for faecal and faecal-free wastewater makes easy access to wastewater pipes possible for inspection and maintenance work. Thanks to the modular KESSEL system, existing systems can easily be converted to a Staufix SWA Premium backwater valve, Staufix FKA or Pumpfix F backwater pumping station. General characteristics Colour: black Nominal size (DN): 100 Outer diameter (OD): 110 mm Type of wastewater: for wastewater with and without sewage Installation situation: floor slab installation Delivery state: Installation-ready (connection parts must be connected on site) Dimensions Net weight: 14 kg Gross weight: 17,14 kg Groundwater resistant from lower edge of base section: 3000 mm Cutout dimension, width: 750 mm Cutout dimension, length: 750 mm Vertical drop between inlet and outlet: 9 mm Installation depth: 516 - 669 mm Type of height adjustability: vertically adjustable upper section Length: 486 mm Width: 590 mm Packaging dimension: length: 643,2 mm Packaging dimension: width: 590 mm Packaging dimension: height: 348 mm Tank/drain body Socket version: including spigot and socket Coverage features Type of cover: Cover plate Cover material: Polymer Colour of cover: black Width of cover: 366 mm Length of cover: 366 mm Locking: Lock & Lift Load class: L 15 (EN 1253-1) Tightness: surface water resistant
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Staufix FKA conversion kit DN 100-200, fr. 01/2011, 5 m cable | 80093 | Show |
 | Pumpfix F conversion kit DN 100-200, fr. 01/2011, Floor slab | 80098 | Show |
 | Cable accessories Extension for pump | 80891 | Show |
 | Extension section H: 200 mm | 83070 | Show |
 | Extension section H: 234 mm, with flange and mating flange | 83073 | Show |
 | Extension section H: 360 mm, with central flange | 83075 | Show |
| Title | Item no. | ||
|---|---|---|---|
 | Seal for upper section, from 07/2014 | 680150 | Show |
 | Seal for cover plate, System 330 mm | 686114 | Show |
 | Seal set for split lockable covers | 70318 | Show |
 | Lockable cover Controlfix Inlet side | 80011 | Show |
 | Lockable cover Controlfix Outlet side | 80012 | Show |
 | Cover plate surface water resistant, black 366x366mm | 830050 | Show |
 | Upper section system 400 Lockable, silver-grey | 830065 | Show |
 | Spigot DN 100, with seal | 83081 | Show |
 | Socket DN 100, with seal | 83085 | Show |
| Manuals | |
|---|---|
| CAD Data |
- Nominal size (DN) (nennweite): 100
- Cover material (abdeckung_material):
Polymer
- Installation situation (einbausituation):
floor slab installation
- Type of wastewater (abwasserart_de):
for wastewater with and without sewage
- Type of cover (abdeckungsart): Cover plate
- Length (laenge): 486 mm
- Width (breite): 590 mm
- (rueckstauschutz):
