Lifting stati. Aqualift F XL 300l
Duo, SPF 4500-S1,Cast-iron shut-off val.

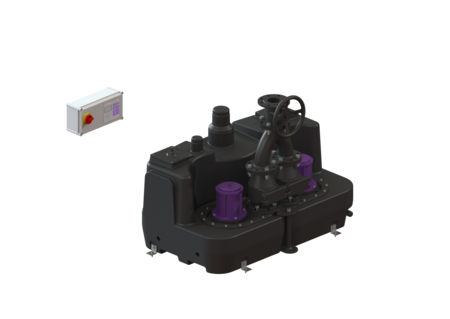

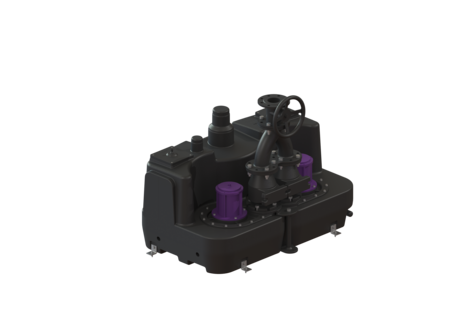

KESSEL Lifting stati. Aqualift F XL 300l Duo, duo pump, 400 V, operating mode S1, with 2 submersible SPF 4500-S1 pumps, alarm generator with Immersion pipe, shut-off valve Shut-off valve made of cast iron, Backflow preventer integrated, pressure pipe connection vertical
- Different performance classes available
- Pressure sensor for reliable pneumatic level measurement
- Maximum operating reliability due to intelligent control unit (Duo)
Item no. | 11124 |
---|---|
GTIN | 4026092057919 |
Price group | 50 |
Lifting stati. Aqualift F XL 300l Duo, SPF 4500-S1,Cast-iron shut-off val.
The lifting station for faecal and faecal-free wastewater is equipped with one or two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) offers universal connection options and has a screwed access cover. Variant Type of system: duo pump Shut-off valve: Shut-off valve made of cast iron Retaining bracket for the lift protection: yes Sound absorption mat: yes Pump control: Control unit Backflow preventer: integrated Pressure pipe connection: vertical General characteristics Colour: black Standard: EN 12050-1 Type of wastewater: with sewage Installation situation: free-standing installation Delivery state: Installation-ready (electrical components, connection parts must be connected on site) System type: Duo Dimensions Net weight: 212 kg Gross weight: 232 kg Length: 1260 mm Width: 889 mm Height: 1042 mm Packaging dimension: length: 1650 mm Packaging dimension: width: 1150 mm Packaging dimension: height: 890 mm Tank/drain body Pressure pipe connection (DN): 80 Pressure pipe connection (OD): 90 mm Connection for manual diaphragm pump (DN): 32 Venting connection (DN): 70 Inlet max. scoring (DN): 200 mm Inlet nominal size (OD): 110 mm Inlet nominal size (DN): 100 mm Number of inlets: 1 Pumping volume: 175 l Tank volume: 300 l Pumping device Pump: SPF 4500-S1 Number of pumps: 2 Weight, pump: 31 kg Connection type: Direct connection Rated current: 7,5 A Protection class: I Insulation class: F Cos phi - power factor: 0,88 Protection class (pump): IP 68 (3m/48h) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 55 m³/h Max. pumping height: 20 m Speed: 2850 U/min Power P1: 4,2 kW Power P2: 3,5 kW Operating mode: S1 Type of fuse required (electrical protection): 3 x C 25 A Type of pump connection cable: H07RN-F 7G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 40 mm Length of mains cable for pump: 5 m Control Control unit: Comfort Motor protection switch: yes Alarm sensor: Immersion pipe Level measurement instrument: Immersion pipe Type of level measurement: pneumatic Protection class control unit: IP 54 Operating voltage: 400 V Connection type: Direct connection Potential-free contact: yes GSM interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Type of fuse required (electrical protection): 3 x C 25 A
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. | ||
---|---|---|---|
Remote signal generator 20 m cable, 2x0.75 q | 20162 | Show | |
Retrofit kit Alarm float switch, for lifting station | 28014 | Show | |
Connection adapter Flange socket DN 100, press. pipe PE | 28020 | Show | |
Backflow preventer DN 80, grey cast iron | 28021 | Show | |
Compressor set for air bubbling | 28048 | Show | |
Connection adapter Flange socket DN 80, press. pipe PE | 28067 | Show | |
Flange adapter DN 80 to DN 100, Grey iron | 28068 | Show | |
Screw set for moulded parts DN80/DN100, M16x65 | 28078 | Show | |
Flexible coupling DN 80, L: 200 mm | 28662 | Show | |
Flexible coupling DN 100, for pressure pipes made of PE | 28663 | Show | |
Shut-off valve DN 80, Polymer, horizontal | 28682 | Show | |
Shut-off valve DN 100, Polymer, horizontal | 28683 | Show | |
Shut-off valve DN 100, Polymer | 28698 | Show | |
Shut-off valve DN 150, Polymer | 28699 | Show | |
Flange joint DN 100, for polymer fittings | 28712 | Show | |
Flange joint DN 80, for polymer fittings | 28713 | Show | |
Flange adapter DN 80, for polymer fitting | 28714 | Show | |
Shut-off valve DN 80, Polymer, vertical | 28715 | Show | |
Shut-off valve DN 80, Polymer, vertical with flange | 28716 | Show | |
TeleControl GSM modem for Comfort control units 230V/400V | 28792 | Show |
Title | Item no. | ||
---|---|---|---|
Retrofit kit Alarm float switch, for lifting station | 28014 | Show | |
Backflow preventer DN 80, grey cast iron | 28021 | Show | |
Shut-off valve DN 80, grey cast iron, with handwheel | 28041 | Show | |
Y-pipe DN 80 | 28042 | Show | |
Seal DN 80, for flange | 28043 | Show | |
Immersion pipe 5 m Schlauch, incl. screws | 28050 | Show | |
Replacement set pump flange with screw set, flange gasket | 28051 | Show | |
Pump drive SPF 4500 400 V, S1, 5 m cable | 28063 | Show | |
Non-return flap made of polymer, DN 80 | 28074 | Show | |
Comfort control unit 400V, Aqualift Duo, 2x6.3-10.0 A | 28783 | Show | |
Seal Rolling ring, DN 100 | 680001 | Show | |
Seal DN 150 | 680003 | Show | |
Battery 9 V block | 680034 | Show | |
Seal Pump flange | 680045 | Show | |
Attachment bracket with screws (2 ea.) | 680046 | Show | |
Screw set galvanised, 14 each | 680047 | Show | |
Pump flange SPF 1400 - SPF 4500 | 680050 | Show | |
Seal for SPF 1400 - SPF 4500 | 680052 | Show | |
Cleaning cover screwed, DN 160 | 680421 | Show |
Manuals | |
---|---|
CAD Data | |
Test Reports and Certificates | |
Declaration of Performance | |
Declaration of Conformity |
- CE marking (ce_kennzeichnung): yes
- Type of wastewater (abwasserart_de): with sewage
- Control unit (schaltgeraet): Comfort
- TÜV test mark (pruefzeichen): ID 1111241940
- Installation situation (einbausituation): free-standing installation
- Pump (pumpe): SPF 4500-S1
- Impeller type (laufrad_typ): Multi-vane impeller
- Shut-off valve (absperreinrichtung): Shut-off valve made of cast iron
