EasyClean free Direct grease separator

The uncomplicated solution for exposed installation.

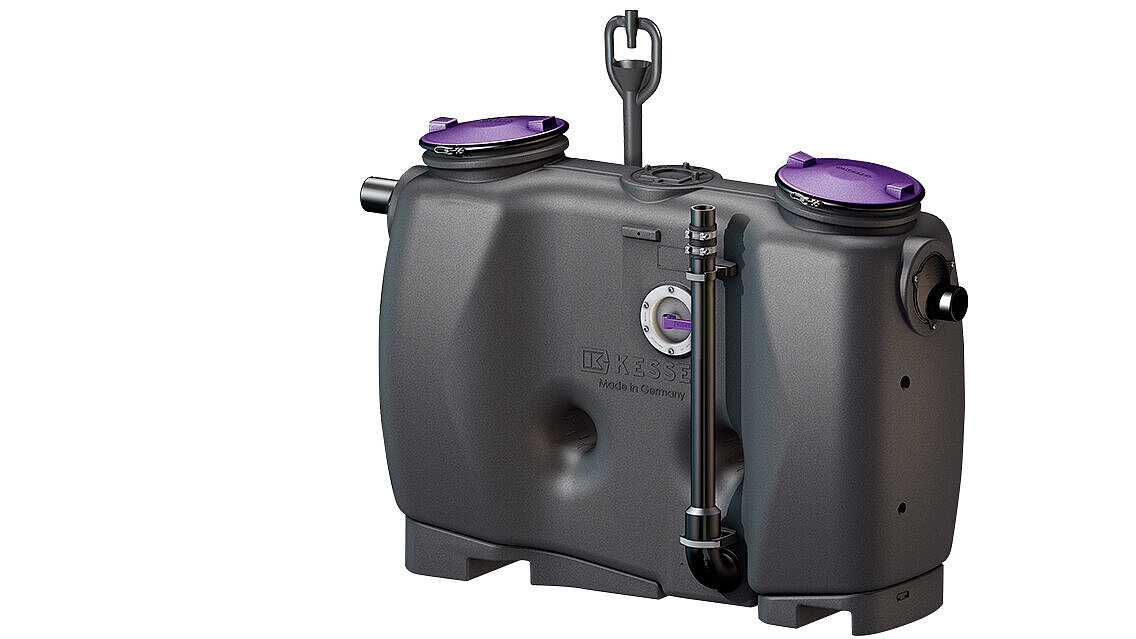

EasyClean free Direct grease separator, NS 2 - 10

The EasyClean free Direct is equipped with a direct disposal pipe, to which a permanently installed disposal pipe can be connected. Via this pipe, the tank can be easily emptied with the pump of the disposal vehicle, without having to be opened. It is preferably cleaning and rinsed with hot water through the maintenance openings.

The grease separator is available in nominal sizes NS 2 to NS 10, which is sufficient for most businesses such as restaurants and hotels. It is also available in nominal sizes NS 15 to NS 50 for larger volumes of wastewater. In addition, we also offer individual solutions for specific requirements and installation situations.

Advantages  Article overview

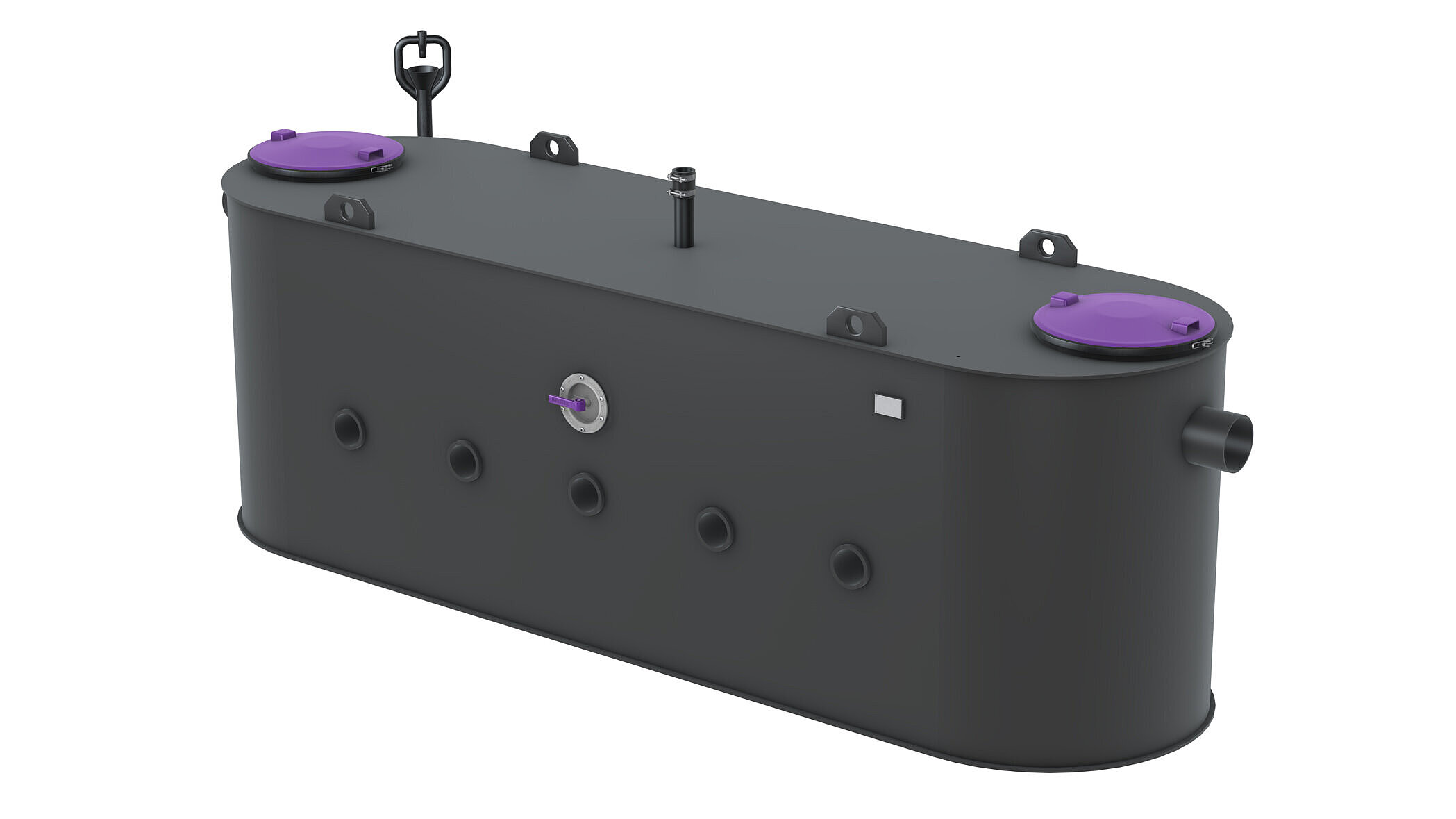

EasyClean free Direct grease separator, NS 15 - 50

The EasyClean free Direct offers the following advantage:

  • Direct disposal: Disposal via the direct disposal pipe – without opening the tank.

The KESSEL range includes even more grease separators with further advantages.

Polymer grease are durable and corrosion-free.

100 % corrosion-free – 20-year guarantee

Our grease separators are made of polyethylene. That makes them resistant to aggressive fatty acids and they are therefore particularly durable. Trust in KESSEL quality: In addition to the statutory provision, we provide a 20-year warranty with regard to the leak tightness, fitness for purpose and structural stability of tanks and upper sections.

SonicControl grease layer thickness measuring device

SonicControl

The SonicControl automatic layer thickness measuring device with ultrasound sensor precisely monitors the temperature and thickness of the grease layer in grease separators. Owners/operating companies can verify the actual quantity of grease produced to the relevant authorities and optimise the necessary disposal cycles outside of standard requirements.

More information

Changeover socket for EasyClean free grease separator

Changeover socket

The flow direction can easily be changed on site thanks to the self-sealing changeover socket. A distinction no longer needs to be made between the “direction of flow right” or “direction of flow left” variants – making the design much easier.

Important: Stricter limit values!

When grease separators are used, the wastewater at the outlet has a residual value of lipophilic materials of about 300 mg/L. If the municipalities specify a limit value below 300 mg/L, biological grease treatment with a Bifena unit is necessary.

BIFENA biological grease treatment

EasyClean free Direct


With SonicControl

  Inlet nominal size (DN)Nominal size (NS)Outlet nominal size (DN)Set-up area, widthSet-up area, length Item no.
93002.02/D93002.02/D 100  mm 2 100  mm 706  mm 1.735  mm 93002.02/D
Show
93003.02/D93003.02/D 100  mm 3 100  mm 706  mm 1.736  mm 93003.02/D
Show
93004.02/D93004.02/D 100  mm 4 100  mm 702  mm 2.116  mm 93004.02/D
Show
93007.02/D93007.02/D 150  mm 7 150  mm 970  mm 2.147  mm 93007.02/D
Show
93010.02/D93010.02/D 150  mm 10 150  mm 973  mm 2.822  mm 93010.02/D
Show

  Inlet nominal size (DN)Nominal size (NS)Outlet nominal size (DN)Set-up area, widthSet-up area, length Item no.
93002.22/D93002.22/D 100  mm 2 100  mm 706  mm 1.735  mm 93002.22/D
Show
93003.22/D93003.22/D 100  mm 3 100  mm 706  mm 1.736  mm 93003.22/D
Show
93004.22/D93004.22/D 100  mm 4 100  mm 702  mm 2.116  mm 93004.22/D
Show
93007.22/D93007.22/D 150  mm 7 150  mm 970  mm 2.147  mm 93007.22/D
Show
93010.22/D93010.22/D 150  mm 10 150  mm 973  mm 2.822  mm 93010.22/D
Show

  Inlet nominal size (DN)Nominal size (NS)Outlet nominal size (DN)Set-up area, widthSet-up area, length Item no.
93002.12/D93002.12/D 100  mm 2 100  mm 706  mm 1.735  mm 93002.12/D
Show
93003.12/D93003.12/D 100  mm 3 100  mm 706  mm 1.736  mm 93003.12/D
Show
93004.12/D93004.12/D 100  mm 4 100  mm 702  mm 2.116  mm 93004.12/D
Show
93007.12/D93007.12/D 150  mm 7 150  mm 970  mm 2.147  mm 93007.12/D
Show
93010.12/D93010.12/D 150  mm 10 150  mm 973  mm 2.822  mm 93010.12/D
Show

  Inlet nominal size (DN)Nominal size (NS)Outlet nominal size (DN)Set-up area, widthSet-up area, length Item no.
93002.32/D93002.32/D 100  mm 2 100  mm 706  mm 1.735  mm 93002.32/D
Show
93003.32/D93003.32/D 100  mm 3 100  mm 706  mm 1.736  mm 93003.32/D
Show
93004.32/D93004.32/D 100  mm 4 100  mm 702  mm 2.116  mm 93004.32/D
Show
93007.32/D93007.32/D 150  mm 7 150  mm 970  mm 2.147  mm 93007.32/D
Show
93010.32/D93010.32/D 150  mm 10 150  mm 973  mm 2.822  mm 93010.32/D
Show

Without SonicControl

  Inlet nominal size (DN)Nominal size (NS)Outlet nominal size (DN) Item no.
93002.01/D93002.01/D 100  mm 2 100  mm 93002.01/D
Show
93003.01/D93003.01/D 100  mm 3 100  mm 93003.01/D
Show
93004.01/D93004.01/D 100  mm 4 100  mm 93004.01/D
Show
93007.01/D93007.01/D 150  mm 7 150  mm 93007.01/D
Show
93010.01/D93010.01/D 150  mm 10 150  mm 93010.01/D
Show
93020.01/D
 200  mm 20 200  mm 93020.01/D
Show
93025.01/D
 200  mm 25 200  mm 93025.01/D
Show
93030.01/D
 250  mm 30 250  mm 93030.01/D
Show
93035.01/D
 250  mm 35 250  mm 93035.01/D
Show
93040.01/D
 250  mm 40 250  mm 93040.01/D
Show
93050.01/D
 250  mm 50 250  mm 93050.01/D
Show

  Inlet nominal size (DN)Nominal size (NS)Outlet nominal size (DN) Item no.
93002.21/D93002.21/D 100  mm 2 100  mm 93002.21/D
Show
93003.21/D93003.21/D 100  mm 3 100  mm 93003.21/D
Show
93004.21/D93004.21/D 100  mm 4 100  mm 93004.21/D
Show
93007.21/D93007.21/D 150  mm 7 150  mm 93007.21/D
Show
93010.21/D93010.21/D 150  mm 10 150  mm 93010.21/D
Show

  Inlet nominal size (DN)Nominal size (NS)Outlet nominal size (DN) Item no.
93002.31/D93002.31/D 100  mm 2 100  mm 93002.31/D
Show
93003.31/D93003.31/D 100  mm 3 100  mm 93003.31/D
Show
93004.31/D93004.31/D 100  mm 4 100  mm 93004.31/D
Show
93007.31/D93007.31/D 150  mm 7 150  mm 93007.31/D
Show
93010.31/D93010.31/D 150  mm 10 150  mm 93010.31/D
Show
93015-01-D-L93015-01-D-L 200  mm 15 200  mm 93015-01-D-L
Show
93015-01-D-R93015-01-D-R 200  mm 15 200  mm 93015-01-D-R
Show
93020-01-D-L93020-01-D-L 200  mm 20 200  mm 93020-01-D-L
Show
93020-01-D-R93020-01-D-R 200  mm 20 200  mm 93020-01-D-R
Show

  Inlet nominal size (DN)Nominal size (NS)Outlet nominal size (DN) Item no.
93002.11/D93002.11/D 100  mm 2 100  mm 93002.11/D
Show
93003.11/D93003.11/D 100  mm 3 100  mm 93003.11/D
Show
93004.11/D93004.11/D 100  mm 4 100  mm 93004.11/D
Show
93007.11/D93007.11/D 150  mm 7 150  mm 93007.11/D
Show
93010.11/D93010.11/D 150  mm 10 150  mm 93010.11/D
Show
