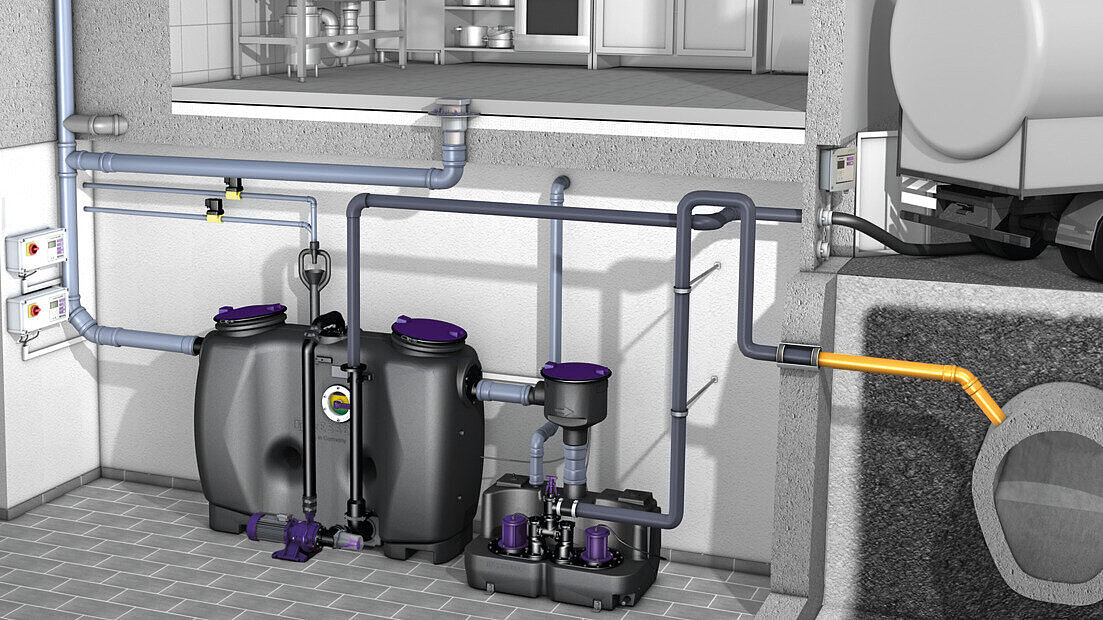

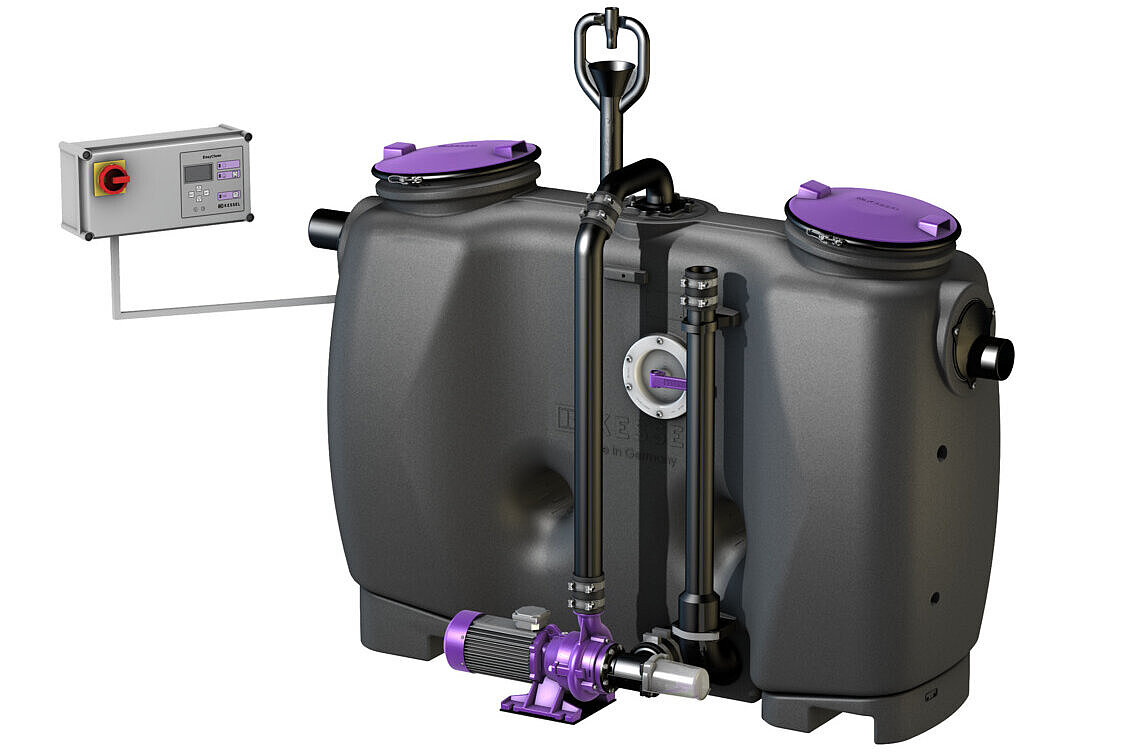

The mix makes the difference. The EasyClean free Auto Mix is a grease separator with direct disposal, shredder-mix system for circulation and homogenisation of the tank contents and a control unit for central control of the shredder-mix system and refill inlet. The contents of the closed tank are extracted through permanently installed pipes, onto which the disposal vehicle’s pump is coupled on the outside of the building.
The grease separator is available in nominal sizes NS 2 to NS 10, which is sufficient for most businesses such as restaurants and hotels. It is also available in nominal sizes NS 15 to NS 50 for larger volumes of wastewater. In addition, we also offer individual solutions for specific requirements and installation situations.
The EasyClean free Auto Mix offers many advantages:
- Direct disposal: Disposal via the direct disposal pipe – without opening the tank.
- No odour emissions: The shredder-mix system ensures odourless disposal and cleaning.
- Central control: The shredder-mix system and refill inlet can be controlled via the control unit.
100 % corrosion-free – 20-year guarantee
Our grease separators are made of polyethylene. That makes them resistant to aggressive fatty acids and they are therefore particularly durable. Trust in KESSEL quality: In addition to the statutory provision, we provide a 20-year warranty with regard to the leak tightness, fitness for purpose and structural stability of tanks and upper sections.
SonicControl
The SonicControl automatic layer thickness measuring device with ultrasound sensor precisely monitors the temperature and thickness of the grease layer in grease separators. Owners/operating companies can verify the actual quantity of grease produced to the relevant authorities and optimise the necessary disposal cycles outside of standard requirements.

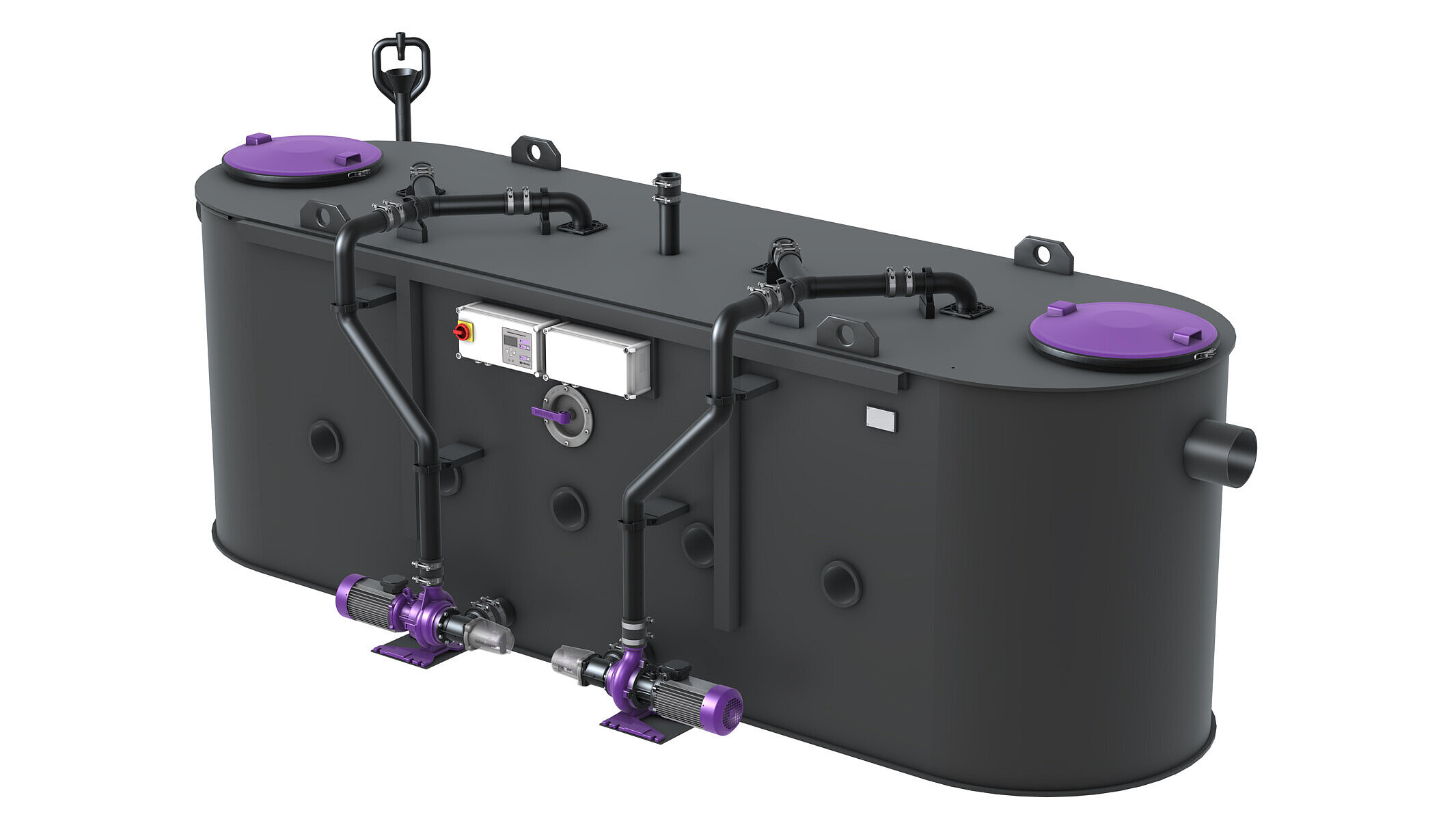

EasyClean free Auto Mix
With SonicControl
| Nominal size (NS) | Sludge bucket | Refill inlet in accordance with DIN 1988 | Set-up area, width | Set-up area, length | Item no. | ||
|---|---|---|---|---|---|---|---|
93002.02/DSP | 2 | yes | yes | 841 mm | 1.736 mm | 93002.02/DSP | Show |
93003.02/DSP | 3 | yes | yes | 841 mm | 1.736 mm | 93003.02/DSP | Show |
93004.02/DSP | 4 | yes | yes | 842 mm | 2.116 mm | 93004.02/DSP | Show |
93007.02/DSP | 7 | yes | yes | 1.108 mm | 2.147 mm | 93007.02/DSP | Show |
93010.02/DSP | 10 | yes | yes | 1.108 mm | 2.822 mm | 93010.02/DSP | Show |
Without SonicControl
| Nominal size (NS) | Sludge bucket | Refill inlet in accordance with DIN 1988 | Set-up area, width | Set-up area, length | Item no. | ||
|---|---|---|---|---|---|---|---|
93002.01/DSP | 2 | yes | yes | 841 mm | 1.736 mm | 93002.01/DSP | Show |
93003.01/DSP | 3 | yes | yes | 841 mm | 1.736 mm | 93003.01/DSP | Show |
93004.01/DSP | 4 | yes | yes | 842 mm | 2.116 mm | 93004.01/DSP | Show |
93007.01/DSP | 7 | yes | yes | 1.108 mm | 2.147 mm | 93007.01/DSP | Show |
93010.01/DSP | 10 | yes | yes | 1.108 mm | 2.822 mm | 93010.01/DSP | Show |
93015-01-DSP-L | 15 | yes | yes | 1.680 mm | 3.530 mm | 93015-01-DSP-L | Show |
93015-01-DSP-R | 15 | yes | yes | 1.680 mm | 3.530 mm | 93015-01-DSP-R | Show |
93015.01/DSP | 15 | yes | yes | 1.620 mm | 3.560 mm | 93015.01/DSP | Show |
93020-01-DSP-L | 20 | yes | yes | 1.680 mm | 3.530 mm | 93020-01-DSP-L | Show |
93020-01-DSP-R | 20 | yes | yes | 1.680 mm | 3.530 mm | 93020-01-DSP-R | Show |
| 93020.01/DSP | 20 | yes | yes | 1.620 mm | 4.510 mm | 93020.01/DSP | Show |
93030-06-DSP | 30 | yes | yes | 1.600 mm | 5.160 mm | 93030-06-DSP | Show |
| 93030.01/DSP | 30 | yes | yes | 1.620 mm | 4.860 mm | 93030.01/DSP | Show |
| 93035.01/DSP | 35 | yes | yes | 1.770 mm | 6.480 mm | 93035.01/DSP | Show |
| 93040.01/DSP | 40 | yes | yes | 1.870 mm | 6.680 mm | 93040.01/DSP | Show |
| 93050.01/DSP | 50 | yes | yes | 2.070 mm | 6.680 mm | 93050.01/DSP | Show |
