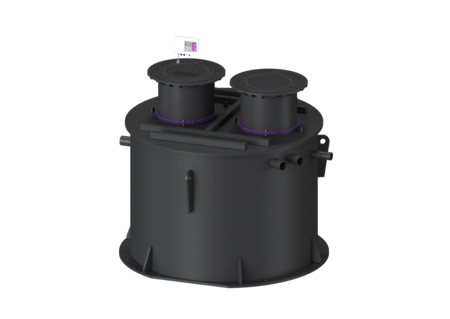

Grease separator EasyClean ground

Multi, NS 4, Standard, 550-960 mm, B

96004.80B
96004.80B
PDF product data sheet

KESSEL Grease separator EasyClean ground, disposal Standard, nominal size 4,00, load class B 125, underground installation, installation depth 550 - 960 mm, type of disposal manual with suction hose, Twin walled re-enforced pipe chamber, alarm generator with Level sensor

  • Vertically adjustable upper section with odour-tight cover plates in various load classes
  • Waterproof, resistant to aggressive wastewater
  • Low-maintenance operation
Item no. 96004.80B
GTIN 4026092098127
Price group 60

    Grease separator EasyClean ground Multi, NS 4, Standard, 550-960 mm, B
    The unit for an underground installation combines a separator for greasy wastewater incl. sludge trap, a sampling system and a pumping station. The tank of all system parts is made of permanently resistant polymer (PE). The individual system parts can be accessed for cleaning and maintenance work via two service access covers. Manual disposal takes place with the tank open. The pumping station is equipped with two submersible pumps and a backflow preventer. The submersible pumps are placed in the tank using guide rods. The pumps are actuated via a level sensor. The station is controlled by a user-friendly control unit, which can be connected to the building control system via a potential-free contact. Alternatively, alarm and collective fault messages can be sent by way of a GSM interface. A load distribution slab must be installed on site for load class D. The reinforcement drawings are available from KESSEL. 20 year polyethylene warranty. Variant Chamber system: Twin walled re-enforced pipe chamber Disposal variant: Standard Shredder-Mix-System: no Nominal size (NS): 4,00 SonicControl: no Type of disposal: manual with suction hose Load-bearing capacity (DIN 19901): E2 General characteristics Installation situation: underground installation Dimensions Net weight: 1030 kg Gross weight: 1084 kg Groundwater resistant from lower edge of base section: 2085 mm Installation depth: 550 - 960 mm Length: 2160 mm Width: 2505 mm Packaging dimension: length: 3400 mm Packaging dimension: width: 2250 mm Packaging dimension: height: 1835 mm Tank/drain body Pressure pipe connection (DN): 90 Pressure pipe connection (OD): 90 mm Distance pipe bottom outlet to tank bottom: 830 mm Distance pipe bottom inlet to tank bottom: 1125 mm Outlet nominal size (OD): 110 mm Number of outlets: 1 Outlet nominal size (DN): 100 mm Inlet nominal size (OD): 110 mm Inlet nominal size (DN): 100 mm Number of inlets: 1 Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, PVC-KG pipes in accordance with DIN 19534, PP or AS Clear width of entry (LW): 600 mm Coverage features Type of cover: Cover plate Cover material: Grey iron Colour of cover: black Height of cover: 95 mm Locking: unlocked Load class: B 125 (EN 124) Tightness: odour-tight and surface water resistant Wastewater contents Separator contents: 1000 l Max. grease layer thickness: 110 mm Total volume: 1400 l Contents of sludge trap: 400 l Storage quantity of grease: 160 l Pumping device Pump: GTF 1400 Number of pumps: 2 Weight, pump: 12 kg Protection class: I Insulation class: H Cos phi - power factor: 0,8 Protection class (pump): IP 68 Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 31 m³/h Max. pumping height: 10,5 m Speed: 2900 U/min Power P1: 1,5 kW Power P2: 1,1 kW Operating mode: S1 Type of pump connection cable: H07RN-F 4G 1.5 mm² mm² Impeller type: Multi-vane impeller Length of mains cable for pump: 10 m Rated current: 6,5 A Control Control unit: Comfort Motor protection switch: yes Alarm sensor: Level sensor Level measurement instrument: Level sensor Type of level measurement: hydrostatic Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 400 V Potential-free contact: yes GSM interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Type of fuse required (electrical protection): C 16 A
      Title Item no.
      Title Item no.
      Title Item no.
    72300 Connect Pro module LTE f. control unit w. Connect Pro interface 72300 Show
    9151010B Sampling chamber LW 1000, DN 100, Class B 9151010B Show
    915880B Sampling chamber LW 400, DN 100/150, class B 915880B Show
    915882B Sampling chamber DN 150, Class B 915882B Show
    917419.00 Direct disposal Disposal connection, right 917419.00 Show
    917419.50 Direct disposal Disposal connection, left 917419.50 Show
    917422B Disposal chamber LW 400, underground separators, A/B 917422B Show
    917422D Disposal chamber LW 400, underground separators, D 917422D Show
    917821 Layer thickness measuring device SonicControl, for grease separators 917821 Show
    917823 SonicControl cable gland Underground separator installation set 917823 Show
    917871 Cable extension 10 m, for SonicControl grease separator 917871 Show
    917872 Cable extension 20 m, for SonicControl grease separator 917872 Show
    917873 Cable extension 30 m, for SonicControl grease separator 917873 Show
      Title Item no.
    • Control unit (schaltgeraet): Comfort
    • Installation situation (einbausituation): underground installation
    • Nominal size (NS) (nenngroesse): 4
    • Load class (belastungsklasse): B 125 (EN 124)
    • Installation depth (einbautiefe): 550  mm
    • (fliessrichtung):
