Grease separator EasyClean free

NS 25, Auto Mix & Pump

93025-06-PVS
93025-06-PVS
PDF product data sheet

KESSEL Grease separator EasyClean free, disposal Auto Mix & Pump, Set-up area, width 1600 mm, nominal size 25,00, Separator capacity 2050 l, control unit yes, free-standing installation, type of disposal automatic disposal and cleaning system, no

  • Clean and odour-free disposal and cleaning
  • Customisation possible through control unit
  • Clean and odour-free disposal and cleaning
Item no. 93025-06-PVS
GTIN 4026092103265
Price group 60

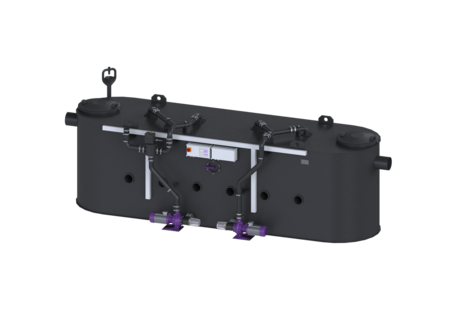

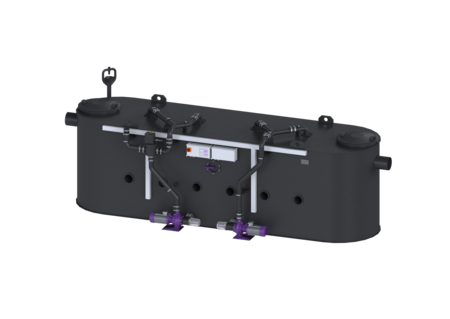

Grease separator EasyClean free NS 25, Auto Mix & Pump
The separator for greasy wastewater is suitable for free-standing set-up in frost-protected rooms and comes without metallic components in the tank. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and has slopes in the tank base for fast and clean disposal. Two odour-tight covers with quick-release closures make easy access possible for cleaning and maintenance work. The innovative Shredder-Mix-System with integrated macerating system is responsible for homogenising and circulating the tank contents. Cleaning and odour-neutral disposal takes place via an exterior pump with 2-way valve and actuator which can be disconnected from the tank by a shut-off valve. The fully automatic program run is controlled by a user-friendly control unit with multi-line display that can be integrated into the building management system through a potential-free contact. Cleaning and disposal can be started remotely using the remote control, which is available as an option. Thanks to the customisable cleaning program with fast-selection function, cleaning can be adapted to the local circumstances as required. Observance of the Drinking Water Hygiene Directive can be guaranteed through the fully automatic rinsing of the drinking water pipes. 20 year polyethylene warranty. Variant Shut-off valve: yes Disposal variant: Auto Mix & Pump Shredder-Mix-System: yes Sludge bucket: yes Nominal size (NS): 25,00 SonicControl: no Disposal system: Disposal pump Refill inlet in accordance with DIN 1988: yes Type of disposal: automatic disposal and cleaning system Water supply: 2 solenoid valves 1" Load-bearing capacity (DIN 19901): F3 General characteristics Material: PE Standard: EN 1825: 2004 Installation situation: free-standing installation Delivery state: Installation-ready (electrical components, connection parts must be connected on site) Scope of delivery: Storz-B coupling R 2 1/2" for disposal vehicle connection Dimensions Net weight: 650 kg Gross weight: 650 kg Diameter: 630 mm Set-up area, length: 5140 mm Set-up area, width: 1600 mm Set-up area, height: 1625 mm Required access area, length: 5140 mm Required access area, width: 1280 mm Required access area, height: 1625 mm Length: 5140 mm Width: 1600 mm Height: 1625 mm Packaging dimension: length: 4800 mm Packaging dimension: width: 1800 mm Packaging dimension: height: 1960 mm Tank/drain body Nominal pressure (PN): 10 Pressure pipe connection (DN): 65 Pressure pipe connection (OD): 75 mm Distance pipe bottom outlet to tank bottom: 1030 mm Distance pipe bottom inlet to tank bottom: 1100 mm Outlet nominal size (OD): 200 mm Outlet nominal size (DN): 200 mm Inlet nominal size (OD): 200 mm Inlet nominal size (DN): 200 mm Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, HT pipes in accordance with DIN 19560, PP or AS Coverage features Type of cover: Cover Cover material: Polymer Colour of cover: black Locking: Quick-release closure Tightness: odour-tight Wastewater contents Separator contents: 2050 l Total volume: 4550 l Contents of sludge trap: 2500 l Storage quantity of grease: 1000 l Pumping device Pump: SPF 300 KE 2.0 Number of pumps: 2 Weight, pump: 44 kg Connection type: Direct connection Rated current: 6,2 A Protection class: I Insulation class: F Cos phi - power factor: 0,87 Protection class (pump): IP 55 Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 60 m³/h Max. pumping height: 17 m Speed: 2850 U/min Power P1: 3,6 kW Power P2: 3 kW Operating mode: S2 - 30 min. Type of fuse required (electrical protection): Fuse protection through control unit 400 V Type of pump connection cable: H07RN-F 7G 1.5 mm² Impeller type: Radial impeller with macerating system Length of mains cable for pump: 5 m Control Control unit: yes Motor protection switch: yes Type of fuse required (RCD): 30 mA Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 400 V Connection type: Direct connection Potential-free contact: yes GSM interface: no USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: no Self-diagnosis system (SDS): yes Type of fuse required (electrical protection): Fuse protection through control unit 400 V
  Title Item no.
  Title Item no.
  Title Item no.
72300 Connect Pro module LTE f. control unit w. Connect Pro interface 72300 Show
915883 Sampling system DN 200, horizontal 915883 Show
917821 Layer thickness measuring device SonicControl, for grease separators 917821 Show
917871 Cable extension 10 m, for SonicControl grease separator 917871 Show
917872 Cable extension 20 m, for SonicControl grease separator 917872 Show
917873 Cable extension 30 m, for SonicControl grease separator 917873 Show
  Title Item no.
CAD Data
Declaration of Performance
Declaration of Conformity
  • Material (material): PE
  • CE marking (ce_kennzeichnung): yes
  • Disposal variant (entsorgungsvariante): Auto Mix & Pump
  • Control unit (schaltgeraet): yes
  • Cover material (abdeckung_material): Polymer
  • Disposal system (entsorgungseinrichtung): Disposal pump
  • Installation situation (einbausituation): free-standing installation
  • Shredder-Mix-System (schredder_mix_system): yes
  • Nominal size (NS) (nenngroesse): 25
  • Sludge bucket (schauglas): yes
  • Refill inlet in accordance with DIN 1988 (fuelleinrichtung): yes
  • Set-up area, width (aufstellflaeche_breite): 1.600  mm
  • Set-up area, length (aufstellflaeche_laenge): 5.140  mm
