Grease separator EasyClean free

NS 25, Standard

93025-06
PDF product data sheet

KESSEL Grease separator EasyClean free, nominal size 25,00, Set-up area, width 1280 mm, free-standing installation, disposal Standard, type of disposal manual with suction hose, tightness odour-tight, locking Quick-release closure, no

  • Can be retrofitted up to Auto Mix & Pump
  • Low-maintenance operation
Item no. 93025-06
GTIN 4026092103142
Price group 60

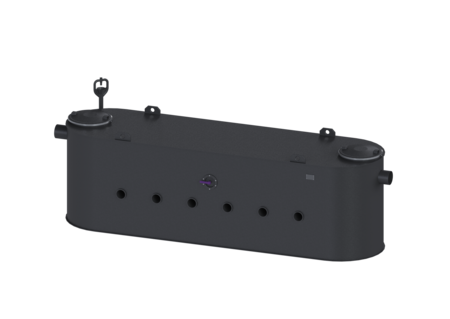

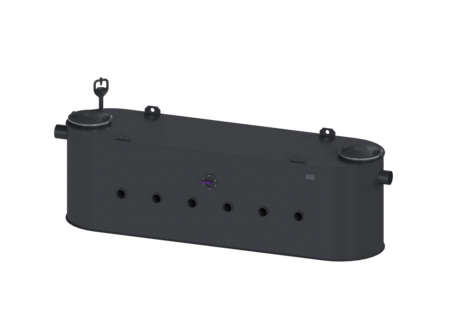

Grease separator EasyClean free NS 25, Standard
The separator for greasy wastewater is suitable for free-standing set-up in frost-protected rooms and comes without metallic components in the tank. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and has slopes in the tank base for fast and clean disposal. Two odour-tight covers with quick-release closures make easy access possible for cleaning and maintenance work. Manual disposal is carried out with the tank open. 20 year polyethylene warranty. Variant Disposal variant: Standard Shredder-Mix-System: no Sludge bucket: no Nominal size (NS): 25,00 SonicControl: no Refill inlet in accordance with DIN 1988: no Type of disposal: manual with suction hose Load-bearing capacity (DIN 19901): F3 General characteristics Material: PE Standard: EN 1825: 2004 Installation situation: free-standing installation Delivery state: Installation-ready (connection parts must be connected on site) Dimensions Net weight: 445 kg Gross weight: 445 kg Diameter: 630 mm Set-up area, length: 5140 mm Set-up area, width: 1280 mm Set-up area, height: 1625 mm Required access area, length: 5140 mm Required access area, width: 1280 mm Required access area, height: 1625 mm Length: 5140 mm Width: 1600 mm Height: 1625 mm Packaging dimension: length: 5140 mm Packaging dimension: width: 1280 mm Packaging dimension: height: 1625 mm Tank/drain body Distance pipe bottom outlet to tank bottom: 1030 mm Distance pipe bottom inlet to tank bottom: 1100 mm Outlet nominal size (OD): 200 mm Outlet nominal size (DN): 200 mm Inlet nominal size (OD): 200 mm Inlet nominal size (DN): 200 mm Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, HT pipes in accordance with DIN 19560, PP or AS Coverage features Type of cover: Cover Cover material: Polymer Colour of cover: black Locking: Quick-release closure Tightness: odour-tight Wastewater contents Separator contents: 2050 l Total volume: 4550 l Contents of sludge trap: 2500 l Storage quantity of grease: 1000 l Control Control unit: no
  Title Item no.
  Title Item no.
  Title Item no.
72300 Connect Pro module LTE f. control unit w. Connect Pro interface 72300 Show
915883 Sampling system DN 200, horizontal 915883 Show
917821 Layer thickness measuring device SonicControl, for grease separators 917821 Show
917871 Cable extension 10 m, for SonicControl grease separator 917871 Show
917872 Cable extension 20 m, for SonicControl grease separator 917872 Show
917873 Cable extension 30 m, for SonicControl grease separator 917873 Show
  Title Item no.
Declaration of Performance
Declaration of Conformity
  • Material (material): PE
  • Cover material (abdeckung_material): Polymer
  • Installation situation (einbausituation): free-standing installation
  • CE marking (ce_kennzeichnung): yes
  • Nominal size (NS) (nenngroesse): 25
  • Inlet nominal size (DN) (zulauf_nennweite_dn): 200  mm
  • Outlet nominal size (DN) (auslauf_nennweite_dn): 200  mm
  • Set-up area, width (aufstellflaeche_breite): 1.280  mm
  • Set-up area, length (aufstellflaeche_laenge): 5.140  mm
