Sampling chamber

DN 250, Class D

915884D
PDF product data sheet

Sampling chamber LW 450 for separators, for underground installation, draining, watertight, resistant to aggressive wastewater. Upper section made of polymer for continuous adjustable height and level adjustment. Flow direction: straight A load distribution slab must be installed on site for load class D. The reinforcement drawings are available from KESSEL. Chamber system: LW 450 Inlet installation depth: 950 to 1300 mm (can be shortened to 450 mm by sawing)

Item no. 915884D
GTIN 4026092086315
Price group 60

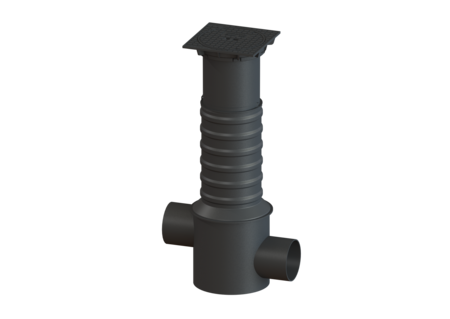

    Sampling chamber DN 250, Class D
    Sampling chamber LW 450 for separators, for underground installation, draining, watertight, resistant to aggressive wastewater. Upper section made of polymer for continuous adjustable height and level adjustment. Flow direction: straight A load distribution slab must be installed on site for load class D. The reinforcement drawings are available from KESSEL. Chamber system: LW 450 Inlet installation depth: 950 to 1300 mm (can be shortened to 450 mm by sawing) General characteristics Material: PE Nominal size (DN): 250 Outer diameter (OD): 260 mm Dimensions Net weight: 15 kg Gross weight: 15 kg Vertical drop between inlet and outlet: 160 mm Installation depth: 950 - 1300 mm Packaging dimension: length: 700 mm Packaging dimension: width: 800 mm Packaging dimension: height: 1200 mm Coverage features Type of cover: Cover plate Cover material: Grey iron Load class: D 400 (EN 124) Tightness: odour-tight and surface water resistant
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Nominal size (DN) (nennweite): 250
    • Material (material): PE
