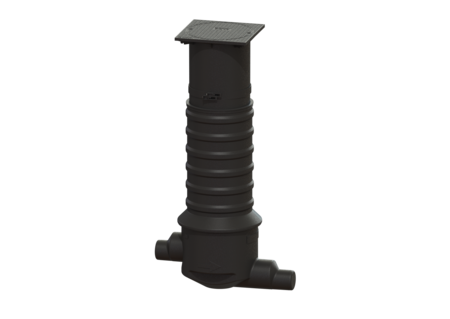

Sampling chamber
LW 400, DN 100/150, class A
Sampling chamber LW 400 for separators, for underground installation, draining, watertight, resistant to aggressive wastewater. Minimum installation depth can be achieved by sawing to required length. Flow direction: straight
Item no. | 915880A |
---|---|
GTIN | 4026092025048 |
Price group | 60 |

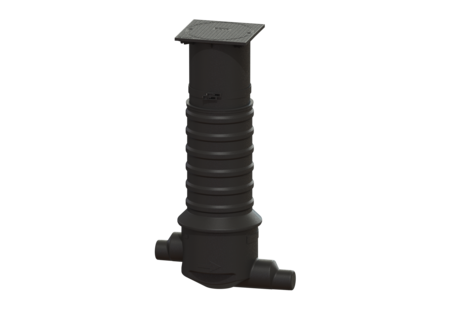

Sampling chamber LW 400, DN 100/150, class A
Sampling chamber LW 400 for separators, for underground installation, draining, watertight, resistant to aggressive wastewater. Minimum installation depth can be achieved by sawing to required length. Flow direction: straight General characteristics Colour: black Material: PE Dimensions Net weight: 14 kg Gross weight: 20 kg Vertical drop between inlet and outlet: 120 mm Installation depth: 400 - 1300 mm Type of height adjustability: vertically adjustable upper section Packaging dimension: length: 700 mm Packaging dimension: width: 800 mm Packaging dimension: height: 1270 mm Tank/drain body Distance pipe bottom inlet to tank bottom: 120 mm Outlet nominal size (OD): 110 mm Outlet nominal size (DN): 100 mm Inlet nominal size (OD): 110 mm Inlet nominal size (DN): 100 mm Clear width of tank (LW): 400 mm Coverage features Type of cover: Cover plate Cover material: Polymer Colour of cover: black Load class: A 15 (EN 124) Tightness: odour-tight and surface water resistant
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. |
---|
- Material (material): PE
- Cover material (abdeckung_material): Polymer
