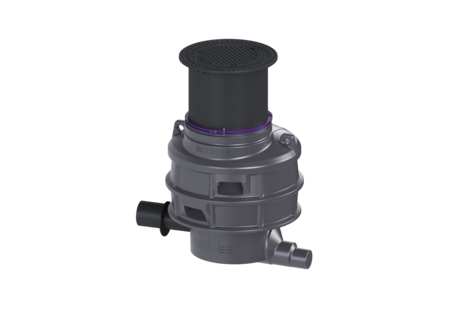

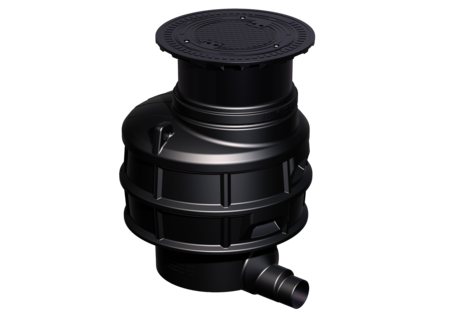

Sampling chamber

LW 1000, DN 200, Class D

9151020D
PDF product data sheet

Sampling chamber LW 1000 for separators, for underground installation, with access steps, watertight, resistant to aggressive wastewater. Upper section made of polymer for continuously variable height and level adjustment, cover plate made of grey cast iron (GG) to EN 124, screwed, with removal key. Flow direction: straight A load distribution slab must be installed on site for load class D. The reinforcement drawings are available from KESSEL.

Item no. 9151020D
GTIN 4026092030837
Price group 60

    Sampling chamber LW 1000, DN 200, Class D
    Sampling chamber LW 1000 for separators, for underground installation, with access steps, watertight, resistant to aggressive wastewater. Upper section made of polymer for continuously variable height and level adjustment, cover plate made of grey cast iron (GG) to EN 124, screwed, with removal key. Flow direction: straight A load distribution slab must be installed on site for load class D. The reinforcement drawings are available from KESSEL. General characteristics Colour: black Material: PE Nominal size (DN): 200 Outer diameter (OD): 200 mm ATEX: no Dimensions Net weight: 105 kg Gross weight: 116 kg Clear width (LW): 1000 mm Installation depth: 1145 - 1585 mm Packaging dimension: length: 2000 mm Packaging dimension: width: 1100 mm Packaging dimension: height: 1250 mm Tank/drain body Distance pipe bottom inlet to tank bottom: 160 mm Coverage features Load class: D 400 (EN 124) Tightness: surface water resistant
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Nominal size (DN) (nennweite): 200
    • Material (material): PE
