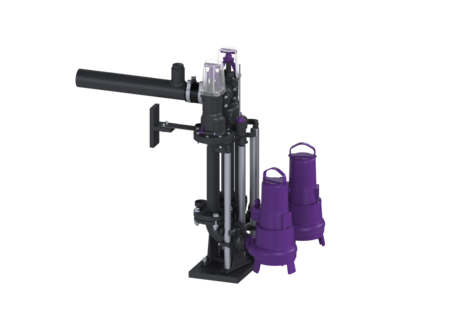

Pump system Aquapump Retrofit

Duo, GTF 2600, Level sensor

8744024
8744024
PDF product data sheet

KESSEL Pump system Aquapump Retrofit Duo, wastewater for wastewater with or without sewage (in installation situations without ATEX requirements), installation in on-site collecting tank, with 2 submersible GTF 2600 pumps, 400 V, pressure pipe connection DN 80, Backflow preventer integrated

    Item no. 8744024
    GTIN 4026092103531
    Price group 60

      Pump system Aquapump Retrofit Duo, GTF 2600, Level sensor
      Twin pump system, for installation in an on-site chamber module. Required minimum diameter of the on-site chamber: 1000 mm Variant Type of system: duo pump Shut-off valve: yes Installation: Wet installation Pump control: Control unit Backflow preventer: integrated Pressure pipe connection: vertical (special version, on request), horizontal (standard version) General characteristics Standard: EN 12050-2 as well as EN 12050-1 (without ATEX requirements) Type of wastewater: for wastewater with or without sewage (in installation situations without ATEX requirements) Installation situation: installation in on-site collecting tank System type: Duo ATEX: no Dimensions Net weight: 133,6 kg Gross weight: 133,6 kg Packaging dimension: length: 1090 mm Packaging dimension: width: 615 mm Packaging dimension: height: 1062 mm Tank/drain body Pressure pipe connection (DN): 80 Pressure pipe connection (OD): 90 mm Pumping device Pump: GTF 2600 Number of pumps: 2 Connection type: coded plug Operating voltage: 400 Mains frequency: 50 Hz Rated current: 4,5 A Length of mains cable for pump: 10 m Protection class: I Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 46 m³/h Max. pumping height: 13,6 m Speed: 2900 U/min Power P1: 2,6 kW Power P2: 2,1 kW Operating mode: S1 Type of pump connection cable: H07RN-F 7G 1.5 mm² Impeller type: Multi-vane impeller Type of fuse required (electrical protection): 3 x C 20 A Control Control unit: Comfort Alarm sensor: Level sensor Level measurement instrument: Level sensor Type of level measurement: hydrostatic Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 400 V Connection type: coded plug Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Type of fuse required (electrical protection): 3 x C 20 A Rated current: 4,5 A
        Title Item no.
        Title Item no.
        Title Item no.
        Title Item no.
      • Control unit (schaltgeraet): Comfort
      • Alarm sensor (alarmgeber): Level sensor
      • Pump (pumpe): GTF 2600
      • Type of wastewater (abwasserart_de): for wastewater with or without sewage (in installation situations without ATEX requirements)
      • Impeller type (laufrad_typ): Multi-vane impeller
