Chamber module LW 1000 floor slab
Access LW 600, 3630-3879 mm, Class D

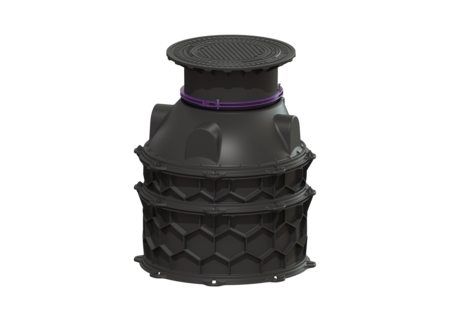

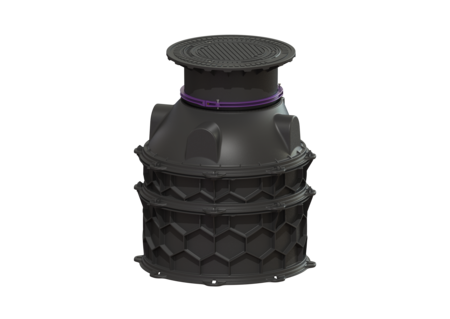

KESSEL Chamber module LW 1000 floor slab, PE-HD, underground installation, installation depth 3630 - 3897 mm, clear width of entry (LW) 600 mm, load class D 400
- For modular assembly with simple connection segments and intermediate sections 250 and 500 mm high
- Innovative honeycomb structure
- Installation in groundwater up to 3000 mm
| Item no. | 8740079 |
|---|---|
| GTIN | 4026092065945 |
| Price group | 60 |
Chamber module LW 1000 floor slab Access LW 600, 3630-3879 mm, Class D
The chamber module for wet or dry installation is equipped with fitted access steps in accordance with DIN EN 13101 and BGR 177, all the necessary seals and connecting wedges as well as a taper with vertically adjustable upper section. The intermediate sections made of permanently resistant polymer (PE) have universal connection possibilities. Thanks to the modular KESSEL system, the design can be flexibly combined with intermediate sections, taper, upper section and cover. Variant Note on installation depth: note maximum installation depth 5000 mm in combination with technical module General characteristics Colour: black Material: PE-HD Standard: EN 13598-2 Installation situation: underground installation Delivery state: Partly for on-site assembly (access steps have been pre-mounted in the factory) Approval: Z-42.1-527 Dimensions Net weight: 306 kg Gross weight: 344,06 kg Groundwater resistant from lower edge of base section: 3000 mm Installation depth: 3630 - 3897 mm Type of height adjustability: vertically adjustable upper section Length: 1200 mm Width: 1200 mm Packaging dimension: length: 2400 mm Packaging dimension: width: 1200 mm Packaging dimension: height: 2200 mm Tank/drain body Inlet max. scoring (DN): 150 mm Clear width of tank (LW): 1000 mm Clear width of entry (LW): 600 mm Coverage features Type of cover: Round cover plate Cover material: Grey iron Colour of cover: black Width of cover: 659 mm Height of cover: 122 mm Length of cover: 659 mm Surface: Grey iron Locking: locked Load class: D 400 (EN 124) Tightness: surface water resistant
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Seal for intermediate section | 680125 | Show |
 | Clamping ring for upper sections d: 600 mm | 680276 | Show |
 | Seal for cover plate, locked | 680323 | Show |
 | Intermediate section 250 mm, for chamber module LW 1000 | 680370 | Show |
 | Intermediate section 500 mm, for chamber module LW 1000 | 680371 | Show |
 | Connecting bolt set Set of 10 | 680373 | Show |
 | Seal for chamber module | 680374 | Show |
 | Access steps for chamber module | 680376 | Show |
 | Chamber taper LW 600 chamber module access | 680431 | Show |
 | Upper section d: 600 mm | 680569 | Show |
 | Seal for pipe penetration, DN 70 | 850116 | Show |
 | Seal for pipe penetration, DN 100 | 850117 | Show |
 | Cover plate | 860136 | Show |
| Manuals | |
|---|---|
| CAD Data | |
| Approval |
- Installation situation (einbausituation):
underground installation
- External monitoring (fremdueberwachung):
SKZ
- Type of cover (abdeckungsart): Round cover plate
- Load class (belastungsklasse): D 400 (EN 124)
- Installation depth (einbautiefe): 3.630 mm
- Gross weight (gewicht_brutto): 344,1 kg
- Surface (oberflaeche): Grey iron
