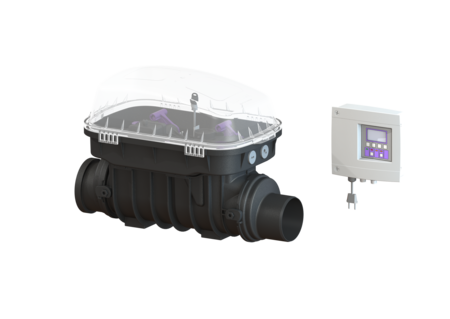

Staufix FKA auto. backwater valve

DN 125, exposed

84125
84125
PDF product data sheet

KESSEL Staufix FKA auto. backwater valve, control unit Comfort, nominal size (DN) 125, wastewater with sewage, locking Clip closure, exposed drainage pipe, type of cover Protective cover

  • Safe, motor-driven closure system with optical probe
  • Fast, simple and toolless maintenance
  • Available as a complete set or module set
Item no. 84125
GTIN 4026092046340
Price group 30

Staufix FKA auto. backwater valve DN 125, exposed
The Premium automatic backwater valve for faecal and faecal-free wastewater is equipped with a motor-driven closure system which is closed automatically in the event of backwater. A second closure system serves as an emergency closure to be closed by hand. The station is controlled by a user-friendly control unit, which is optionally integrated in the building management system via a potential-free contact, or alarm and collective fault messages can be output via a GSM interface. Thanks to the modular KESSEL system, existing systems can easily be converted to a Pumpfix F backwater pumping station. Variant Emergency closure: yes Protection class, probe: IP 68 (3m/48h) Motor-driven backwater flaps: 1 Mechanical backwater flaps: 1 General characteristics Colour: black Standard: EN 13564 Nominal size (DN): 125 Outer diameter (OD): 125 mm Type of wastewater: with sewage Installation situation: exposed drainage pipe Delivery state: installation-ready Backwater protection: Type 3 Motor type: KSM 140 Type de protection moteur: IP 68 (3m/48h) Cable length: 5 m Dimensions Net weight: 12 kg Gross weight: 13,5 kg Vertical drop between inlet and outlet: 9 mm Length: 645 mm Width: 350 mm Height: 422 mm Packaging dimension: length: 644,5 mm Packaging dimension: width: 350 mm Packaging dimension: height: 421,7 mm Tank/drain body Socket version: including spigot and socket Coverage features Type of cover: Protective cover Cover material: Polymer Colour of cover: transparent Width of cover: 350 mm Height of cover: 165 mm Length of cover: 542 mm Locking: Clip closure Control Control unit: Comfort Alarm sensor: optical probe Level measurement instrument: optical probe Type of level measurement: optical Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 230 V Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Connection to the BCS, BAC: yes
  Title Item no.
  Title Item no.
80111 Commissioning Staufix FKA 80111 Show
80117 Maintenance Staufix FKA 80117 Show
  Title Item no.
20162 Remote signal generator 20 m cable, 2x0.75 q 20162 Show
80077 Clearance code for potential-free contact 80077 Show
80097 Pumpfix F conversion kit DN 100-200, fr. 01/2011, exposed 80097 Show
80889 Cable accessories Extension for probe 80889 Show
80890 Cable accessories Extension for motor 80890 Show
80891 Cable accessories Extension for pump 80891 Show
  Title Item no.
680034 Battery 9 V block 680034 Show
680101 Flap holder for motor-driven and mechanical flap 680101 Show
70214 Testing funnel with seal 70214 Show
70318 Seal set for split lockable covers 70318 Show
80016 Lockable cover Staufix FKA Inlet side 80016 Show
80017 Lockable cover Staufix FKA Outlet side 80017 Show
80038 Backwater flap motor-driven, with flap holder 80038 Show
80039 Slide-in flap housing for motorised flap with flap holder 80039 Show
80041 Slide-in flap housing with mechanical flap, flap holder 80041 Show
80071 Comfort control unit 230 V, Staufix FKA 80071 Show
80076 Drive motor plug-in ready, 5 m cable 80076 Show
80888 Spare part set, optical probe 5 m cable 80888 Show
83031 Protective cover transparent 83031 Show
83032 Upper section for attaching a protective cover 83032 Show
83082 Spigot DN 125, with seal 83082 Show
83086 Socket DN 125, with seal 83086 Show
CAD Data
Test Reports and Certificates
Declaration of Performance
Declaration of Conformity
  • Nominal size (DN) (nennweite): 125
  • Control unit (schaltgeraet): Comfort
  • Cover material (abdeckung_material): Polymer
  • Installation situation (einbausituation): exposed drainage pipe
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): with sewage
  • Length (laenge): 645  mm
  • Width (breite): 350  mm
  • Backwater protection (rueckstauschutz): Type 3
