Pumping station Aquapump Medium
Mono, GTF 600-, 1800-2250 mm, D

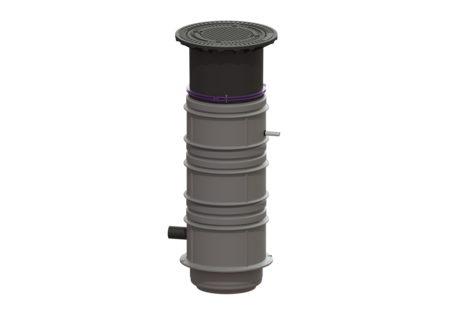

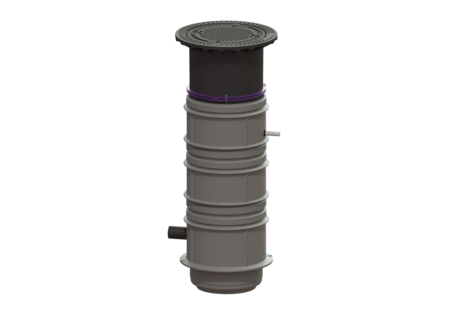

KESSEL Pumping station Aquapump Medium, Mono, wastewater without sewage, load class D 400, installation depth 1800 - 2250 mm, height 50 mm, with a submersible GTF 600 pump, level measurement mechanical
- Maximum safety
- LW 600 chamber system suitable for underground installation
- Preconfigured in the factory
Item no. | 825830D |
---|---|
GTIN | 4026092045305 |
Price group | 60 |
Pumping station Aquapump Medium Mono, GTF 600-, 1800-2250 mm, D
The pumping station without sewage wastewater is equipped with one or two submersible pumps and a backflow preventer. The collection tank is an LW 600 chamber system made of permanently resistant polymer (PE-LLD) with open pump tank and universal connection options. Quick-release closures enable the integrated components to be removed easily. Variant Type of system: Single unit Passage seal for conduit pipe (DN): 100 Passage seal for ventilation pipe (DN): 100 Installation: Wet installation Pump control: Float switch Backflow preventer: integrated Pressure pipe connection: horizontal Chamber system: LW 600 General characteristics Colour: black Standard: EN 12050-2 Type of wastewater: without sewage Installation situation: underground installation Delivery state: Modular set for assembly on site System type: Mono Dimensions Net weight: 161 kg Gross weight: 173 kg Groundwater resistant from lower edge of base section: 2000 mm Installation depth: 1800 - 2250 mm Type of height adjustability: vertically adjustable upper section Length: 806 mm Width: 806 mm Packaging dimension: length: 1200 mm Packaging dimension: width: 800 mm Packaging dimension: height: 2220 mm Tank/drain body Pressure pipe connection (DN): 32 Pressure pipe connection (OD): 40 mm Connection conduit pipe (DN): 100 Venting connection (DN): 100 Distance from centre of outlet pipe to tank bottom: 1394 mm Distance pipe bottom inlet to tank bottom: 400 mm Distance from centre of inlet pipe to tank bottom: 455 mm Inlet nominal size (OD): 110 mm Inlet nominal size (DN): 100 mm Number of inlets: 1 Clear width of tank (LW): 600 mm Clear width of entry (LW): 600 mm Coverage features Type of cover: Round cover plate Cover material: Grey iron with concrete filling Colour of cover: black Width of cover: 680 mm Height of cover: 50 mm Length of cover: 680 mm Locking: unlocked Load class: D 400 (EN 124) Pumping device Pump: GTF 600 Number of pumps: 1 Weight, pump: 6 kg Connection type: Schuko (earthed contact) 2-pin Rated current: 2,7 A Protection class: I Insulation class: F Cos phi - power factor: 0,91 Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 12 m³/h Max. pumping height: 8 m Speed: 2800 U/min Power P1: 0,6 kW Power P2: 0,36 kW Operating mode: S1 Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Length of mains cable for pump: 10 m Control Level measurement instrument: Float switch Type of level measurement: mechanical Mains frequency: 50 Hz Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin Length of mains cable for control unit: 1,4 m Type of fuse required (electrical protection): C 16 A
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. | ||
---|---|---|---|
One-handed closure for backflow preventer | 680018 | Show | |
Cover plate Class D, grey cast iron | 680059 | Show | |
Seal for pressure pipe connection | 680067 | Show | |
Clamping ring for upper sections d: 600 mm | 680276 | Show | |
Riser 1800-2250 mm, from 02/2016 | 680451 | Show | |
Backflow preventer with non-return flap | 680457 | Show | |
Pump connection for pumping stations, from 01/2016 | 680476 | Show | |
Pump connection Mono, suitable for pumping stations | 680479 | Show | |
Seal set Non-return flap, seals | 680490 | Show | |
One-handed closure for threaded connection | 680698 | Show | |
Screw set for intake cage, GTF 500 | 680769 | Show | |
Replacement pump GTF 600 with float switch | 680880 | Show | |
Impeller GTF 600, free passage 30 mm | 680887 | Show | |
Spiral housing GTF 600, free passage 30 mm | 680888 | Show | |
Pump stand GTF 600, free passage 30 mm | 680889 | Show | |
Seal for pipe penetration, DN 100 | 850117 | Show | |
Seal for upper sections d: 600 mm | 860116 | Show |
Manuals | |
---|---|
CAD Data | |
Test Reports and Certificates | |
Declaration of Performance | |
Declaration of Conformity |
- CE marking (ce_kennzeichnung): yes
- Type of wastewater (abwasserart_de): without sewage
- TÜV test mark (pruefzeichen): ID 1111241937
- Installation situation (einbausituation): underground installation
- Load class (belastungsklasse): D 400 (EN 124)
- Pump (pumpe): GTF 600
- Installation depth (einbautiefe): 1.800 mm
- Impeller type (laufrad_typ): Multi-vane impeller
- (schaltgeraet):
- Inlet nominal size (DN) (zulauf_nennweite_dn): 100 mm
