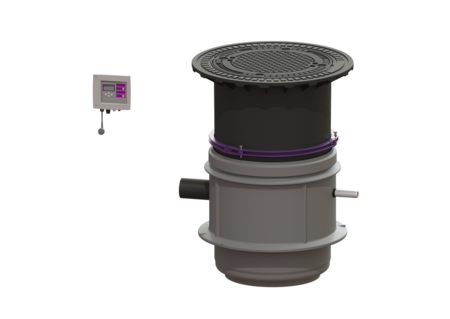

Pumping station Aquapump Medium

Tronic, GTF 600, 800-1200 mm, B

825811B
825811B
PDF product data sheet

KESSEL Pumping station Aquapump Medium, Tronic, wastewater without sewage, load class B 125, installation depth 800 - 1250 mm, height 103 mm, with a submersible GTF 600 pump, level measurement pneumatic

  • Maximum safety
  • LW 600 chamber system suitable for underground installation
  • Preconfigured in the factory
Item no. 825811B
GTIN 4026092045237
Price group 60

Pumping station Aquapump Medium Tronic, GTF 600, 800-1200 mm, B
The pumping station without sewage wastewater is equipped with one or two submersible pumps and a backflow preventer. The collection tank is an LW 600 chamber system made of permanently resistant polymer (PE-LLD) with open pump tank and universal connection options. Quick-release closures enable the integrated components to be removed easily. Variant Type of system: Single unit Passage seal for conduit pipe (DN): 100 Passage seal for ventilation pipe (DN): 100 Installation: Wet installation Pump control: Control unit Backflow preventer: integrated Pressure pipe connection: horizontal Chamber system: LW 600 General characteristics Colour: black Standard: EN 12050-2 Type of wastewater: without sewage Installation situation: underground installation Delivery state: Modular set for assembly on site System type: Tronic ATEX: no Dimensions Net weight: 111 kg Gross weight: 118 kg Groundwater resistant from lower edge of base section: 2000 mm Installation depth: 800 - 1250 mm Type of height adjustability: vertically adjustable upper section Length: 810 mm Width: 810 mm Packaging dimension: length: 1200 mm Packaging dimension: width: 800 mm Packaging dimension: height: 1220 mm Tank/drain body Pressure pipe connection (DN): 32 Pressure pipe connection (OD): 40 mm Connection conduit pipe (DN): 100 Venting connection (DN): 100 Distance from centre of outlet pipe to tank bottom: 482 mm Distance pipe bottom inlet to tank bottom: 400 mm Distance from centre of inlet pipe to tank bottom: 455 mm Inlet nominal size (OD): 110 mm Inlet nominal size (DN): 100 mm Number of inlets: 1 Clear width of tank (LW): 600 mm Clear width of entry (LW): 600 mm Coverage features Type of cover: Round cover plate Cover material: Grey iron Colour of cover: black Width of cover: 648 mm Height of cover: 103 mm Length of cover: 648 mm Locking: unlocked Load class: B 125 (EN 124) Pumping device Pump: GTF 600 Number of pumps: 1 Weight, pump: 6 kg Connection type: coded plug Rated current: 2,7 A Protection class: I Insulation class: F Cos phi - power factor: 0,91 Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 12 m³/h Max. pumping height: 8 m Speed: 2800 U/min Power P1: 0,6 kW Power P2: 0,36 kW Operating mode: S1 Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Length of mains cable for pump: 10 m Control Control unit: Comfort Alarm sensor: optical probe Level measurement instrument: Submersible pressure switch Type of level measurement: pneumatic Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 230 V Connection type: coded plug Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes
  Title Item no.
  Title Item no.
  Title Item no.
20222 Basic alarm unit with electronic probe 20222 Show
20223 Basic alarm unit with optical probe 20223 Show
28048 Compressor set for air bubbling 28048 Show
28792 TeleControl GSM modem for Comfort control units 230V/400V 28792 Show
28799 Connection box for level sensor extension 28799 Show
80888 Spare part set, optical probe 5 m cable 80888 Show
80889 Cable accessories Extension for probe 80889 Show
80891 Cable accessories Extension for pump 80891 Show
97713 Installation set Thermostat, Hygrostat 97713 Show
97714 Outdoor Cabinet W: 590 mm,for installation control units 97714 Show
97715 Warning beacon for outdoor cabinet 97715 Show
97716 Outdoor Cabinet W: 460 mm, for installation control unit 97716 Show
Outdoor cabinet W: 785 mm,for installation control units 97723 Show
97724 Outdoor Cabinet W: 1115mm,for installation control units 97724 Show
  Title Item no.
28706 Splash guard set for optical probe 28706 Show
28731 Control unit Comfort Mono, 230 V 28731 Show
680018 One-handed closure for backflow preventer 680018 Show
680034 Battery 9 V block 680034 Show
680067 Seal for pressure pipe connection 680067 Show
680071 Pressure hose Sold by the metre, 6x4 mm 100 680071 Show
680108 Submersible pressure switch without hose 680108 Show
680276 Clamping ring for upper sections d: 600 mm 680276 Show
680449 Riser 800-1250 mm, from 02/2016 680449 Show
680457 Backflow preventer with non-return flap 680457 Show
680476 Pump connection for pumping stations, from 01/2016 680476 Show
680479 Pump connection Mono, suitable for pumping stations 680479 Show
680490 Seal set Non-return flap, seals 680490 Show
680698 One-handed closure for threaded connection 680698 Show
680729 Sensor clamp for level sensor & subm. press. switch 680729 Show
Screw set for intake cage, GTF 500 680769 Show
680881 Replacement pump GTF 600 without float switch 680881 Show
680887 Impeller GTF 600, free passage 30 mm 680887 Show
680888 Spiral housing GTF 600, free passage 30 mm 680888 Show
680889 Pump stand GTF 600, free passage 30 mm 680889 Show
80892 Adapter Set optical probe 80892 Show
80988 Spare part set, optical probe 15 m cable 80988 Show
850117 Seal for pipe penetration, DN 100 850117 Show
860116 Seal for upper sections d: 600 mm 860116 Show
860131 Cover plate Class B, grey iron with concrete filling 860131 Show
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): without sewage
  • Control unit (schaltgeraet): Comfort
  • TÜV test mark (pruefzeichen): ID 1111241937
  • Installation situation (einbausituation): underground installation
  • Load class (belastungsklasse): B 125 (EN 124)
  • Pump (pumpe): GTF 600
  • Installation depth (einbautiefe): 800  mm
  • Impeller type (laufrad_typ): Multi-vane impeller
  • Inlet nominal size (DN) (zulauf_nennweite_dn): 100  mm
