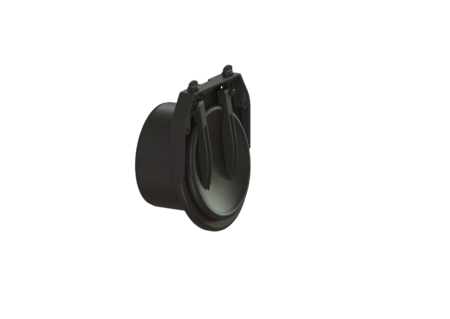

Pipe flap valve

DN 300

79300
79300
PDF product data sheet

KESSEL Pipe flap valve, nominal size (DN) 300, wastewater without sewage, outside diameter (OD) 318 mm, exposed drainage pipe

  • For universal use in salt and fresh water environments
  • Low weight for simple installation with high mechanical strength
  • High tightness: seals airtight even with low counter-pressure
Item no. 79300
GTIN 4026092011652
Price group 10

    Pipe flap valve DN 300
    The pipe flap valve serves as an end piece and has a mechanical flap which closes automatically. Variant Mechanical backwater flaps: 1 General characteristics Colour: black Material: Polymer Nominal size (DN): 300 Outer diameter (OD): 318 mm Type of wastewater: without sewage Installation situation: exposed drainage pipe Delivery state: installation-ready Dimensions Net weight: 5,74 kg Gross weight: 8,16 kg Length: 225 mm Width: 400 mm Height: 450 mm Packaging dimension: length: 490 mm Packaging dimension: width: 275 mm Packaging dimension: height: 495 mm
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Nominal size (DN) (nennweite): 300
    • Material (material): Polymer
    • Installation situation (einbausituation): exposed drainage pipe
    • Type of wastewater (abwasserart_de): without sewage
    • Length (laenge): 225  mm
    • Width (breite): 400  mm
    • Mechanical backwater flaps (mechanische_rueckstauklappen): 1
