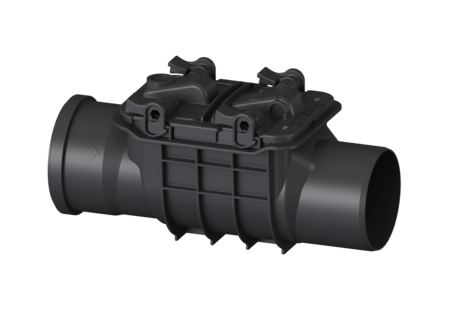

Backwater valve Staufix Basic

DN 100, Type 0, w/o emergency closure

71100

KESSEL Backwater valve Staufix Basic, backwater protection Type 0, nominal size (DN) 100, wastewater Rainwater, exposed drainage pipe, a mechanical backwater flap, outside diameter (OD) 110 mm, cover locking Quick-release closure

  • Simple conversion possible using conversion kits
  • Fast and toolless maintenance and cleaning
  • Ideal for modernisation, can also be installed in existing pipes later
Item no. 71100
GTIN 4026092002315
Price group 10

Backwater valve Staufix Basic DN 100, Type 0, w/o emergency closure
The backwater valve for rainwater is equipped with a mechanical flap which closes automatically in the event of backwater. Thanks to the modular KESSEL system, existing systems can easily be supplemented by a second backwater flap or an emergency closure. Variant Mechanical backwater flaps: 1 General characteristics Colour: black Standard: EN 13564 Nominal size (DN): 100 Outer diameter (OD): 110 mm Type of wastewater: Rainwater Installation situation: exposed drainage pipe Delivery state: installation-ready Backwater protection: Type 0 Dimensions Net weight: 0,99 kg Gross weight: 1,18 kg Vertical drop between inlet and outlet: 9 mm Length: 355 mm Width: 155 mm Height: 170 mm Packaging dimension: length: 210 mm Packaging dimension: width: 164 mm Packaging dimension: height: 365 mm Coverage features Cover locking: Quick-release closure
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
70231 Backwater flap DN 100 70231 Show
70233 Backwater flap DN 100, with stainless steel attachment 70233 Show
70251 Lockable cover Staufix DN 100 70251 Show
Manuals
Test Reports and Certificates
Declaration of Performance
  • Nominal size (DN) (nennweite): 100
  • TÜV test mark (pruefzeichen): ID 1111242698
  • Installation situation (einbausituation): exposed drainage pipe
  • CE marking (ce_kennzeichnung): yes
  • Backwater protection (rueckstauschutz): Type 0
  • Mechanical backwater flaps (mechanische_rueckstauklappen): 1
  • (notverschluss):
