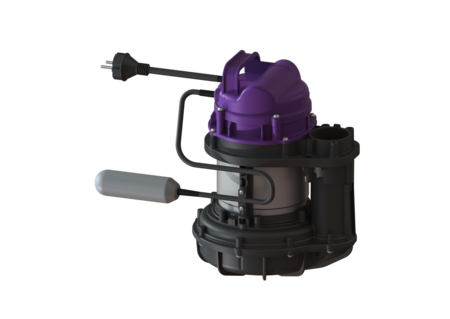

Replacement pump GTF 1250
w. float switch, Aqualift S 100/200, 5m
Replacement pump with float switch for faecal-free wastewater.
| Item no. | 680978 |
|---|---|
| GTIN | 4026092095911 |
| Price group | 90 |
Replacement pump GTF 1250 w. float switch, Aqualift S 100/200, 5m
Replacement pump with float switch for faecal-free wastewater. Variant Pump control: Float switch General characteristics Type of wastewater: without sewage Dimensions Net weight: 10,5 kg Gross weight: 10,5 kg Packaging dimension: length: 379 mm Packaging dimension: width: 326 mm Packaging dimension: height: 293 mm Pumping device Pump: GTF 1250 Connection type: Schuko (earthed contact) 2-pin Operating voltage: 230 V Mains frequency: 50 Hz Rated current: 5,4 A Protection class (pump): IP 68 (3m) Max. temperature (permanent) of conveyed material: 40 °C Max. pumping height: 11 m Speed: 2700 U/min Power P1: 1,3 kW Power P2: 0,8 kW Operating mode: S3 - 50 % Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Length of mains cable for pump: 5 m Control Connection type: Schuko (earthed contact) 2-pin Type of fuse required (electrical protection): C 16 A
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
- Type of wastewater (abwasserart_de):
without sewage
