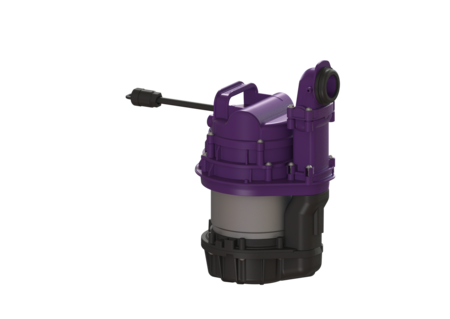

Replacement pump SPZ 1000
resistant
Replacement pump resistant to salty media, wastewater from water softening systems and wastewater containing condensate from heating systems.
| Item no. | 680951 |
|---|---|
| GTIN | 4026092093788 |
| Price group | 90 |
Replacement pump SPZ 1000 resistant
Replacement pump resistant to salty media, wastewater from water softening systems and wastewater containing condensate from heating systems. General characteristics ATEX: no Dimensions Net weight: 9,67 kg Gross weight: 10,37 kg Packaging dimension: length: 379 mm Packaging dimension: width: 326 mm Packaging dimension: height: 293 mm Pumping device Pump: SPZ 1000 Connection type: coded plug Operating voltage: 230 V Mains frequency: 50 Hz Rated current: 5,2 A Protection class: I Protection class (pump): IP 68 (3m/48h) Max. temperature (permanent) of conveyed material: 35 °C Max. pumping height: 10 m Speed: 2800 U/min Power P1: 1,2 kW Power P2: 0,7 kW Operating mode: S3 - 50 % Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Length of mains cable for pump: 5 m Control Connection type: coded plug Type of fuse required (electrical protection): C 16 A
