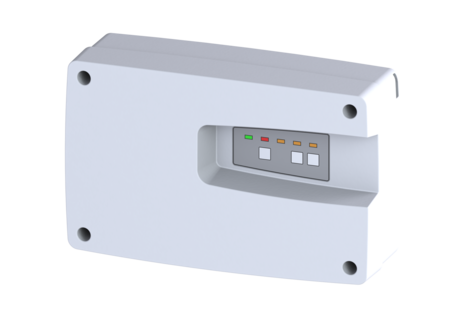

Control unit Connect
Duo, 230 V
Control unit with optical and acoustic alarm indication
| Item no. | 680818 |
|---|---|
| GTIN | 4026092085271 |
| Price group | 90 |
Control unit Connect Duo, 230 V
Control unit with optical and acoustic alarm indication Dimensions Net weight: 1,14 kg Gross weight: 1,14 kg Packaging dimension: length: 150 mm Packaging dimension: width: 145 mm Packaging dimension: height: 61 mm Pumping device Connection type: coded plug Protection class (pump): IP 68 (3m) Control Control unit: Connect Alarm sensor: Float switch Type of level measurement: mechanical Protection class control unit: IP 54 Connection type: coded plug Length of mains cable for control unit: 1 m Potential-free contact: optional Log book function: yes Battery buffering: yes Self-diagnosis system (SDS): yes
