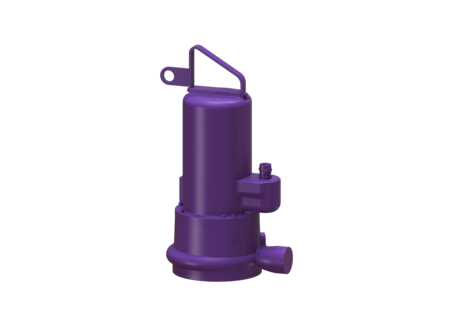

Replacem. pump Aquadive STZ 3700
without float switch, 10 m, ATEX

Replacement pump, Aquadive, STZ 3700, ATEX, without floater, for pumping station, wet installation
Item no. | 680606 |
---|---|
GTIN | 4026092078501 |
Price group | 90 |
Replacem. pump Aquadive STZ 3700 without float switch, 10 m, ATEX
Replacement pump, Aquadive, STZ 3700, ATEX, without floater, for pumping station, wet installation Variant Pump control: Control unit General characteristics Cable length: 10 m Dimensions Net weight: 43 kg Gross weight: 46 kg Packaging dimension: length: 260 mm Packaging dimension: width: 370 mm Packaging dimension: height: 610 mm Pumping device Pump: STZ 3700 Weight, pump: 44 kg Connection type: Direct connection Operating voltage: 400 V Mains frequency: 50 Hz Protection class: I Insulation class: H Cos phi - power factor: 0,82 Protection class (pump): IP 68 Temperature monitoring: controlled via control unit Max. temperature (permanent) of conveyed material: 40 °C Max. pumping height: 35 m Speed: 2900 U/min Power P1: 3,7 kW Power P2: 3,1 kW Operating mode: S1 Type of pump connection cable: H07RN8-F 6G 1.5 mm² Impeller type: Macerator Length of mains cable for pump: 10 m Rated current: 6,4 A Control Operating voltage: 400 V Connection type: Direct connection Type of fuse required (electrical protection): Fuse protection through control unit 400 V
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. | ||
---|---|---|---|
![]() | Replacement chain pumping statio. Stainless steel, length 2 m | 680528 | Show |
![]() | Replacement chain pumping statio. Stainless steel, length 3 m | 680529 | Show |
![]() | Replacement chain for pump statns Stainless steel, length 4 m | 680530 | Show |
![]() | Replacement chain, pumping stat. Stainless steel, length 5 m | 680531 | Show |
Title | Item no. |
---|
Manuals | |
---|---|
Test Reports and Certificates |
- ATEX (atex):
yes
