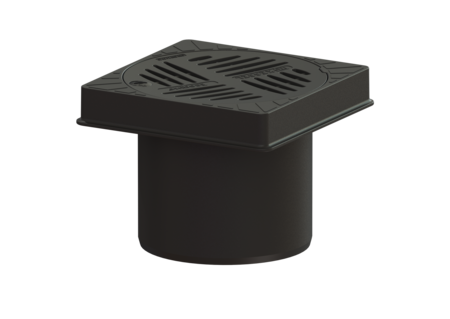

Upper section
Class B, Round slotted grating, d:230 mm
The telescopic height-adjustable upper section made of Ecoguss. The recyclable composite material meets the highest sound insulation requirements, is resistant to aggressive media, temperature resistant and has a permanently corrosion-free surface. It can be exposed to flames for short periods, 100 up to 400 degrees Celsius.
| Item no. | 67985 |
|---|---|
| GTIN | 4026092038949 |
| Price group | 10 |
Upper section Class B, Round slotted grating, d:230 mm
The telescopic height-adjustable upper section made of Ecoguss. The recyclable composite material meets the highest sound insulation requirements, is resistant to aggressive media, temperature resistant and has a permanently corrosion-free surface. It can be exposed to flames for short periods, 100 up to 400 degrees Celsius. Variant System: 200 General characteristics Colour: black Standard: EN 1253 ATEX: no Dimensions Net weight: 2,98 kg Gross weight: 3,35 kg Diameter: 230 mm Packaging dimension: length: 340 mm Packaging dimension: width: 340 mm Packaging dimension: height: 215 mm Coverage features Type of cover: Round slotted cover Cover material: Ecoguss Colour of cover: black Width of cover: 258 mm Height of cover: 198 mm Length of cover: 258 mm Locking: Lock & Lift Load class: L 15 / M 125 (EN 1253-1) Upper section material: Ecoguss
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Manuals | |
|---|---|
| CAD Data |
- Cover material (abdeckung_material):
Ecoguss
- Upper section material (material_aufsatzstueck):
Ecoguss
- (nennweite):
- Type of cover (abdeckungsart): Round slotted cover
- Load class (belastungsklasse): L 15 / M 125 (EN 1253-1)
- (stutzen_ausfuehrung):
