Gutter drain

DN 100, horizontal, frost-free depth

67970
PDF product data sheet

KESSEL Gutter drain, System 200, nominal size (DN) 100, load class K 3, outside diameter (OD) 110 mm, discharge rate (l/s) 2,8, outlet horizontal, socket lateral, shape of upper section round, volume 62,57 dm³

  • The variable solution for connecting to the sewer
Item no. 67970
GTIN 4026092001882
Price group 10

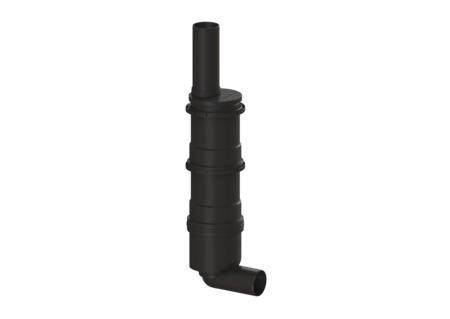

    Gutter drain DN 100, horizontal, frost-free depth
    The polymer gutter drain is equipped with a sludge bucket, a rain inlet cover, a protective pipe and a wall fastening. Variant System: 200 Contents of sludge trap: yes Discharge rate (l/s) with 20 mm backwater: 2,8 Outlet: horizontal General characteristics Standard: EN 752 Nominal size (DN): 100 Outer diameter (OD): 110 mm Outlet: horizontal ATEX: no Odour trap: included Dimensions Net weight: 4,48 kg Gross weight: 5,34 kg Diameter: 235 mm Length: 320 mm Width: 245 mm Height: 1060 mm Packaging dimension: length: 790 mm Packaging dimension: width: 330 mm Packaging dimension: height: 240 mm Tank/drain body Number of outlets: 1 Material of drain body: Polymer Socket version: lateral Coverage features Type of cover: Rain drain cover Cover material: Polymer Colour of cover: black Surface: EDM Load class: K 3 (EN 1253-1) Shape of upper section: round Contents of sludge trap: yes
      Title Item no.
      Title Item no.
      Title Item no.
    27170 Odour trap Yard/gutter drain, Seal. water he. 70 mm 27170 Show
    67400 Extension section Polymer, 40 - 150 mm 67400 Show
    67500 Extension section System 200, Polymer 67500 Show
    67600 Extension section System 200, Side inlet DN 100 67600 Show
    850144 Lifting tool for System 200 odour trap 850144 Show
      Title Item no.
    27171 Odour trap Gutter drains, seal. water height 100 mm 27171 Show
    67000 Drain body, yard/gutter drain DN 100, Horizontal outlet 67000 Show
    67300 Sludge bucket System 200, PE-HD 67300 Show
    67500 Extension section System 200, Polymer 67500 Show
    67750 Upper section, gutter drain Protective pipe DN 100, closed cover 67750 Show
    67800 Wall mounting Polymer, for gutter drains 67800 Show
    • Nominal size (DN) (nennweite): 100
    • Material of drain body (material_grundkoerper): Polymer
    • Cover material (abdeckung_material): Polymer
    • Socket version (stutzen_ausfuehrung): lateral
    • Type of cover (abdeckungsart): Rain drain cover
    • Odour trap (geruchsverschluss): included
    • Contents of sludge trap (schlammeimer): yes
