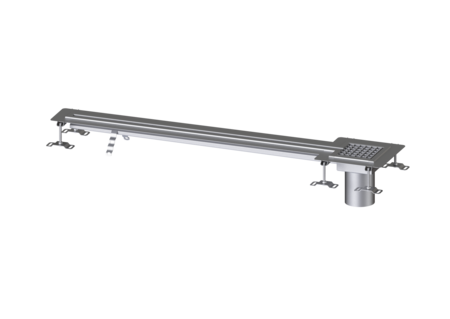

Slotted Channel Ferrofix
glued flange H: 6mm, 17x1400mm, outer
KESSEL Slotted Channel Ferrofix, nominal size (DN) 125, Glued flange height 6 mm, length 1400 mm, type of cover Slotted cover, position of inlet outside, outside diameter (OD) 125 mm
- Made of particularly a hygienic and mechanically highly resistant stainless steel
- Variably combinable with suitable drain bodies
| Item no. | 6202141 |
|---|---|
| GTIN | 4026092099612 |
| Price group | 80 |
Slotted Channel Ferrofix glued flange H: 6mm, 17x1400mm, outer
The Ferrofix slotted channel made of stainless steel with a material thickness of 1.5 mm (pickled in the immersion bath) is equipped with ground crosspieces, longitudinal and transverse gradients, feet for height adjustment and stainless steel outlet nozzles. The channel profile is suitable for thin-layered floorings (e.g. epoxy resin) and has an all-round adhesive rim (6 mm deep and 50 mm folded outwards) with welded mitres. The glued flange is also suitable for connecting waterproofing. Variant Waterproofing layer on the upper section: Adhesive flange (suitable for moisture barriers) Position of sink trap: outside Glued flange height: 6 mm General characteristics Material: Stainless steel 14301 Nominal size (DN): 125 Outer diameter (OD): 125 mm Glued flange height: 6 mm ATEX: no Dimensions Length: 1400 mm Width: 17 mm Height: 75 mm Coverage features Type of cover: Slotted cover Colour of cover: silver Width of cover: 200 mm Length of cover: 200 mm Locking: placed Load class: L 15 (EN 1253-1) Slip resistance class: R12 according to DIN 51130; C according to DIN 51097 Slot width: 17 mm
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
- Nominal size (DN) (nennweite):
125
- Material (material):
Stainless steel 14301
- Length (laenge): 1.400 mm
- Width (breite): 17 mm
- Load class (belastungsklasse): L 15 (EN 1253-1)
