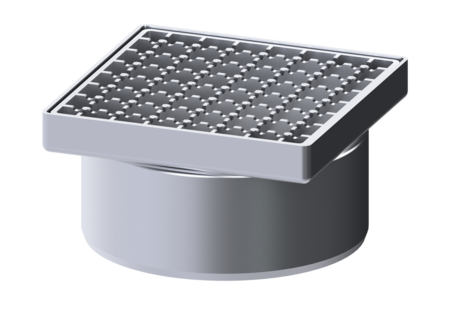

Ferrofix upper section

Sys200, slot grat, 304SST, 200 x 200 mm

57410
PDF product data sheet

KESSEL Ferrofix upper section, height 110 mm, type of cover Slotted cover, locking unscrewed

  • Made of a particularly hygienic and mechanically highly resistant stainless steel
  • Multiple combinations with suitable drain bodies.
Item no. 57410
GTIN 4026092004890
Price group 70

    Ferrofix upper section Sys200, slot grat, 304SST, 200 x 200 mm
    Used in combination with a drain body of the KESSEL modular system 200, the stainless steel upper section is suitable for indoor point drainage. Variant System: 200 General characteristics ATEX: no Dimensions Net weight: 3,37 kg Gross weight: 3,52 kg Length: 200 mm Width: 200 mm Height: 110 mm Packaging dimension: length: 247 mm Packaging dimension: width: 247 mm Packaging dimension: height: 180 mm Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Width of cover: 190 mm Height of cover: 30 mm Length of cover: 190 mm Surface: pickled Locking: unscrewed Load class: M 125 (EN 1253-1) Upper section material: Stainless steel 14301 Mesh size: 23 x 23 mm
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    • Cover material (abdeckung_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): Stainless steel 14301
