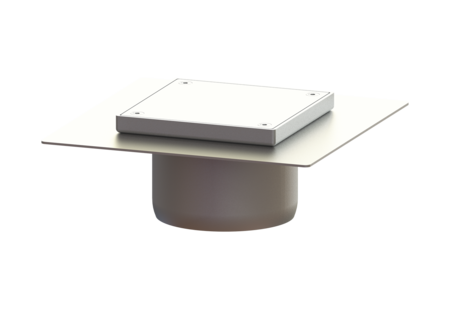

Upper section System 125 stainl. steel
KESSEL, surface Polished SST, length 146 mm, width 146 mm, waterproofing layer upper section by Adhesive flange (suitable for moisture barriers), type of cover closed cover plate, Cover Stainless steel 14301, locking screwed
| Item no. | 54913 |
|---|---|
| GTIN | 4026092072417 |
| Price group | 70 |
Variant System: 125 Waterproofing layer on the upper section: Adhesive flange (suitable for moisture barriers) Dimensions Net weight: 2,89 kg Gross weight: 3,05 kg Length: 246 mm Width: 246 mm Height: 100 mm Packaging dimension: length: 280 mm Packaging dimension: width: 280 mm Packaging dimension: height: 260 mm Coverage features Type of cover: closed cover plate Cover material: Stainless steel 14301 Height of cover: 15 mm Surface: Polished SST Locking: screwed Load class: L 15 (EN 1253-1) Tightness: odour-tight Rim width: 146 mm Rim length: 146 mm Shape of upper section: square Upper section material: Stainless steel 14301
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Manuals | |
|---|---|
| CAD Data |
- Cover material (abdeckung_material):
Stainless steel 14301
- Upper section material (material_aufsatzstueck):
Stainless steel 14301
- Type of cover (abdeckungsart): closed cover plate
- Load class (belastungsklasse): L 15 (EN 1253-1)
- Locking (verriegelung): screwed
- Waterproofing layer on the upper section (abdichtung_aufsatzstueck): Adhesive flange (suitable for moisture barriers)
