Upper section System 125 stainl. steel

54912
54912
PDF product data sheet

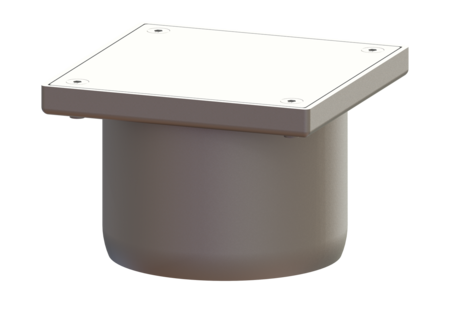

KESSEL, surface, length 150 mm, width 150 mm, type of cover closed cover plate, Cover Stainless steel 14301

Item no. 54912
GTIN 4026092072400
Price group 70

    Variant System: 125 Waterproofing layer on the upper section: Adhesive flange (suitable for moisture barriers) Dimensions Net weight: 2,15 kg Gross weight: 2,25 kg Length: 146 mm Width: 146 mm Height: 100 mm Packaging dimension: length: 215 mm Packaging dimension: width: 190 mm Packaging dimension: height: 120 mm Coverage features Type of cover: closed cover plate Cover material: Stainless steel 14301 Height of cover: 17 mm Locking: screwed Load class: L 15 (EN 1253-1) Tightness: odour-tight Rim width: 150 mm Rim length: 150 mm Upper section material: Stainless steel 14301
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    680477 Cover opaque, V2A, 150x150 mm, L 15 680477 Show
    CAD Data
    • Cover material (abdeckung_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): Stainless steel 14301
    • Type of cover (abdeckungsart): closed cover plate
    • Load class (belastungsklasse): L 15 (EN 1253-1)
    • Locking (verriegelung): screwed
    • Waterproofing layer on the upper section (abdichtung_aufsatzstueck): Adhesive flange (suitable for moisture barriers)
