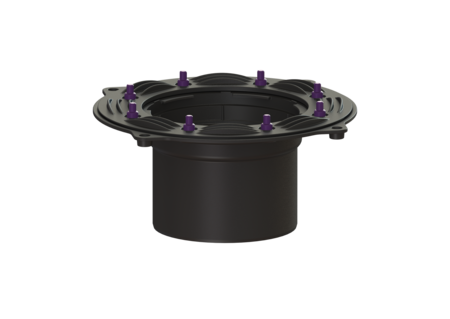

Extension section
Pressure sealing flange, Mating flange
System 200 Ecoguss extension section with pressure sealing flange and mating flange, including lip seal, permanently corrosion-free surface, temperature resistant up to 400°C (for short period), equipotential bonding is not required. Extension section with bolts and screws made of stainless steel, for pressing in or welding on bitumen and polymer bitumen sheets as well as pressing in polymer and elastomer membranes.
| Item no. | 48958 |
|---|---|
| GTIN | 4026092004944 |
| Price group | 10 |
Extension section Pressure sealing flange, Mating flange
System 200 Ecoguss extension section with pressure sealing flange and mating flange, including lip seal, permanently corrosion-free surface, temperature resistant up to 400°C (for short period), equipotential bonding is not required. Extension section with bolts and screws made of stainless steel, for pressing in or welding on bitumen and polymer bitumen sheets as well as pressing in polymer and elastomer membranes. Variant System: 200 General characteristics Material: Ecoguss ATEX: no Dimensions Net weight: 2,58 kg Gross weight: 2,96 kg Diameter: 365 mm Packaging dimension: length: 360 mm Packaging dimension: width: 360 mm Packaging dimension: height: 250 mm
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| CAD Data |
|---|
- Material (material):
Ecoguss
