Upper section

Slot cover, 304 SST, 150 x 150 mm, K3

48950
48950
PDF product data sheet

KESSEL Upper section, volume 5,7 dm³, length 150 mm, width 150 mm, type of cover Slotted cover, locking screwed, design cover, Cover Stainless steel 14301

  • Multiple combinations with suitable drain bodies
Item no. 48950
GTIN 4026092004616
Price group 10

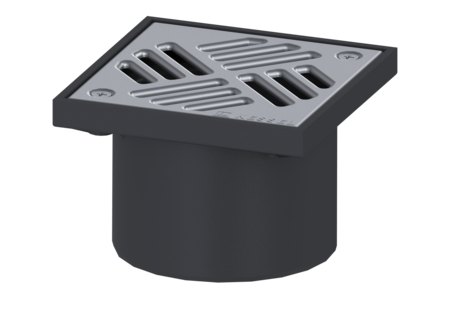

    Upper section Slot cover, 304 SST, 150 x 150 mm, K3
    Used in combination with a drain body of the KESSEL modular system, the upper section is suitable for indoor point drainage. Variant System: 125 General characteristics ATEX: no Dimensions Net weight: 0,49 kg Gross weight: 0,56 kg Height: 100 mm Packaging dimension: length: 218 mm Packaging dimension: width: 218 mm Packaging dimension: height: 120 mm Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Colour of cover: silver Height of cover: 16 mm Surface: Polished SST Frame material: ABS Locking: screwed Load class: K 3 (EN 1253-1) Rim width: 150 mm Rim length: 150 mm Shape of upper section: square Upper section material: ABS
      Title Item no.
      Title Item no.
      Title Item no.
      Title Item no.
    27154 Slotted cover 138x138 mm, SST 27154 Show
    27155 Slotted cover 138x138 mm, screwed 27155 Show
    CAD Data
    • Cover material (abdeckung_material): Stainless steel 14301
    • Frame material (rahmen_material): ABS
    • Upper section material (material_aufsatzstueck): ABS
